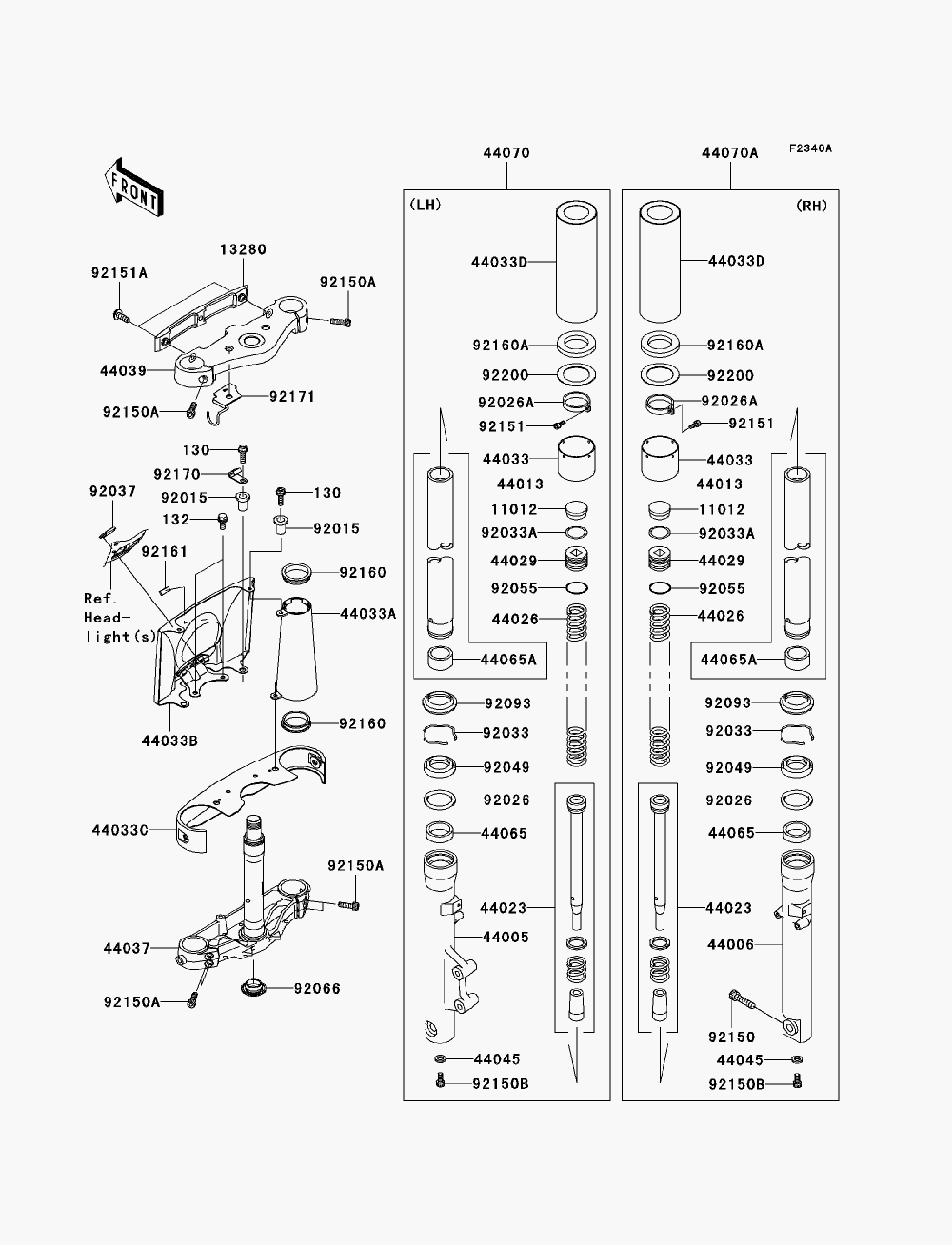

FRONT FORK для Kawasaki VULCAN 1500 CLASSIC (VN1500N8F) - 2008 года выпуска
-
№АртикулНазвание
-
1101211012-1618 CAP, FORK TOPCAP, FORK TOP
-
1328013280-1161 HOLDER, UPPER BRACKETHOLDER, UPPER BRACKET
-
4400544005-1366 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-1365 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-1462 PIPE-FORK INNERPIPE-FORK INNER
-
4402344023-1129 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-1717 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-1125 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403344033-1223 COVER-FORKCOVER-FORK
-
44033A44033-1229 COVER-FORK, UPPCOVER-FORK, UPP
-
44033B44033-1255 COVER-FORK, CNTCOVER-FORK, CNT
-
44033C44033-1257 COVER-FORK, LWRCOVER-FORK, LWR
-
44033D44033-1261 COVER-FORKCOVER-FORK
-
4403744037-1411 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-1305 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1079 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
44065A44065-1087 BUSHING-FRONT FORK, INNER PIPEBUSHING-FRONT FORK, INNER PIPE
-
4407044070-1829 DAMPER-ASSY, FORK, LEFT HANDDAMPER-ASSY, FORK, LEFT HAND
-
44070A44070-1830 DAMPER-ASSY, FORK, RIGHT HANDDAMPER-ASSY, FORK, RIGHT HAND
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202692026-1276 SPACER, FORK OUTERSPACER, FORK OUTER
-
92026A92026-1515 SPACERSPACER
-
9203392033-1222 RING-SNAPRING-SNAP
-
92033A92033-1223 RING-SNAP, SPRING SEATRING-SNAP, SPRING SEAT
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204992049-1363 SEAL-OIL, FORKSEAL-OIL, FORK
-
9205592055-1363 RING-O, SPRING SEATRING-O, SPRING SEAT
-
9206692066-0032 PLUGPLUG
-
9209392093-1268 SEAL, FORKSEAL, FORK
-
9215092150-1029 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
92150A92150-1031 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92150B92150-1432 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
9215192151-1356 BOLT, SOCKET, 4X16BOLT, SOCKET, 4X16
-
92151A92151-1753 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216092160-1892 DAMPERDAMPER
-
92160A92160-1927 DAMPERDAMPER
-
9216192161-1177 DAMPERDAMPER
-
9217092170-1900 CLAMP, HARNESSCLAMP, HARNESS
-
9217192171-1353 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
130130J0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
132132E0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
9220092200-1417 WASHERWASHER
