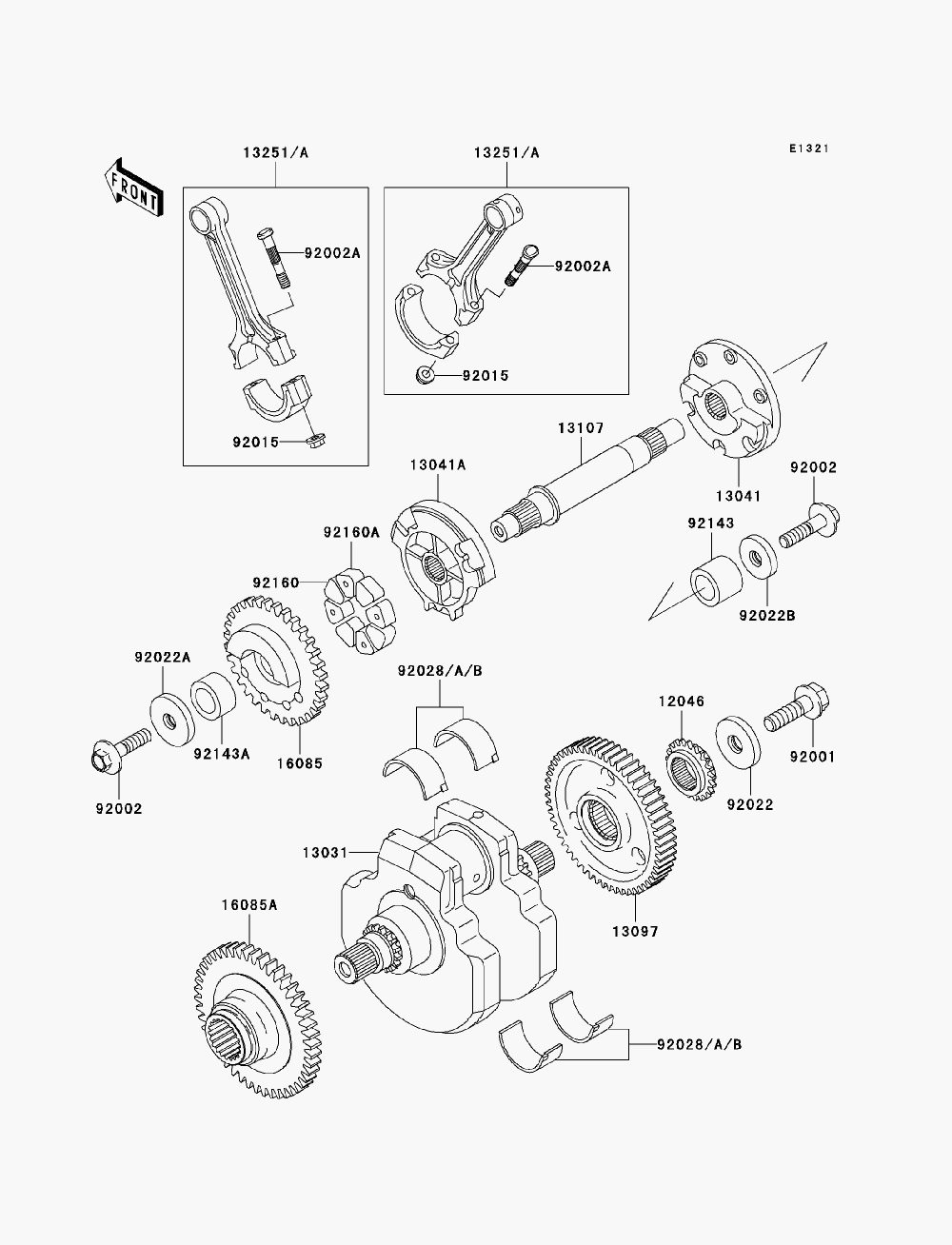

CRANKSHAFT для Kawasaki VULCAN 1500 CLASSIC (VN1500N8FA) - 2008 года выпуска
-
№АртикулНазвание
-
1204612046-1103 SPROCKET,WATER PUMPSPROCKET,WATER PUMP
-
1303113031-1413 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1304113041-1089 BALANCER, RIGHT HANDBALANCER, RIGHT HAND
-
13041A13041-1093 BALANCER, LEFT HANDBALANCER, LEFT HAND
-
1309713097-1369 GEAR-PRIMARY SPUR,56TGEAR-PRIMARY SPUR,56T
-
1310713107-1524 SHAFT,BALANCERSHAFT,BALANCER
-
1325113251-1080-EE ROD-ASSY-CONNECTING,EROD-ASSY-CONNECTING,E
-
13251A13251-1080-JJ ROD-ASSY-CONNECTING,JROD-ASSY-CONNECTING,J
-
1608516085-1286 GEAR,BALANCERGEAR,BALANCER
-
16085A16085-1307 GEAR,BALANCER,46TGEAR,BALANCER,46T
-
9200192001-1146 BOLT,FLANGED,12X40BOLT,FLANGED,12X40
-
9200292002-1296 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
92002A92002-1896 BOLT,CONNECTING RODBOLT,CONNECTING ROD
-
9201592015-1643 NUT,CONNECTING RODNUT,CONNECTING ROD
-
9202292022-1904 WASHER,12X40X6WASHER,12X40X6
-
92022A92022-1905 WASHER,10X40X6WASHER,10X40X6
-
92022B92022-1906 WASHER,10X33X6WASHER,10X33X6
-
9202892028-1474 BUSHING,CONNECTING ROD,BLUEBUSHING,CONNECTING ROD,BLUE
-
92028A92028-1475 BUSHING,CONNECTING ROD,BLACKBUSHING,CONNECTING ROD,BLACK
-
92028B92028-1476 BUSHING,CONNECTING ROD,BROWNBUSHING,CONNECTING ROD,BROWN
-
9214392143-1093 COLLAR,20X30X24COLLAR,20X30X24
-
92143A92143-1821 COLLAR,20X31X16COLLAR,20X31X16
-
9216092160-1725 DAMPERDAMPER
-
92160A92160-1726 DAMPERDAMPER
