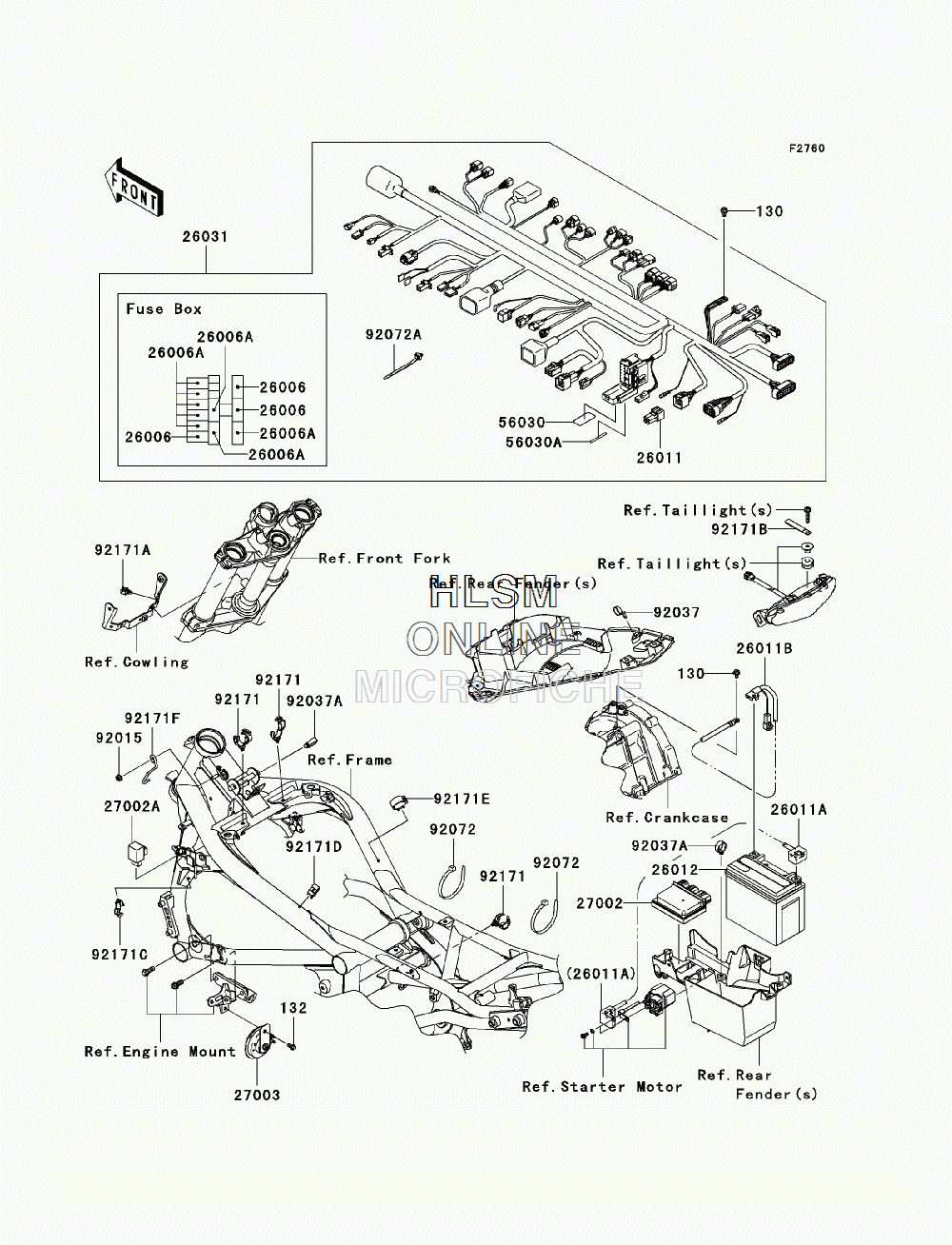

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki ER-6N (ER650C9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
132132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
2600626006-0001 FUSE, MINI BLADE, 15A (BLUE)FUSE, MINI BLADE, 15A (BLUE)
-
26006A26006-1078 FUSE, MINI BLADE, 10A, REDFUSE, MINI BLADE, 10A, RED
-
2601126011-0082 WIRE-LEADWIRE-LEAD
-
26011A26011-0247 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011B26011-0250 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
2601226012-0109 BATTERY, FTX12-BS, 12V 10AHBATTERY, FTX12-BS, 12V 10AH
-
2603126031-0670 HARNESS, MAINHARNESS, MAIN
-
2700227002-0007 RELAY-ASSYRELAY-ASSY
-
27002A27002-1097 RELAY-ASSY, SIGNAL LAMPRELAY-ASSY, SIGNAL LAMP
-
2700327003-0056 HORNHORN
-
5603056030-0046 LABEL, FUSE BOXLABEL, FUSE BOX
-
56030A56030-0098 LABEL, FUSE BOXLABEL, FUSE BOX
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1827 CLAMP, HOSECLAMP, HOSE
-
9207292072-1197 BAND, L=365BAND, L=365
-
92072A92072-1414 BANDBAND
-
9217192171-0069 CLAMP, DIA=20CLAMP, DIA=20
-
92171A92171-0640 CLAMPCLAMP
-
92171B92171-0652 CLAMPCLAMP
-
92171C92171-1415 CLAMP, DIA=13CLAMP, DIA=13
-
92171D92171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
92171E92171-1559 CLAMP, DIA=25CLAMP, DIA=25
-
92171F92171-1897 CLAMPCLAMP
