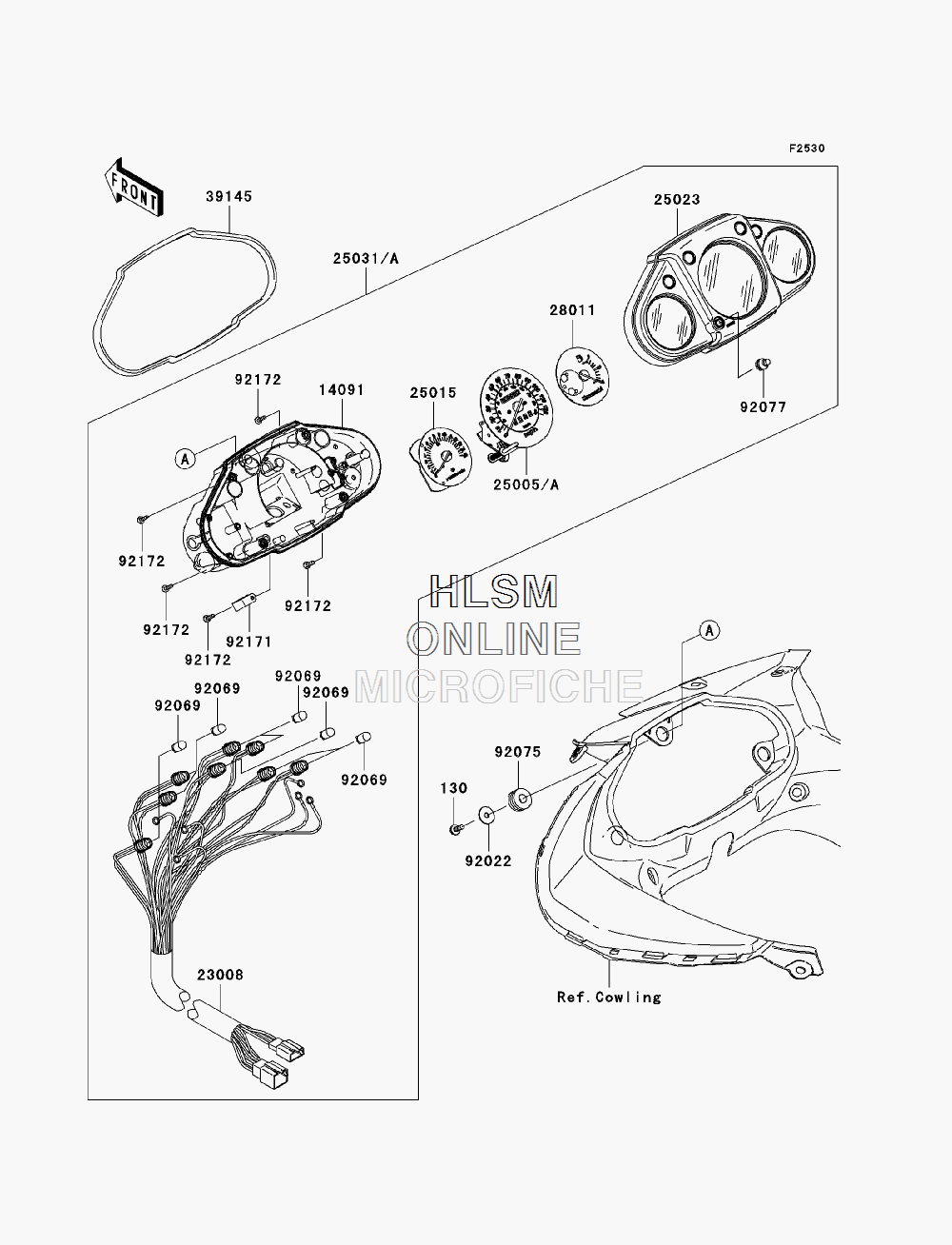

METER(S) для Kawasaki NINJA 250R (EX250J9FA) - 2009 года выпуска
-
№АртикулНазвание
-
130130BA0514 BOLT-FLANGED,5X14BOLT-FLANGED,5X14
-
1409114091-0804 COVER,METER HOUSINGCOVER,METER HOUSING
-
2300823008-0076 SOCKET-ASSY,METERSOCKET-ASSY,METER
-
2500525005-0042 SPEEDOMETER,MPH (USA ONLY)SPEEDOMETER,MPH (USA ONLY)
-
25005A25005-0043 SPEEDOMETER,KPH (CANADA ONLY)SPEEDOMETER,KPH (CANADA ONLY)
-
2501525015-0012 TACHOMETER,X1000R/MINTACHOMETER,X1000R/MIN
-
2502325023-0031 COVER-METER CASE,UPPCOVER-METER CASE,UPP
-
2503125031-0159 METER-ASSY,MPH (USA ONLY)METER-ASSY,MPH (USA ONLY)
-
25031A25031-0209 METER-ASSY,KPH (CANADA ONLY)METER-ASSY,KPH (CANADA ONLY)
-
2801128011-0093 METER,FUELMETER,FUEL
-
3914539145-0039 TRIM-SEAL,L=640TRIM-SEAL,L=640
-
9202292022-104 WASHER,5.5X20X1.2WASHER,5.5X20X1.2
-
9206992069-1007 BULB,12V 3.4W,T10BULB,12V 3.4W,T10
-
9207592075-1690 DAMPERDAMPER
-
9207792077-0010 KNOB,TRIP RESETKNOB,TRIP RESET
-
9217192171-1601 CLAMPCLAMP
-
9217292172-0340 SCREW,TAPPINGSCREW,TAPPING
