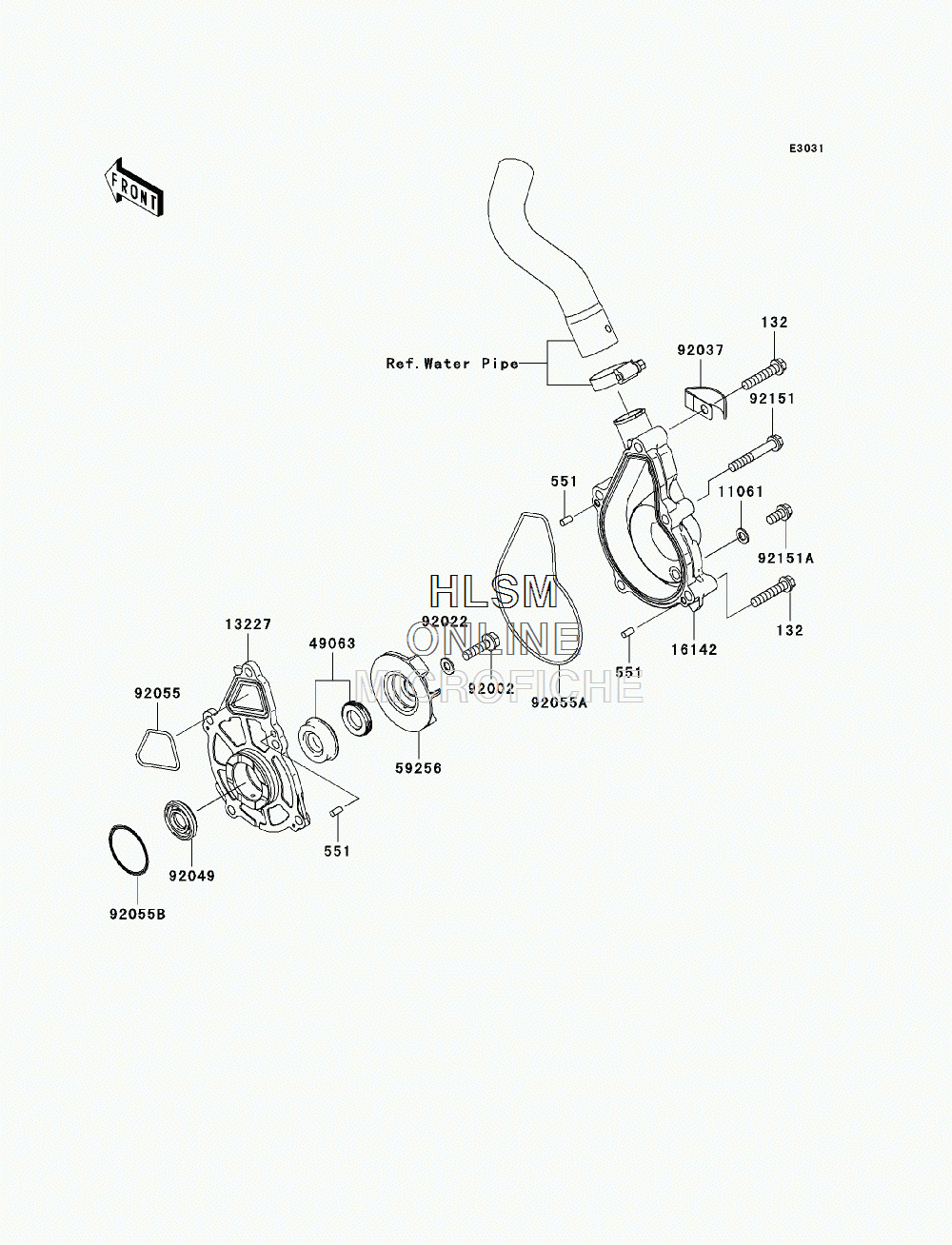

WATER PUMP для Kawasaki VERSYS (KLE650A9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BC0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
1106111061-0107 GASKETGASKET
-
1322713227-0012 HOUSINGHOUSING
-
1614216142-0046 COVER-PUMPCOVER-PUMP
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
5925659256-0007 IMPELLERIMPELLER
-
9200292002-1154 BOLT, 6X22BOLT, 6X22
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9203792037-1680 CLAMPCLAMP
-
9204992049-0115 SEAL-OIL, 12X28.55X5SEAL-OIL, 12X28.55X5
-
9205592055-0082 RING-O, CASE-HOUSINGRING-O, CASE-HOUSING
-
92055A92055-0083 RING-O, HOUSING-PUMP COVERRING-O, HOUSING-PUMP COVER
-
92055B92055-1155 RING-O, 33.2MMRING-O, 33.2MM
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1133 BOLT, 6X12BOLT, 6X12
