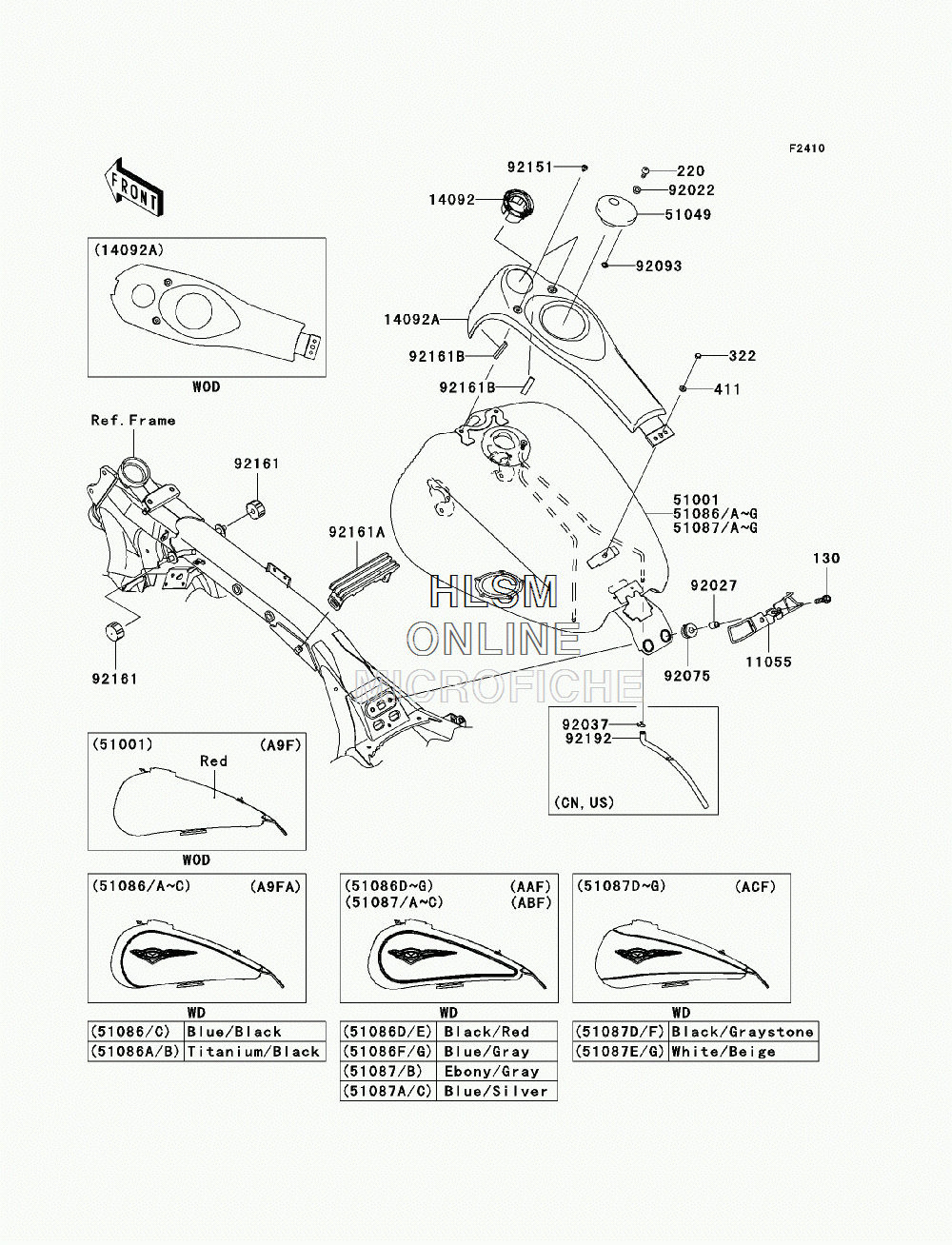

FUEL TANK для Kawasaki VULCAN 1700 VOYAGER (VN1700A9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-1552 BRACKET,SEATBRACKET,SEAT
-
1409214092-0046 COVER,IGNITION SWITCHCOVER,IGNITION SWITCH
-
14092A14092-0116 COVER,FUEL TANKCOVER,FUEL TANK
-
5100151001-0314-25T TANK-COMP-FUEL,C.D.REDTANK-COMP-FUEL,C.D.RED
-
5104951049-0003 CAP-TANK,FUELCAP-TANK,FUEL
-
9202292022-1977 WASHER,5.1X10X1.0WASHER,5.1X10X1.0
-
9202792027-034 COLLAR,8.8X12X17COLLAR,8.8X12X17
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9207592075-1736 DAMPERDAMPER
-
9209392093-1030 SEAL,FUEL TANK CAPSEAL,FUEL TANK CAP
-
9215192151-1449 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
9216192161-0293 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92161A92161-0577 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92161B92161-0804 DAMPER,TANK COVERDAMPER,TANK COVER
-
130130BA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
220220AA0510 SCREW-PAN-CROSS,5X10SCREW-PAN-CROSS,5X10
-
322322AB0600 NUT-CAP,6MM,BLACKNUT-CAP,6MM,BLACK
-
411411S0600 WASHER-PLAIN,6MMWASHER-PLAIN,6MM
-
9219292192-0668 TUBE,BREATHERTUBE,BREATHER
