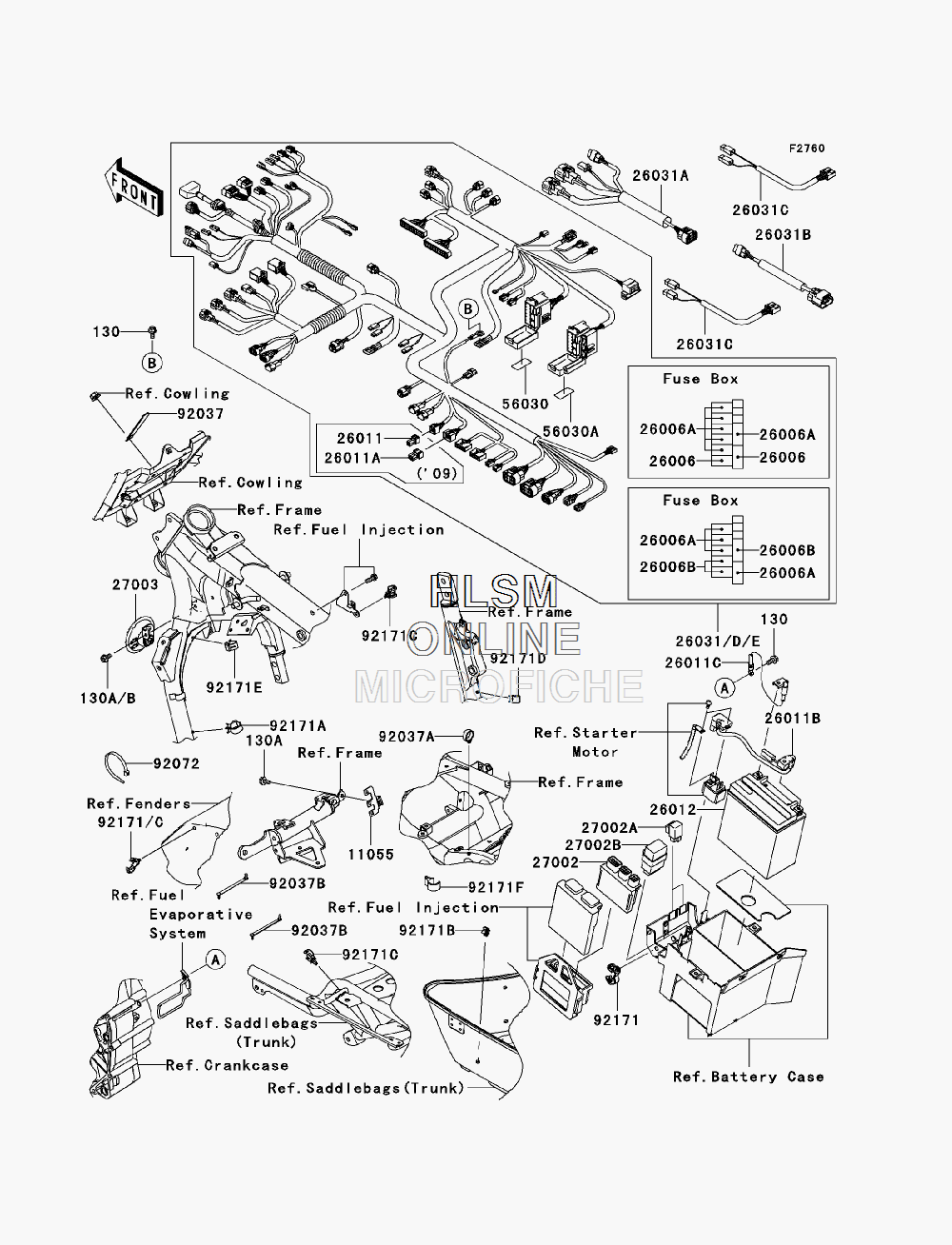

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki VULCAN 1700 VOYAGER (VN1700A9FA) - 2009 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
1105511055-0613 BRACKET,CONNECTORBRACKET,CONNECTOR
-
2600626006-1077 FUSE,MINI BLADE,5A,TANFUSE,MINI BLADE,5A,TAN
-
26006A26006-1078 FUSE,MINI BLADE,10A, REDFUSE,MINI BLADE,10A, RED
-
26006B26006-1079 FUSE,MINI BLADE,20A,YELLOWFUSE,MINI BLADE,20A,YELLOW
-
2601126011-0082 WIRE-LEADWIRE-LEAD
-
26011A26011-0146 WIRE-LEADWIRE-LEAD
-
26011B26011-0179 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011C26011-0180 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
2601226012-1371 BATTERY,MF,FTZ16-BS,12V 18AHBATTERY,MF,FTZ16-BS,12V 18AH
-
2603126031-0645 HARNESS,MAINHARNESS,MAIN
-
26031A26031-0646 HARNESS, REAR,SUBHARNESS, REAR,SUB
-
26031B26031-0678 HARNESS,HIGH MOUNT LAMPHARNESS,HIGH MOUNT LAMP
-
26031C26031-0778 HARNESS,SPEAKERHARNESS,SPEAKER
-
2700227002-0007 RELAY-ASSYRELAY-ASSY
-
27002A27002-1062 RELAY-ASSYRELAY-ASSY
-
27002B27002-1113 RELAY-ASSY,SIGNAL LAMPRELAY-ASSY,SIGNAL LAMP
-
2700327003-0055 HORNHORN
-
5603056030-0177 LABEL,FUSE BOXLABEL,FUSE BOX
-
56030A56030-0293 LABEL,FUSE BOXLABEL,FUSE BOX
-
9203792037-1636 CLAMP,HARNESS,L=100CLAMP,HARNESS,L=100
-
92037A92037-1827 CLAMP,HOSECLAMP,HOSE
-
92037B92037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
9207292072-1195 BAND,L=202BAND,L=202
-
9217192171-0068 CLAMP,CLIP,DIA=20CLAMP,CLIP,DIA=20
-
92171A92171-0081 CLAMP,DIA=20CLAMP,DIA=20
-
92171B92171-0834 CLAMPCLAMP
-
92171C92171-1415 CLAMP,DIA=13CLAMP,DIA=13
-
92171D92171-1423 CLAMP,DIA=10CLAMP,DIA=10
-
92171E92171-1424 CLAMP,DIA=15CLAMP,DIA=15
-
92171F92171-1460 CLAMPCLAMP
