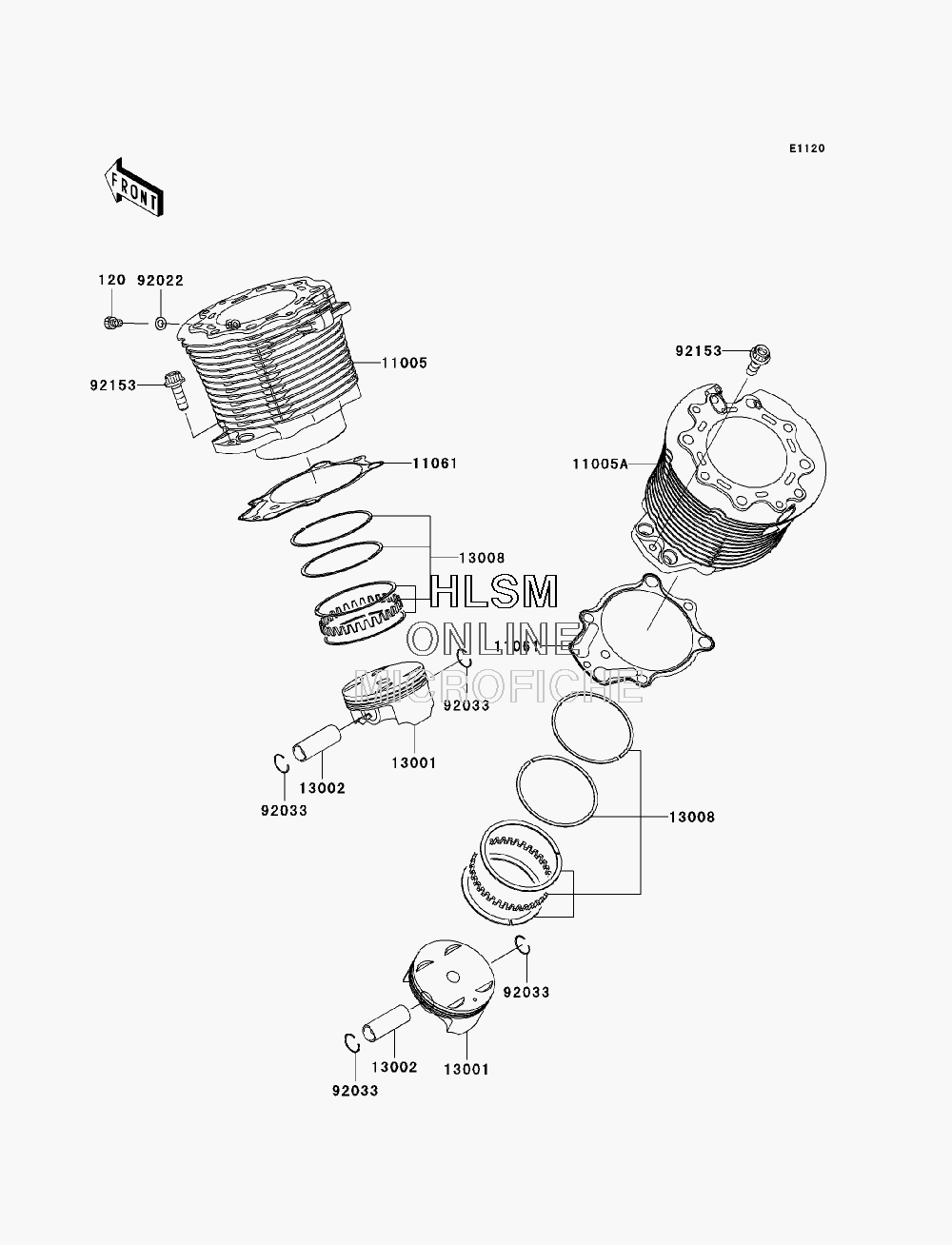

CYLINDER/PISTON(S) для Kawasaki VULCAN 2000 (VN2000G9F) - 2009 года выпуска
-
№АртикулНазвание
-
120120R0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
1100511005-0040 CYLINDER-ENGINE, FRONTCYLINDER-ENGINE, FRONT
-
11005A11005-0041 CYLINDER-ENGINE, REARCYLINDER-ENGINE, REAR
-
1106111061-0010 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0003 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0001 PIN-PISTONPIN-PISTON
-
1300813008-0001 RING-SET-PISTONRING-SET-PISTON
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-3721 RING-SNAPRING-SNAP
-
9215392153-0313 BOLT, 8X25BOLT, 8X25
