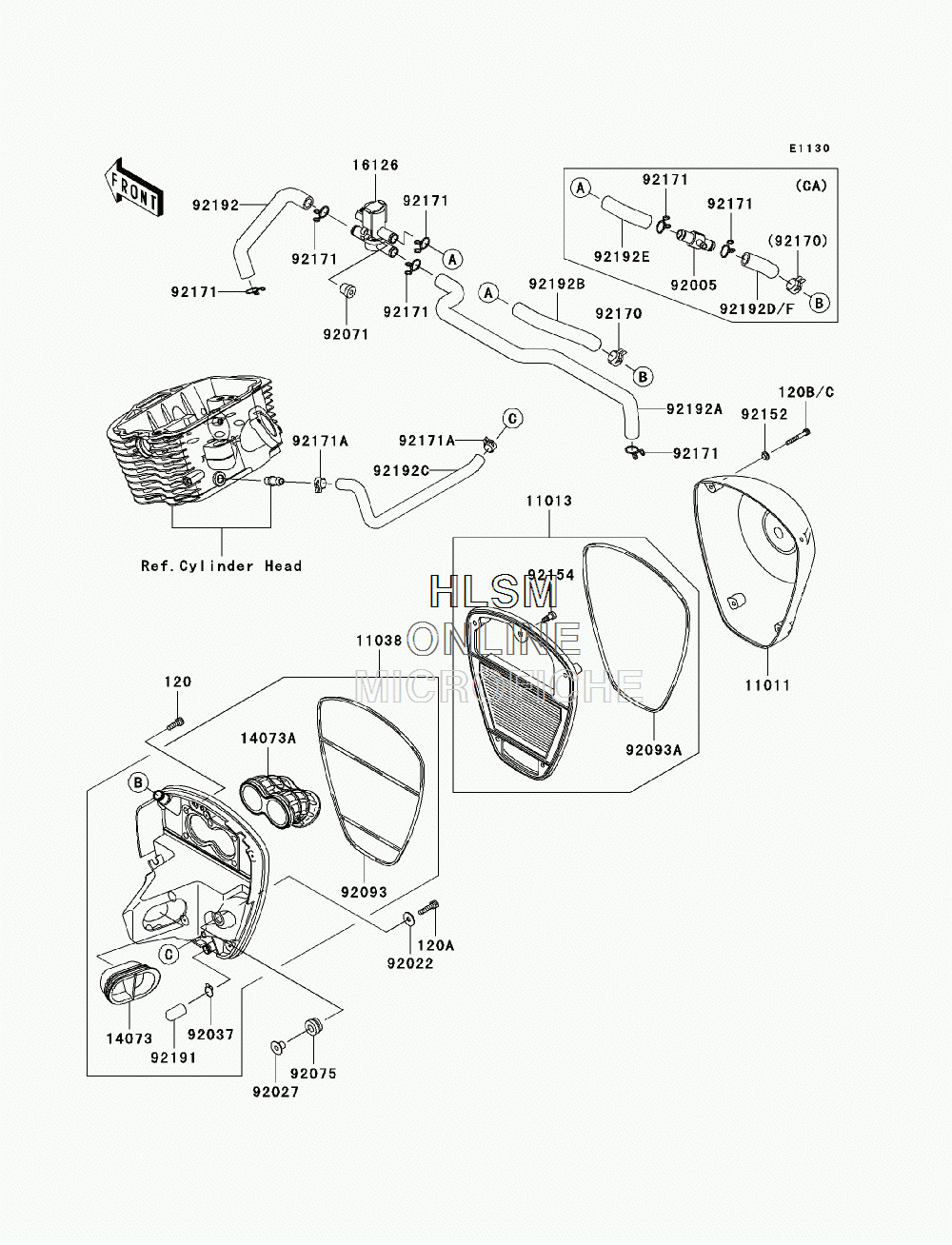

AIR CLEANER для Kawasaki VULCAN 900 CLASSIC (VN900B9F) - 2009 года выпуска
-
№АртикулНазвание
-
120120CA0618 BOLT-SOCKET,6X18BOLT-SOCKET,6X18
-
120A120CA0625 BOLT-SOCKET,6X25BOLT-SOCKET,6X25
-
120C120R0535 BOLT-SOCKET,5X35BOLT-SOCKET,5X35
-
1101111011-0080 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-0015 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-0015 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1407314073-0103 DUCT,INTAKEDUCT,INTAKE
-
14073A14073-0104 DUCT,THROTTLE BODYDUCT,THROTTLE BODY
-
1612616126-1437 VALVE,AIR SWITCHINGVALVE,AIR SWITCHING
-
9200592005-0054 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9202292022-1557 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
9202792027-1062 COLLAR,L=12COLLAR,L=12
-
9203792037-1900 CLAMP,14.5MMCLAMP,14.5MM
-
9207192071-0026 GROMMETGROMMET
-
9207592075-1123 DAMPER,RUBBERDAMPER,RUBBER
-
9209392093-0054 SEALSEAL
-
92093A92093-0057 SEALSEAL
-
9215292152-0451 COLLARCOLLAR
-
9215492154-0120 BOLT,SOCKET,5X16.5BOLT,SOCKET,5X16.5
-
9217092170-1989 CLAMPCLAMP
-
9217192171-0790 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
9217192171-0790 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-1441 CLAMPCLAMP
-
9219192191-1704 TUBETUBE
-
9219292192-0266 TUBE,ASV-FRONT HEADTUBE,ASV-FRONT HEAD
-
92192A92192-0267 TUBE,ASV-REAR HEADTUBE,ASV-REAR HEAD
-
92192B92192-0268 TUBE,A/C-ASV (EXCEPT CALIF.)TUBE,A/C-ASV (EXCEPT CALIF.)
-
92192C92192-0269 TUBE,BLOWBYTUBE,BLOWBY
-
92192E92192-0345 TUBE,ASV-FITTING (CALIF. ONLY)TUBE,ASV-FITTING (CALIF. ONLY)
-
92192F92192-0510 TUBE,A/C-FITTING (CALIF. ONLY)TUBE,A/C-FITTING (CALIF. ONLY)
