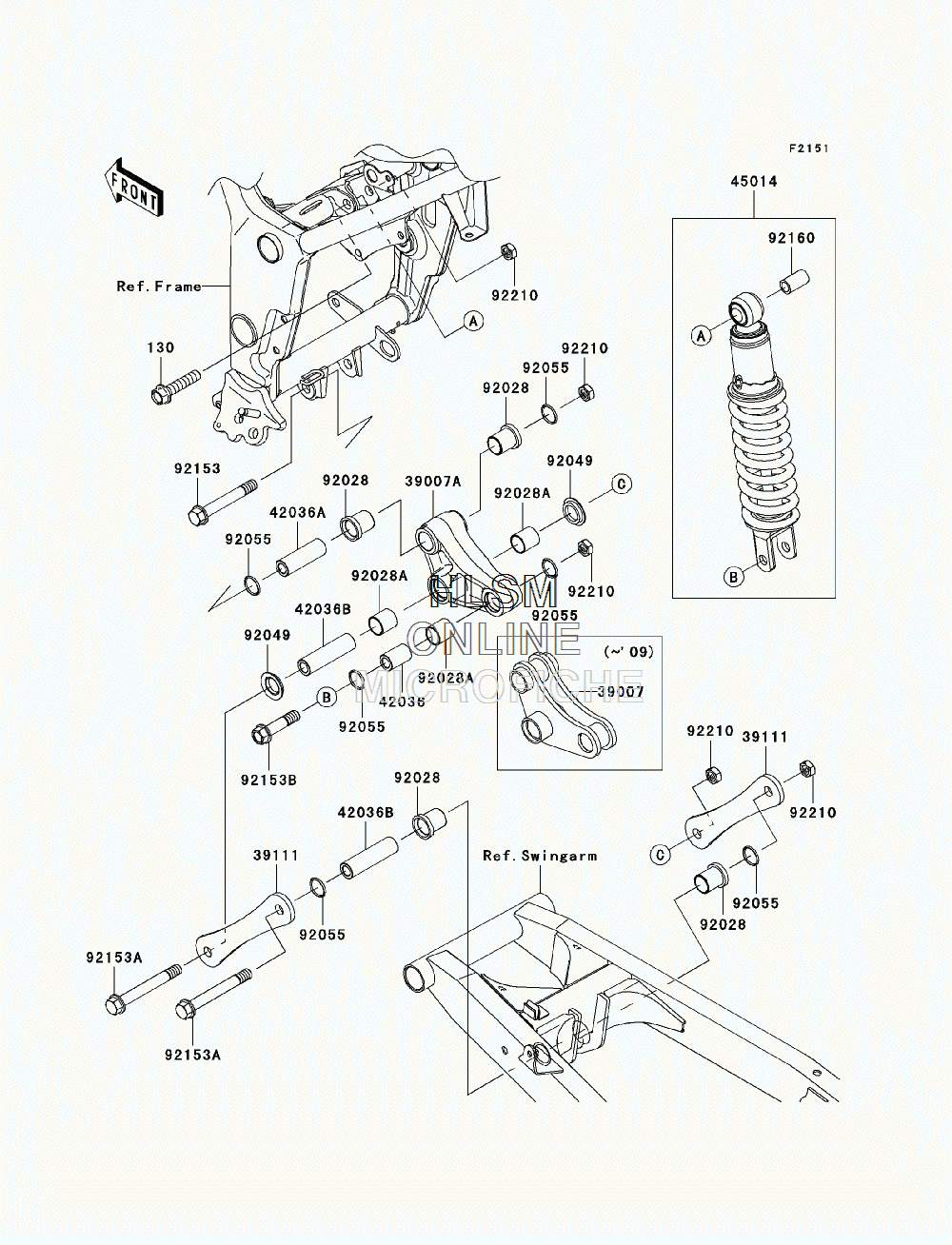

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA 250R (EX250JAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BB1255 BOLT-FLANGED,12X55BOLT-FLANGED,12X55
-
39007A39007-0159 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0042 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-1077 SLEEVE,12.1X20X32SLEEVE,12.1X20X32
-
42036A42036-1078 SLEEVE,ARM, FRONTSLEEVE,ARM, FRONT
-
42036B42036-1102 SLEEVE,12.1X20X74SLEEVE,12.1X20X74
-
4501445014-0234-23J SHOCK,SPRING BLK+BODY BLKSHOCK,SPRING BLK+BODY BLK
-
9202892028-1597 BUSHINGBUSHING
-
92028A92028-1598 BUSHINGBUSHING
-
9204992049-1109 SEAL-OIL,ARMSEAL-OIL,ARM
-
9205592055-1215 RING-O,19.8X2.2RING-O,19.8X2.2
-
9215392153-1830 BOLT,FLANGED,12X86BOLT,FLANGED,12X86
-
92153A92153-1831 BOLT,FLANGED,12X98BOLT,FLANGED,12X98
-
92153B92153-1832 BOLT,FLANGED,12X52BOLT,FLANGED,12X52
-
9216092160-1161 DAMPER,SHOCKABSORBERDAMPER,SHOCKABSORBER
-
9221092210-1247 NUT,LOCK,12MMNUT,LOCK,12MM
