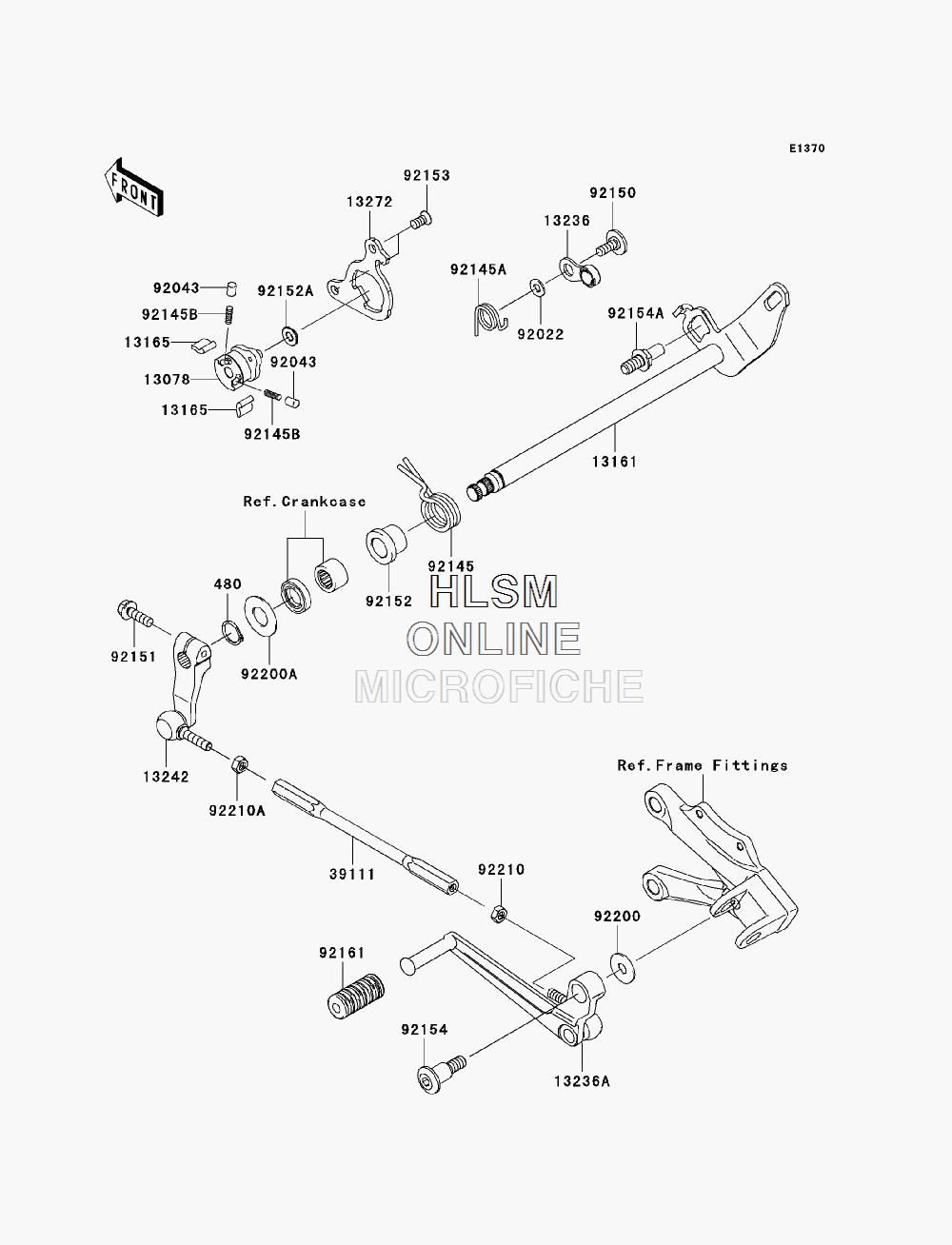

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-10R (ZX1000FAF) - 2010 года выпуска
-
№АртикулНазвание
-
480480J1400 CIRCLIP-TYPE-C,14MMCIRCLIP-TYPE-C,14MM
-
1307813078-0012 RATCHETRATCHET
-
1316113161-0073 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-0018 PAWLPAWL
-
1323613236-0141 LEVER-COMP,POSITIONLEVER-COMP,POSITION
-
13236A13236-0148 LEVER-COMP,CHANGE PEDALLEVER-COMP,CHANGE PEDAL
-
1324213242-0052 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
1327213272-0761 PLATE,PAWL GUIDEPLATE,PAWL GUIDE
-
3911139111-0054 ROD-TIE,L=170ROD-TIE,L=170
-
9202292022-1827 WASHER,6X12.8X1.2WASHER,6X12.8X1.2
-
9204392043-1676 PIN,PLUNGERPIN,PLUNGER
-
9214592145-0731 SPRINGSPRING
-
92145A92145-0732 SPRINGSPRING
-
92145B92145-1490 SPRINGSPRING
-
9215092150-1673 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
9215192151-1226 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
9215292152-0808 COLLARCOLLAR
-
92152A92152-1414 COLLARCOLLAR
-
9215392153-1669 BOLT,TORX,6X8.7BOLT,TORX,6X8.7
-
9215492154-0112 BOLT,SOCKET,8X32BOLT,SOCKET,8X32
-
92154A92154-0253 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9216192161-1300 DAMPER,CHANGE PEDALDAMPER,CHANGE PEDAL
-
9220092200-0174 WASHER,8.0X22.0X1.5WASHER,8.0X22.0X1.5
-
92200A92200-0265 WASHERWASHER
-
9221092210-1100 NUT,6MMNUT,6MM
-
92210A92210-1101 NUT, LEFT HANDED,6MMNUT, LEFT HANDED,6MM
