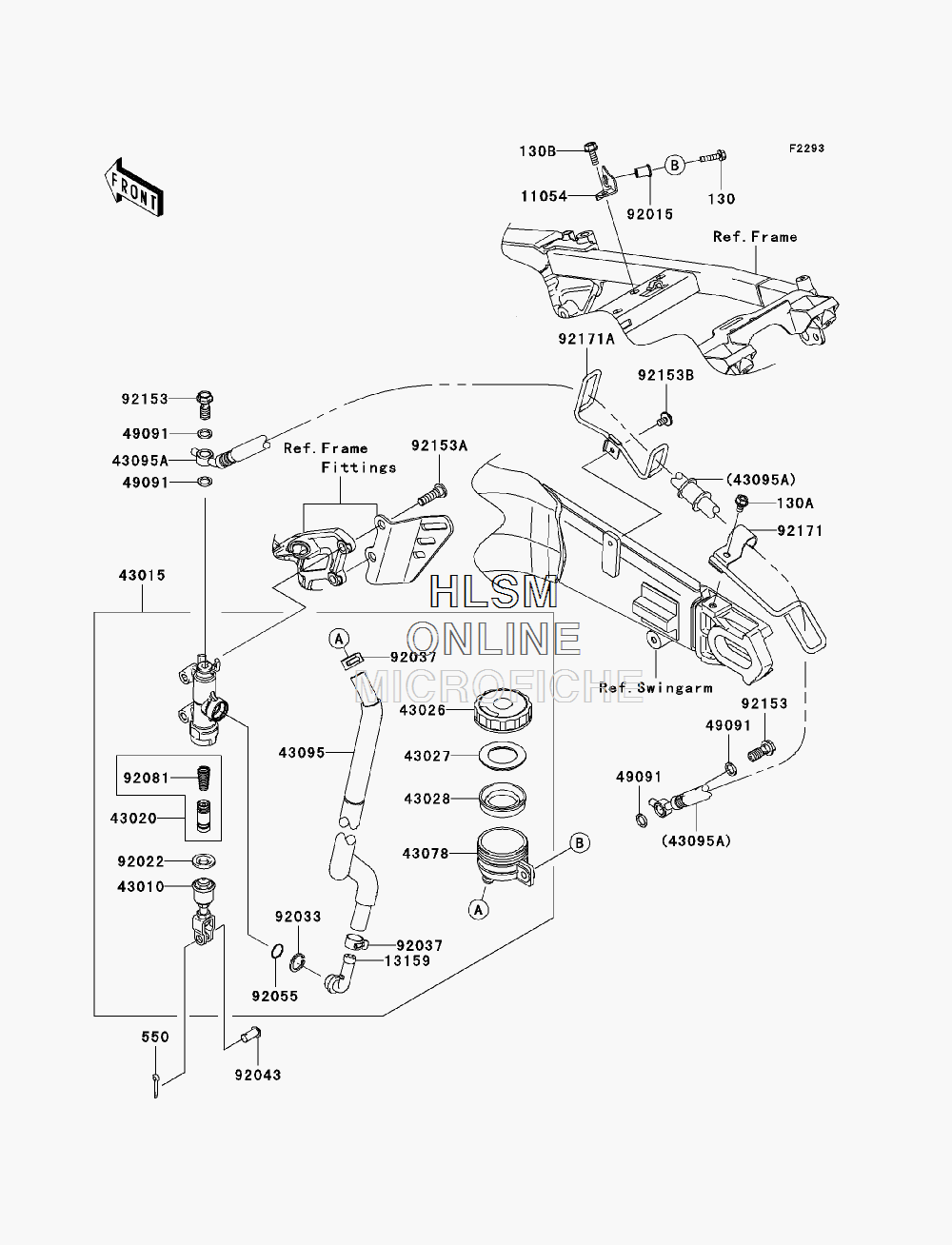

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-14 (ZX1400CAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
130A130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1105411054-0184 BRACKET, RESERVOIR TANK, REARBRACKET, RESERVOIR TANK, REAR
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
4301043010-1055 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0056 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0235 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0401 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92153B92153-1628 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9217192171-0553 CLAMP, BRAKE HOSE, REARCLAMP, BRAKE HOSE, REAR
-
92171A92171-0749 CLAMP, BRAKE HOSE, FRONTCLAMP, BRAKE HOSE, FRONT
