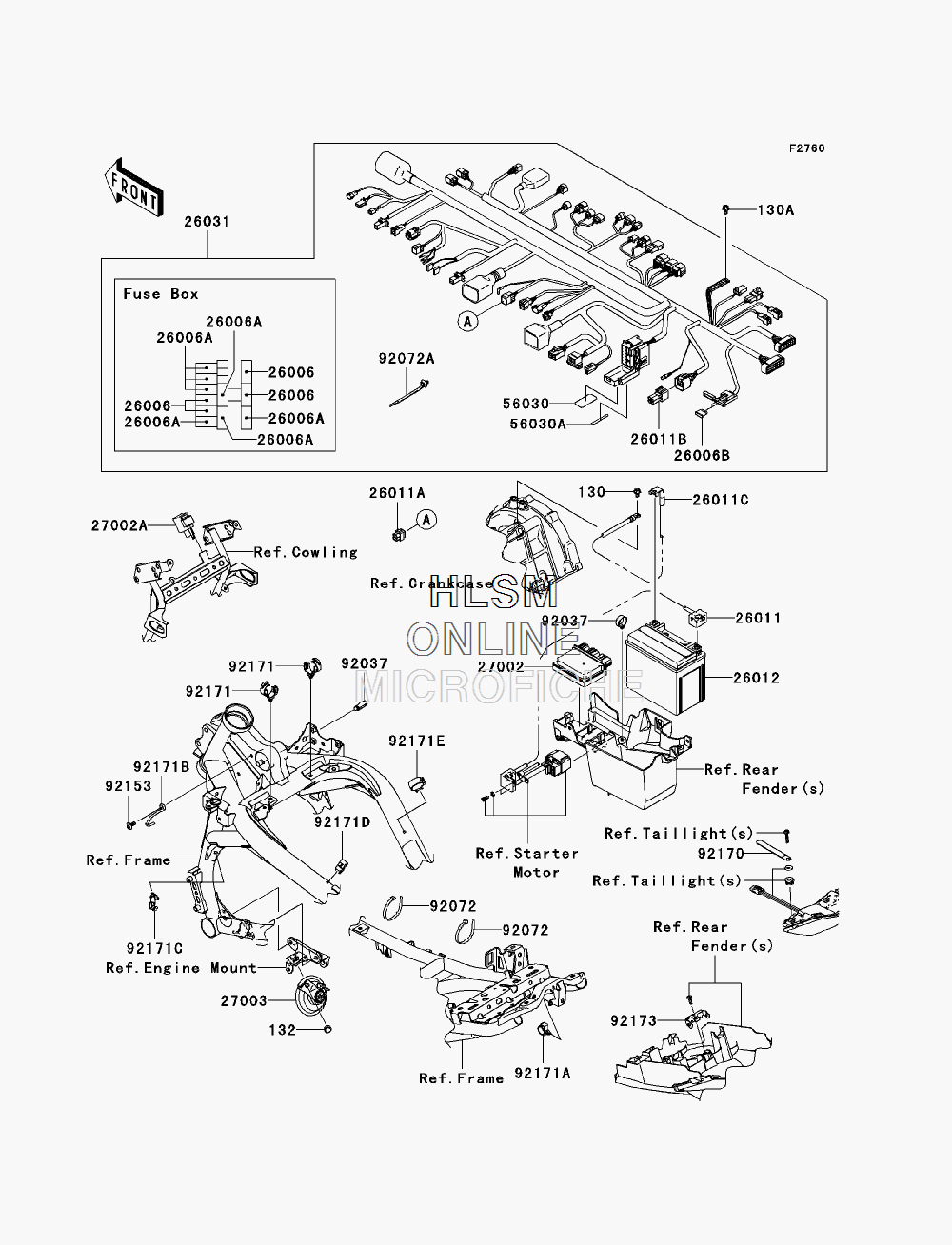

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130A130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
132132BB0812 BOLT-FLANGED-SMALL,8X12BOLT-FLANGED-SMALL,8X12
-
2600626006-0001 FUSE,15AFUSE,15A
-
26006A26006-1078 FUSE,10AFUSE,10A
-
26006B26006-1082 FUSE,5AFUSE,5A
-
2601126011-0073 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011A26011-0101 WIRE-LEAD,SENSOR CONNECTORWIRE-LEAD,SENSOR CONNECTOR
-
26011B26011-0271 WIRE-LEAD,CAPWIRE-LEAD,CAP
-
26011C26011-0299 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
2601226012-0094 BATTERY,YTX12-BS,12V 10AHBATTERY,YTX12-BS,12V 10AH
-
2603126031-0819 HARNESS,MAINHARNESS,MAIN
-
2700227002-0007 RELAY-ASSYRELAY-ASSY
-
27002A27002-1097 RELAY-ASSY,SIGNAL LAMPRELAY-ASSY,SIGNAL LAMP
-
2700327003-0051 HORNHORN
-
5603056030-0346 LABEL,FUSE BOXLABEL,FUSE BOX
-
56030A56030-0360 LABEL,FUSE BOXLABEL,FUSE BOX
-
9203792037-1827 CLAMP,HOSECLAMP,HOSE
-
9207292072-1197 BAND,L=365BAND,L=365
-
92072A92072-1414 BANDBAND
-
9215392153-1446 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9217092170-1925 CLAMPCLAMP
-
9217192171-0069 CLAMP,DIA=20CLAMP,DIA=20
-
92171A92171-0316 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171B92171-0657 CLAMP,HARNESSCLAMP,HARNESS
-
92171C92171-1415 CLAMP,DIA=13CLAMP,DIA=13
-
92171D92171-1424 CLAMP,DIA=15CLAMP,DIA=15
-
92171E92171-1559 CLAMP,DIA=25CLAMP,DIA=25
-
9217392173-0218 CLAMP,FUSE BOXCLAMP,FUSE BOX
