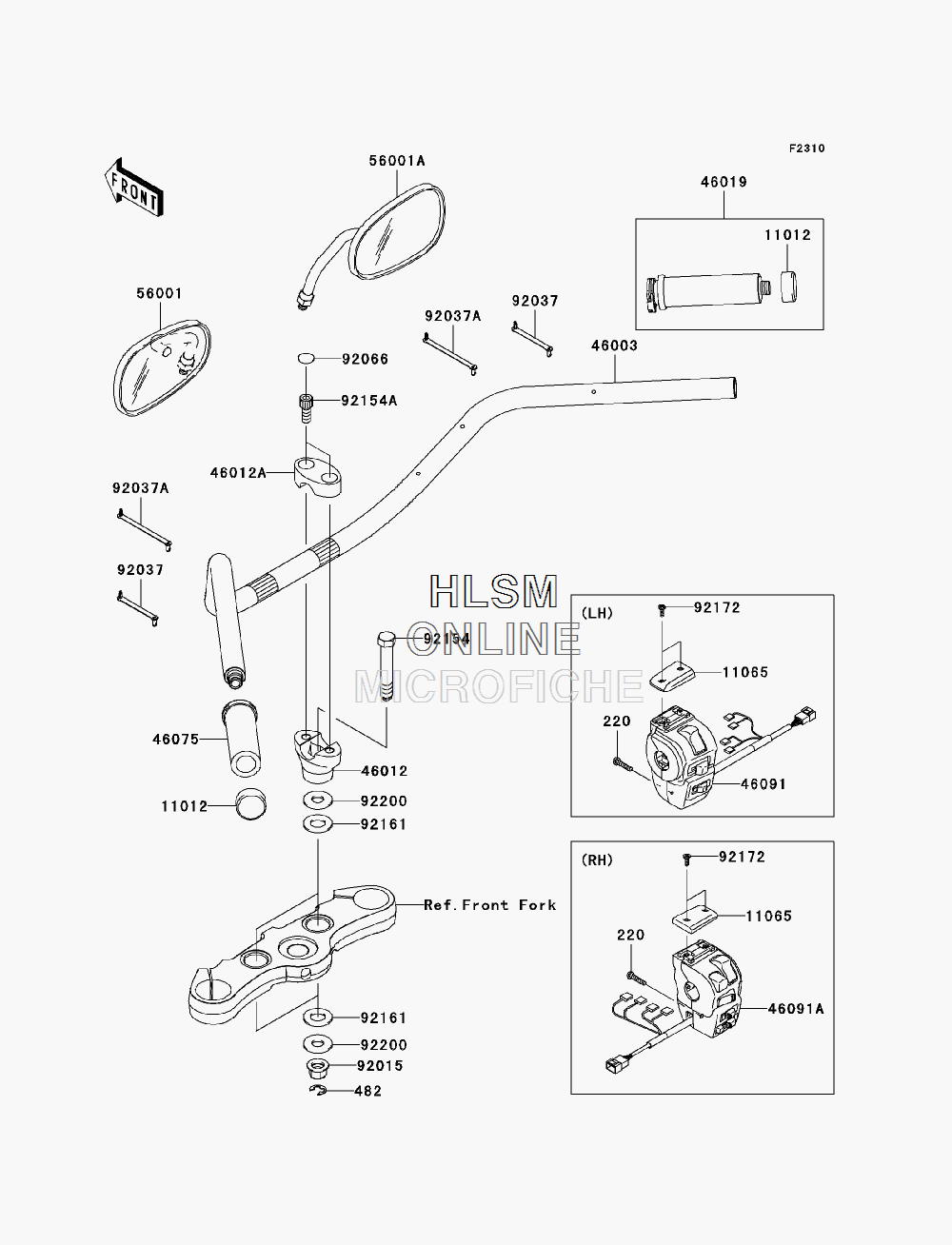

HANDLEBAR для Kawasaki VULCAN 1700 NOMAD (VN1700CAF) - 2010 года выпуска
-
№АртикулНазвание
-
220220AB0525 SCREW-PAN-CROSS,5X25SCREW-PAN-CROSS,5X25
-
482482EA0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E,10MM
-
1101211012-1975 CAP,GRIP ENDCAP,GRIP END
-
1106511065-0310 CAP,HOUSING SWITCHCAP,HOUSING SWITCH
-
4600346003-0183 HANDLEHANDLE
-
4601246012-0078 HOLDER-HANDLE,LWRHOLDER-HANDLE,LWR
-
46012A46012-1273 HOLDER-HANDLE,UPPHOLDER-HANDLE,UPP
-
4601946019-1109 GRIP-ASSY,THROTTLEGRIP-ASSY,THROTTLE
-
4607546075-1074 GRIP, LEFT HANDGRIP, LEFT HAND
-
4609146091-0147 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
46091A46091-0148 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
5600156001-0032 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-0033 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9201592015-1401 NUT,FLANGED,14MMNUT,FLANGED,14MM
-
9203792037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
92037A92037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
9206692066-1285 PLUGPLUG
-
9215492154-0319 BOLT,UPSET,14X85BOLT,UPSET,14X85
-
92154A92154-0350 BOLT,SOCKET,10X25BOLT,SOCKET,10X25
-
9216192161-0836 DAMPER,18X35X2.2DAMPER,18X35X2.2
-
9217292172-0421 SCREW,4X12SCREW,4X12
-
9220092200-0534 WASHER,14.2X35X2.3WASHER,14.2X35X2.3
