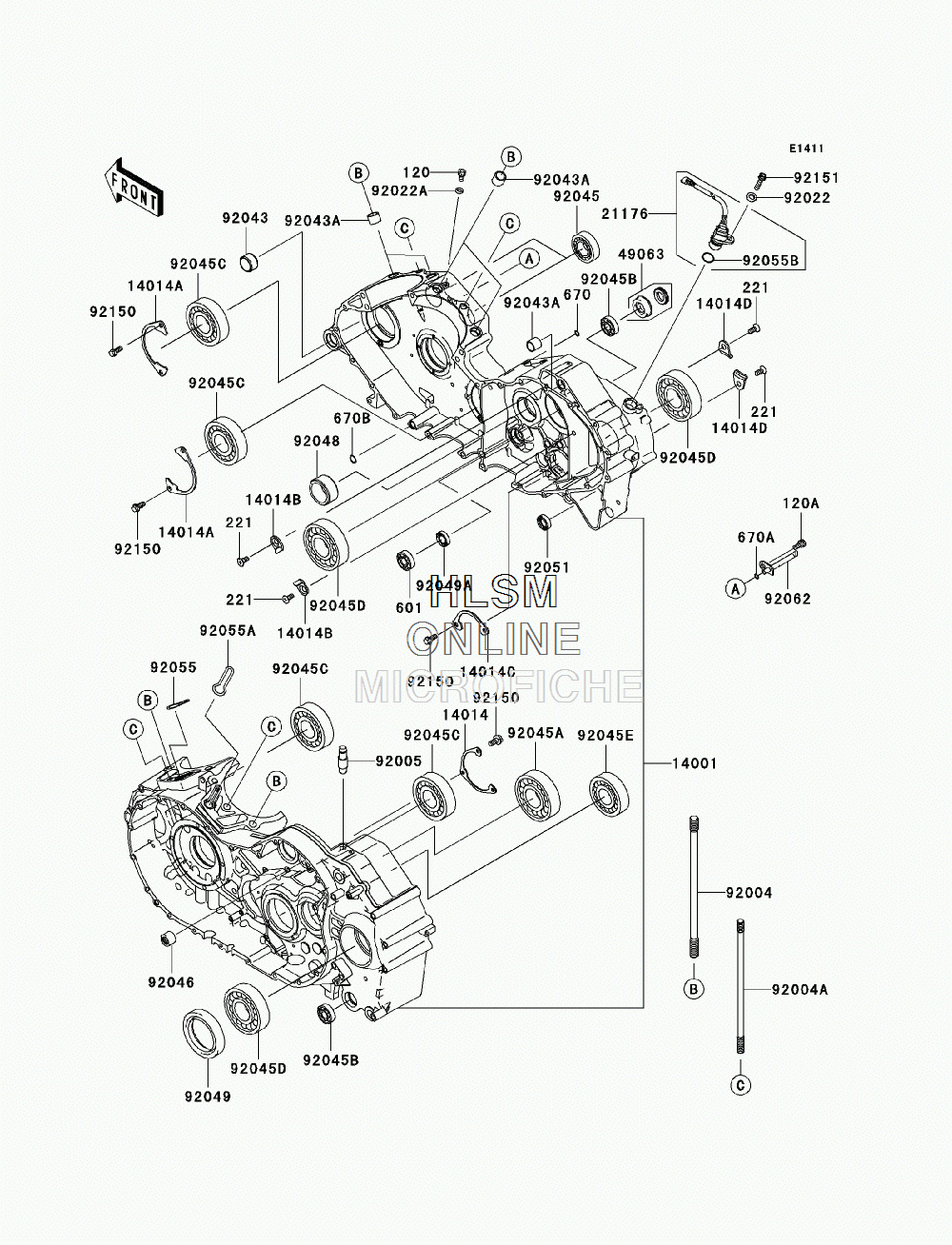

CRANKCASE для Kawasaki VULCAN 2000 CLASSIC LT (VN2000JAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120R0610 BOLT-SOCKET,6X10BOLT-SOCKET,6X10
-
120A120R0612 BOLT-SOCKET,6X12BOLT-SOCKET,6X12
-
221221AA0614 SCREW-CSK-CROS,6X14SCREW-CSK-CROS,6X14
-
601601A6001 BEARING-BALLBEARING-BALL
-
670670D1505 O RINGO RING
-
670A670D1506 O RING,6MMO RING,6MM
-
670B670D2010 O RINGO RING
-
1400114001-5392 SET-CRANKCASESET-CRANKCASE
-
1401414014-0001 PLATE-POSITIONPLATE-POSITION
-
14014A14014-0002 PLATE-POSITIONPLATE-POSITION
-
14014B14014-0003 PLATE-POSITIONPLATE-POSITION
-
14014C14014-0004 PLATE-POSITIONPLATE-POSITION
-
14014D14014-0011 PLATE-POSITIONPLATE-POSITION
-
2117621176-0038 SENSOR,SPEEDSENSOR,SPEED
-
4906349063-1055 SEAL-MECHANICAL,WATERSEAL-MECHANICAL,WATER
-
9200492004-0008 STUD,12X217STUD,12X217
-
92004A92004-0009 STUD,10X206STUD,10X206
-
9200592005-0015 FITTING,BREATHERFITTING,BREATHER
-
9202292022-1506 WASHER,6.5X11.5X2WASHER,6.5X11.5X2
-
92022A92022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9204392043-0032 PIN,24X14PIN,24X14
-
92043A92043-1608 PIN,13X16X14PIN,13X16X14
-
9204592045-0002 BEARING-BALL,60/22BEARING-BALL,60/22
-
92045A92045-0022 BEARING-BALL,6306LUBEARING-BALL,6306LU
-
92045B92045-1151 BEARING-BALL,6001JRXLLU/5KBEARING-BALL,6001JRXLLU/5K
-
92045C92045-1189 BEARING-BALL,63/28BEARING-BALL,63/28
-
92045D92045-1190 BEARING-BALL,6306SH2BEARING-BALL,6306SH2
-
92045E92045-1254 BEARING-BALL,6305RIGHT HANDR4SH2BEARING-BALL,6305RIGHT HANDR4SH2
-
9204692046-1163 BEARING-NEEDLE,HK1212BEARING-NEEDLE,HK1212
-
9204892048-1103 RACERACE
-
9204992049-0010 SEAL-OILSEAL-OIL
-
92049A92049-1228 SEAL-OIL,SC 12X22X5SEAL-OIL,SC 12X22X5
-
9205192051-005 SEAL-OIL,TB13225.5SEAL-OIL,TB13225.5
-
9205592055-0007 RING-O, FRONT CYLINDER BASERING-O, FRONT CYLINDER BASE
-
92055A92055-0008 RING-O, REAR CYLINDER BASERING-O, REAR CYLINDER BASE
-
92055B92055-1638 RING-ORING-O
-
9206292062-0002 NOZZLENOZZLE
-
9215092150-1916 BOLT,6X14BOLT,6X14
-
9215192151-3774 BOLT,SOCKET,6X20BOLT,SOCKET,6X20
