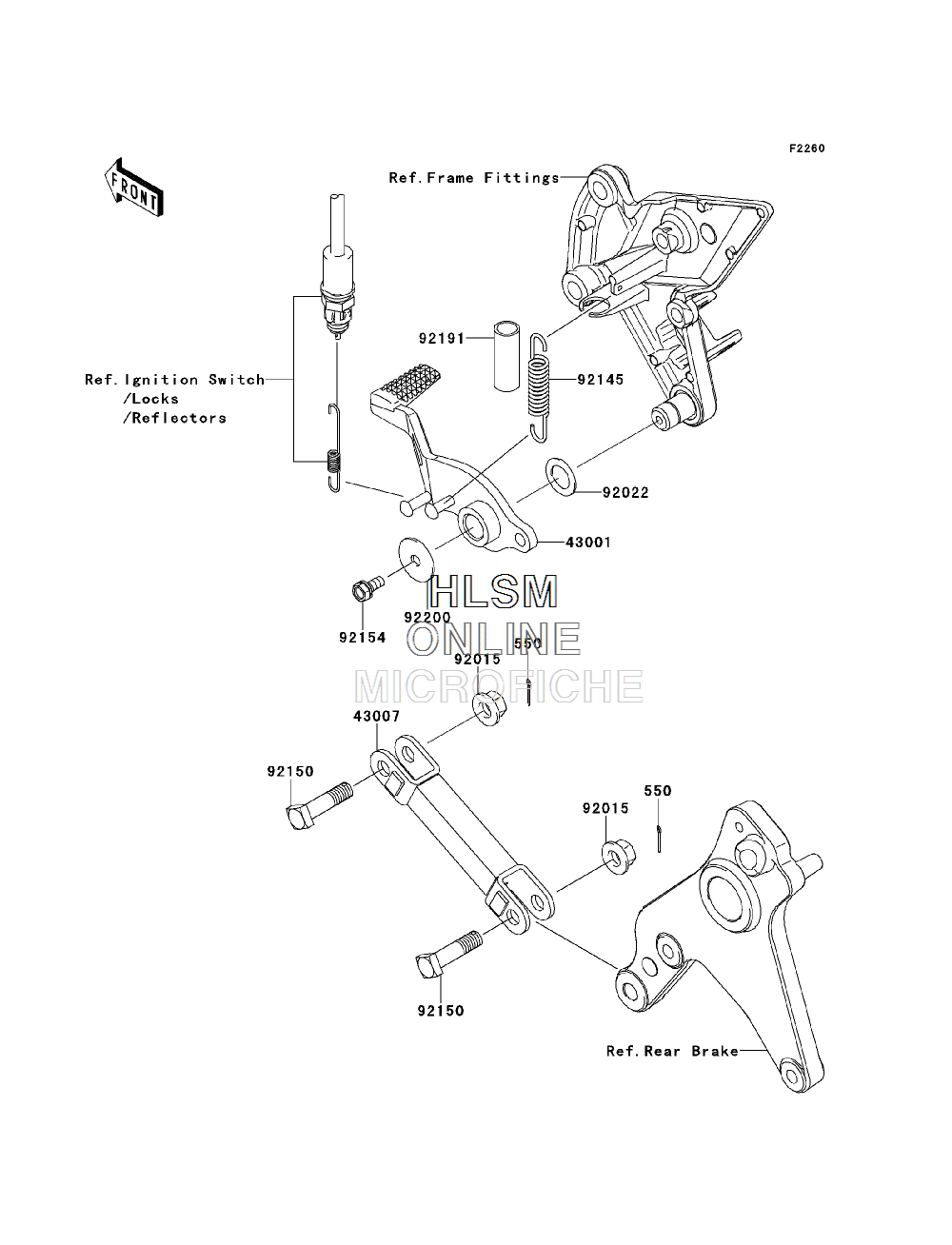

BRAKE PEDAL W/ TORQUE LINK для Kawasaki ZR1000 (ZR1000DAF) - 2010 года выпуска
-
№АртикулНазвание
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
4300143001-0121 LEVER-BRAKELEVER-BRAKE
-
4300743007-0016-18R ROD-TORQUE, (F.S.BLACK)ROD-TORQUE, (F.S.BLACK)
-
9201592015-1415 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-326 WASHER, 15.3X24X1WASHER, 15.3X24X1
-
9214592145-0764 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
9215092150-1598 BOLT, 10X39.5BOLT, 10X39.5
-
9215492154-0293 BOLT, UPSET-WS, 6X14BOLT, UPSET-WS, 6X14
-
9219192191-1739 TUBE, 12X15X40TUBE, 12X15X40
-
9220092200-0279 WASHER, 7X28X1.6WASHER, 7X28X1.6
