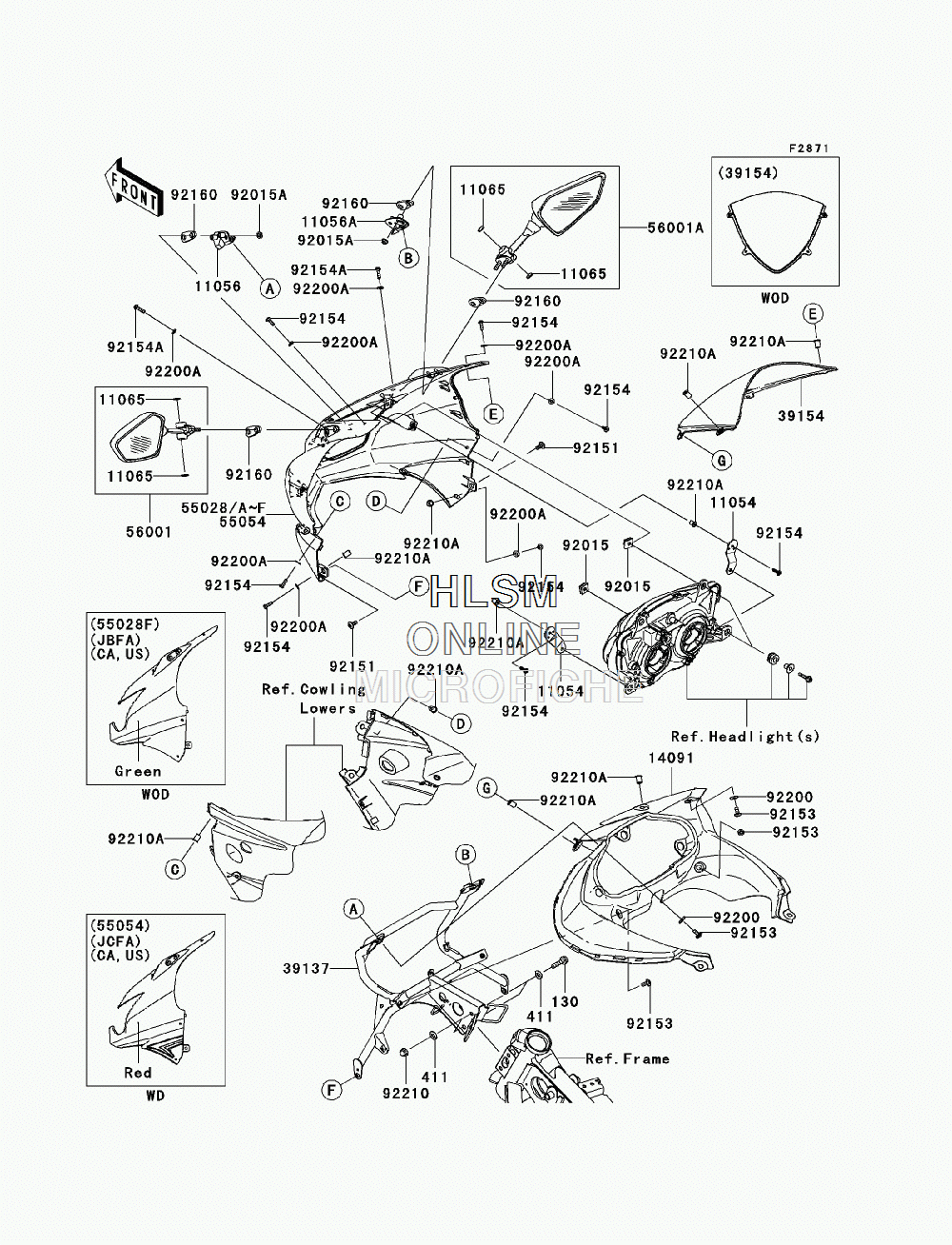

COWLING для Kawasaki NINJA 250R (EX250JBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130BB0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
411411AB0800 WASHER-PLAIN,8.5X18X1.6WASHER-PLAIN,8.5X18X1.6
-
1105411054-1457 BRACKETBRACKET
-
1105611056-0115 BRACKET,MIREAROR, LEFT HANDBRACKET,MIREAROR, LEFT HAND
-
11056A11056-0116 BRACKET,MIREAROR, RIGHT HANDBRACKET,MIREAROR, RIGHT HAND
-
1106511065-0356 CAP,14X1.5CAP,14X1.5
-
1409114091-0722 COVER,METERCOVER,METER
-
3913739137-0058-18R STAY-COMP,UPP COWLING,BLACKSTAY-COMP,UPP COWLING,BLACK
-
3915439154-0028 WINDSHIELDWINDSHIELD
-
5502855028-0153-G3 COWLING,UPP,P.WHITE (FOR G3)COWLING,UPP,P.WHITE (FOR G3)
-
55028F55028-0153-777 COWLING,UPP,L.GREEN (USA ONLY) (FOR 777)COWLING,UPP,L.GREEN (USA ONLY) (FOR 777)
-
5600156001-0098 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-0099 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9201592015-1094 NUT,6MMNUT,6MM
-
92015A92015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
9215192151-1654 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9215392153-0816 BOLT,6X18BOLT,6X18
-
9215492154-0182 BOLT,SOCKET,5X16BOLT,SOCKET,5X16
-
92154A92154-0216 BOLT,SOCKET,5X20BOLT,SOCKET,5X20
-
9216092160-1089 DAMPER,MIREARORDAMPER,MIREAROR
-
9220092200-0430 WASHER,6.5X17X1WASHER,6.5X17X1
-
92200A92200-1011 WASHER,NYLON,5.2X12X1WASHER,NYLON,5.2X12X1
-
9221092210-0488 NUT,CAP,8MMNUT,CAP,8MM
-
92210A92210-0498 NUT,WELL,5MMNUT,WELL,5MM
