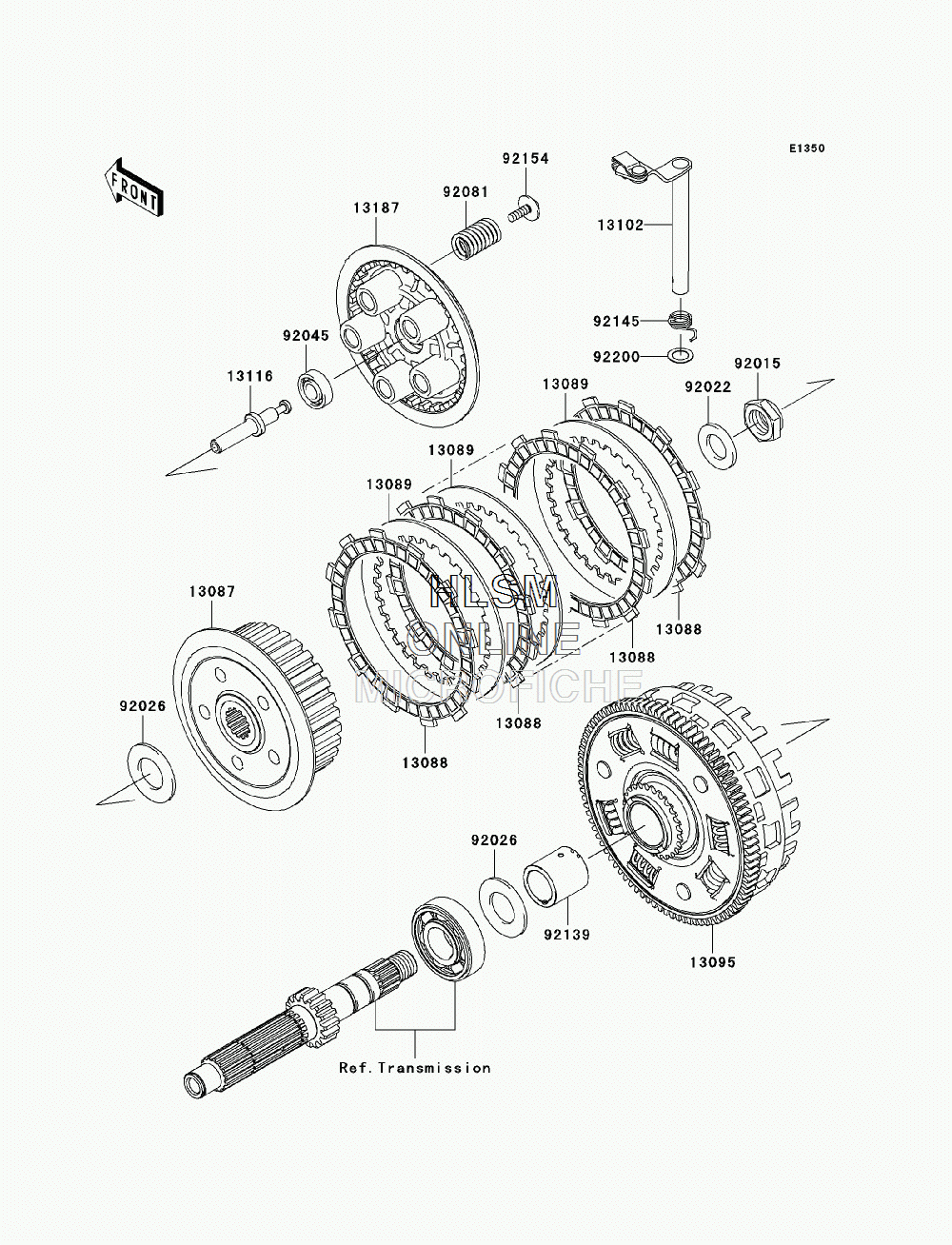

CLUTCH для Kawasaki NINJA 650R (EX650CBF) - 2011 года выпуска
-
№АртикулНазвание
-
1308713087-0046 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1105 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0016 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
1309513095-0115 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0037 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0035 ROD-PUSHROD-PUSH
-
1318713187-0017 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
9204592045-1235 BEARING-BALL, 6001C3ML01BEARING-BALL, 6001C3ML01
-
9208192081-1033 SPRING, CLUTCHSPRING, CLUTCH
-
9213992139-0106 BUSHINGBUSHING
-
9214592145-0066 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9215492154-0079 BOLT, UPSET-WP, 6X20BOLT, UPSET-WP, 6X20
-
9220092200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
