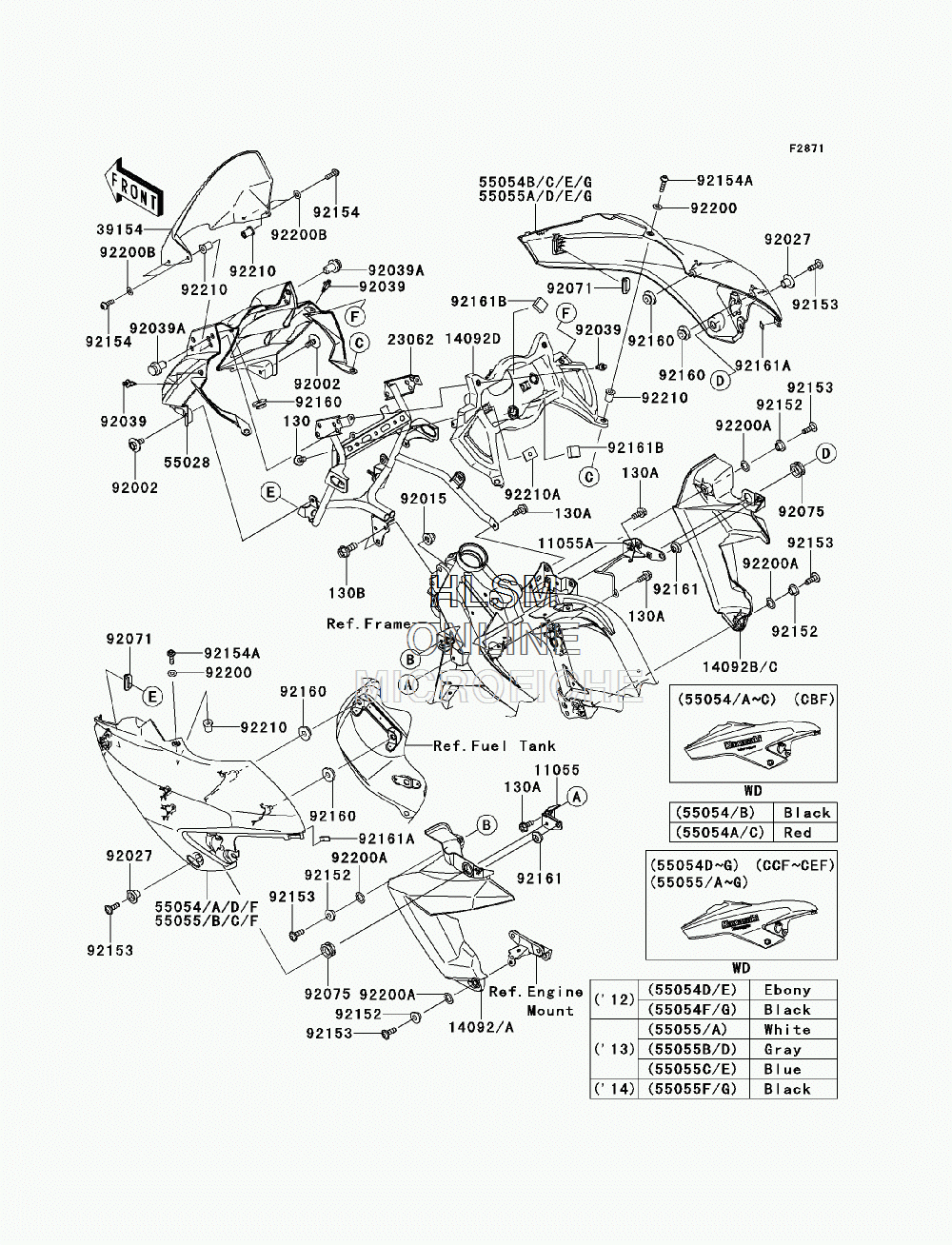

COWLING для Kawasaki VERSYS (KLE650CBF) - 2011 года выпуска
-
№АртикулНазвание
-
1105511055-1887 BRACKET, COWLING, LEFT HANDBRACKET, COWLING, LEFT HAND
-
11055A11055-1888 BRACKET, COWLING, RIGHT HANDBRACKET, COWLING, RIGHT HAND
-
130130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130B130BA0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
1409214092-0074-18T COVER, RADIATOR, LEFT HAND, (F.S.BLACK)COVER, RADIATOR, LEFT HAND, (F.S.BLACK)
-
14092A14092-0074-458 COVER, RADIATOR, LEFT HAND, (P.SILVER) (FOR 35D)COVER, RADIATOR, LEFT HAND, (P.SILVER) (FOR 35D)
-
14092B14092-0075-18T COVER, RADIATOR, RIGHT HAND, (F.S.BLACK)COVER, RADIATOR, RIGHT HAND, (F.S.BLACK)
-
14092C14092-0075-458 COVER, RADIATOR, RIGHT HAND, (P.SILVER) (FOR 35D)COVER, RADIATOR, RIGHT HAND, (P.SILVER) (FOR 35D)
-
14092D14092-0264 COVER, METERCOVER, METER
-
2306223062-0112 BRACKET-COMP, COWLING, CENTERBRACKET-COMP, COWLING, CENTER
-
3915439154-0053 WINDSHIELDWINDSHIELD
-
5502855028-0309 COWLING, UPPERCOWLING, UPPER
-
5505455054-5101-15Z COWLING, SIDE, LEFT HAND, (M.S.BLACK) (CANADA ONLY) (FOR 15Z)COWLING, SIDE, LEFT HAND, (M.S.BLACK) (CANADA ONLY) (FOR 15Z)
-
55054A55054-5101-35D COWLING, SIDE, LEFT HAND, (M.I.RED) (FOR 35D)COWLING, SIDE, LEFT HAND, (M.I.RED) (FOR 35D)
-
55054B55054-5102-15Z COWLING, SIDE, RIGHT HAND, (M.S.BLACK) (CANADA ONLY) (FOR 15Z)COWLING, SIDE, RIGHT HAND, (M.S.BLACK) (CANADA ONLY) (FOR 15Z)
-
55054C55054-5102-35D COWLING, SIDE, RIGHT HAND, (M.I.RED) (FOR 35D)COWLING, SIDE, RIGHT HAND, (M.I.RED) (FOR 35D)
-
9200292002-1188 BOLT, 6X16BOLT, 6X16
-
9201592015-1151 NUT, CAP, 8MMNUT, CAP, 8MM
-
9202792027-1045 COLLAR, L=9.6COLLAR, L=9.6
-
9203992039-0023 RIVETRIVET
-
92039A92039-0098 RIVETRIVET
-
9207192071-0013 GROMMETGROMMET
-
9207592075-1634 DAMPERDAMPER
-
9215292152-1359 COLLARCOLLAR
-
9215392153-0478 BOLT, 6X18BOLT, 6X18
-
9215492154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-0210 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0631 DAMPERDAMPER
-
92161A92161-0726 DAMPERDAMPER
-
92161B92161-0835 DAMPER, 20X20X10DAMPER, 20X20X10
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
92200A92200-0157 WASHER, 10.4X15.9X0.5WASHER, 10.4X15.9X0.5
-
92200B92200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
-
9221092210-0498 NUT, WELL, 5MMNUT, WELL, 5MM
-
92210A92210-1352 NUT, PLATE, 6MMNUT, PLATE, 6MM
