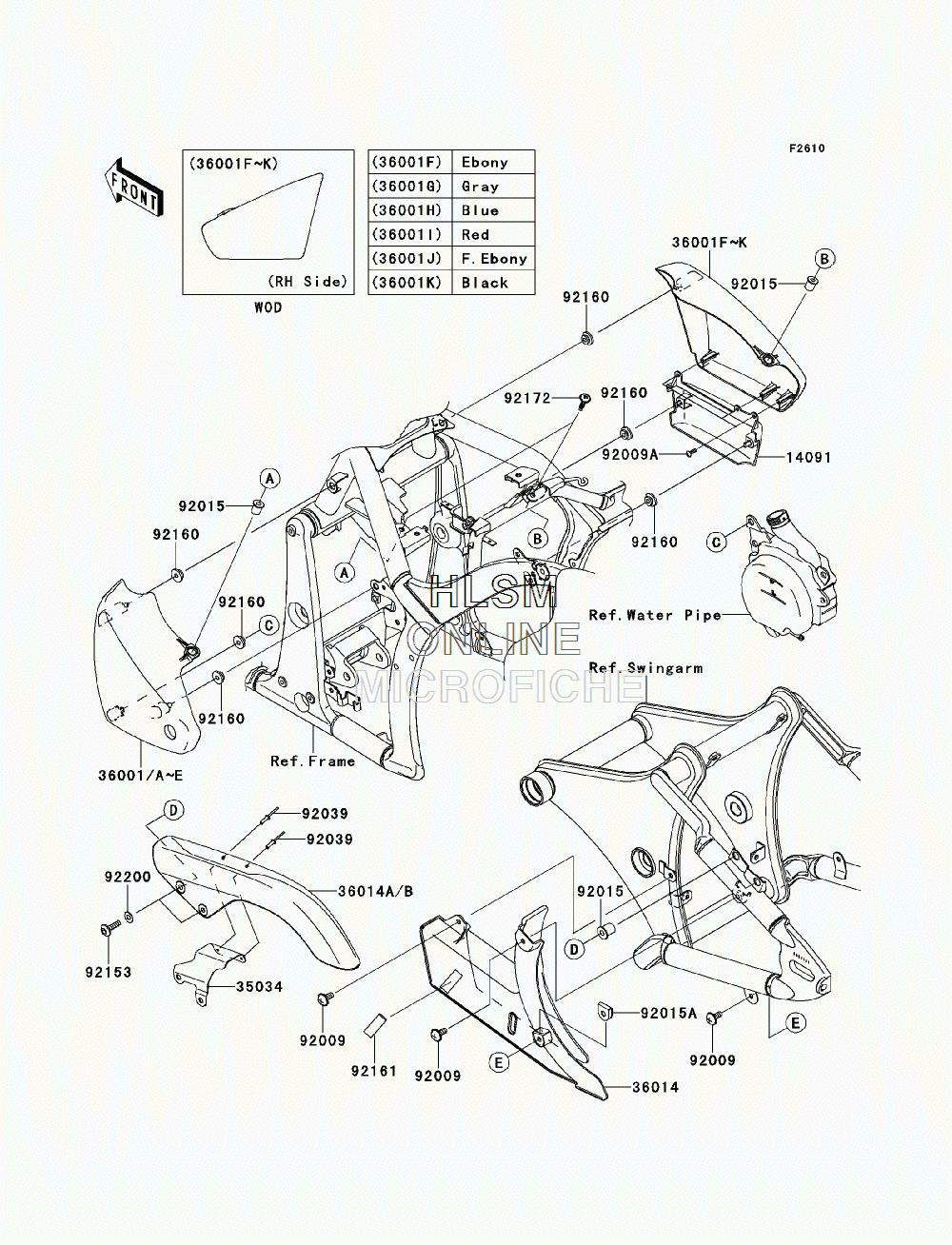

SIDE COVERS W/ CHAIN COVER для Kawasaki VULCAN 900 CLASSIC (VN900BBFA) - 2011 года выпуска
-
№АртикулНазвание
-
1409114091-0641 COVER, SIDE COVER, RIGHT HANDCOVER, SIDE COVER, RIGHT HAND
-
3503435034-0082 REINFORCEREINFORCE
-
3600136001-0081-H8 COVER-SIDE, LEFT HAND, (EBONY)COVER-SIDE, LEFT HAND, (EBONY)
-
36001F36001-0082-H8 COVER-SIDE, RIGHT HAND, (EBONY)COVER-SIDE, RIGHT HAND, (EBONY)
-
3601436014-0031 CASE-CHAIN, LWRCASE-CHAIN, LWR
-
36014A36014-0032 CASE-CHAIN, UPPCASE-CHAIN, UPP
-
9200992009-1662 SCREW, 6X14SCREW, 6X14
-
92009A92009-1792 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9201592015-1700 NUTNUT
-
92015A92015-1904 NUT, CLIP, 6MMNUT, CLIP, 6MM
-
9203992039-1251 RIVETRIVET
-
9215392153-1356 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0124 DAMPERDAMPER
-
9217292172-0137 SCREW, 6X26SCREW, 6X26
-
9220092200-1388 WASHER, 6.5X14X1WASHER, 6.5X14X1
