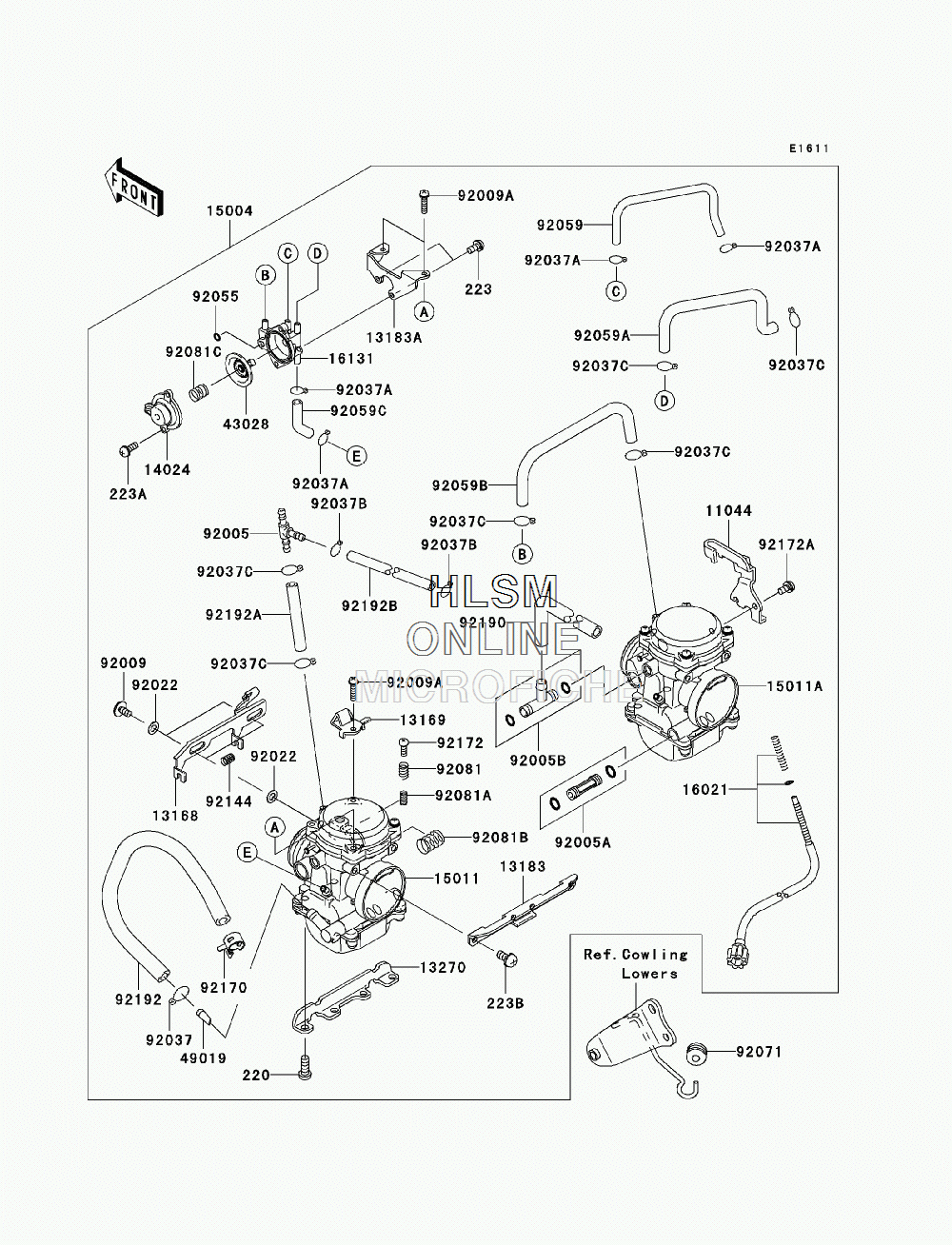

CARBURETOR для Kawasaki NINJA 250R (EX250JCF) - 2012 года выпуска
-
№АртикулНазвание
-
1104411044-1061 BRACKET,THROTTLE CABLEBRACKET,THROTTLE CABLE
-
1316813168-1330 LEVER,STARTERLEVER,STARTER
-
1316913169-1965 PLATE,STARTER CABLEPLATE,STARTER CABLE
-
1318313183-1029 PLATE,CARBURETOR STAY,UPPPLATE,CARBURETOR STAY,UPP
-
13183A13183-1031 PLATE,AIR CUT VALVEPLATE,AIR CUT VALVE
-
1327013270-1073 PLATE,CARBURETOR STAY,LWRPLATE,CARBURETOR STAY,LWR
-
1402414024-1327 COVER,AIR CUT VALVECOVER,AIR CUT VALVE
-
1500415004-0020 CARBURETOR-ASSY,CVK30CARBURETOR-ASSY,CVK30
-
1501115011-0120 CARBURETOR, LEFT HANDCARBURETOR, LEFT HAND
-
15011A15011-0121 CARBURETOR, RIGHT HANDCARBURETOR, RIGHT HAND
-
1602116021-0019 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1613116131-1062 BODY-VALVE,DIAPHRAGMBODY-VALVE,DIAPHRAGM
-
4302843028-1053 DIAPHRAGM,5.9MM,AIR CUT VALVEDIAPHRAGM,5.9MM,AIR CUT VALVE
-
4901949019-1097 FILTER-FUELFILTER-FUEL
-
9200592005-1112 FITTING,FUEL,T-TYPEFITTING,FUEL,T-TYPE
-
92005A92005-1310 FITTINGFITTING
-
92005B92005-1314 FITTINGFITTING
-
9200992009-1262 SCREWSCREW
-
92009A92009-1446 SCREW,4X18SCREW,4X18
-
9202292022-1199 WASHER,6.1X11X0.8,POLYACETALWASHER,6.1X11X0.8,POLYACETAL
-
9203792037-1075 CLAMP,FUEL TUBECLAMP,FUEL TUBE
-
92037A92037-1142 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1201 CLAMP,TUBECLAMP,TUBE
-
92037C92037-1477 CLAMP,TUBECLAMP,TUBE
-
9205592055-1245 RING-ORING-O
-
9205992059-1140 TUBE,3.5X6.5X180TUBE,3.5X6.5X180
-
92059A92059-1201 TUBE,5X9X160TUBE,5X9X160
-
92059B92059-1377 TUBE,5X9X180TUBE,5X9X180
-
92059C92059-1722 TUBE,3.5X6.5X26TUBE,3.5X6.5X26
-
9207192071-0038 GROMMETGROMMET
-
9208192081-1620 SPRINGSPRING
-
92081A92081-1621 SPRING,THROTTLE ADJUST LWRSPRING,THROTTLE ADJUST LWR
-
92081B92081-1622 SPRING,THROTTLE ADJUST CNTSPRING,THROTTLE ADJUST CNT
-
92081C92081-1719 SPRING,AIR CUT VALVESPRING,AIR CUT VALVE
-
9214492144-1048 SPRING,THROTTLE ADJUST UPPSPRING,THROTTLE ADJUST UPP
-
9217092170-1051 CLAMP,TUBECLAMP,TUBE
-
9217292172-0129 SCREWSCREW
-
92172A92172-0213 SCREWSCREW
-
9219092190-1064 TUBE,7X11X309TUBE,7X11X309
-
9219292192-0674 TUBE,7.3X12.5X270TUBE,7.3X12.5X270
-
220220AA0616 SCREW-PAN-CROSS,6X16SCREW-PAN-CROSS,6X16
-
223223AA0408 SCREW-PAN-WS-CROSS,4X8SCREW-PAN-WS-CROSS,4X8
-
223A223AA0410 SCREW-PAN-WS-CROSS,4X10SCREW-PAN-WS-CROSS,4X10
-
223B223AB0510 SCREW-PAN-WS-CROSS,5X10SCREW-PAN-WS-CROSS,5X10
-
92192A92192-0675 TUBE,5X9X60TUBE,5X9X60
-
92192B92192-0676 TUBE,4.5X8X160TUBE,4.5X8X160
