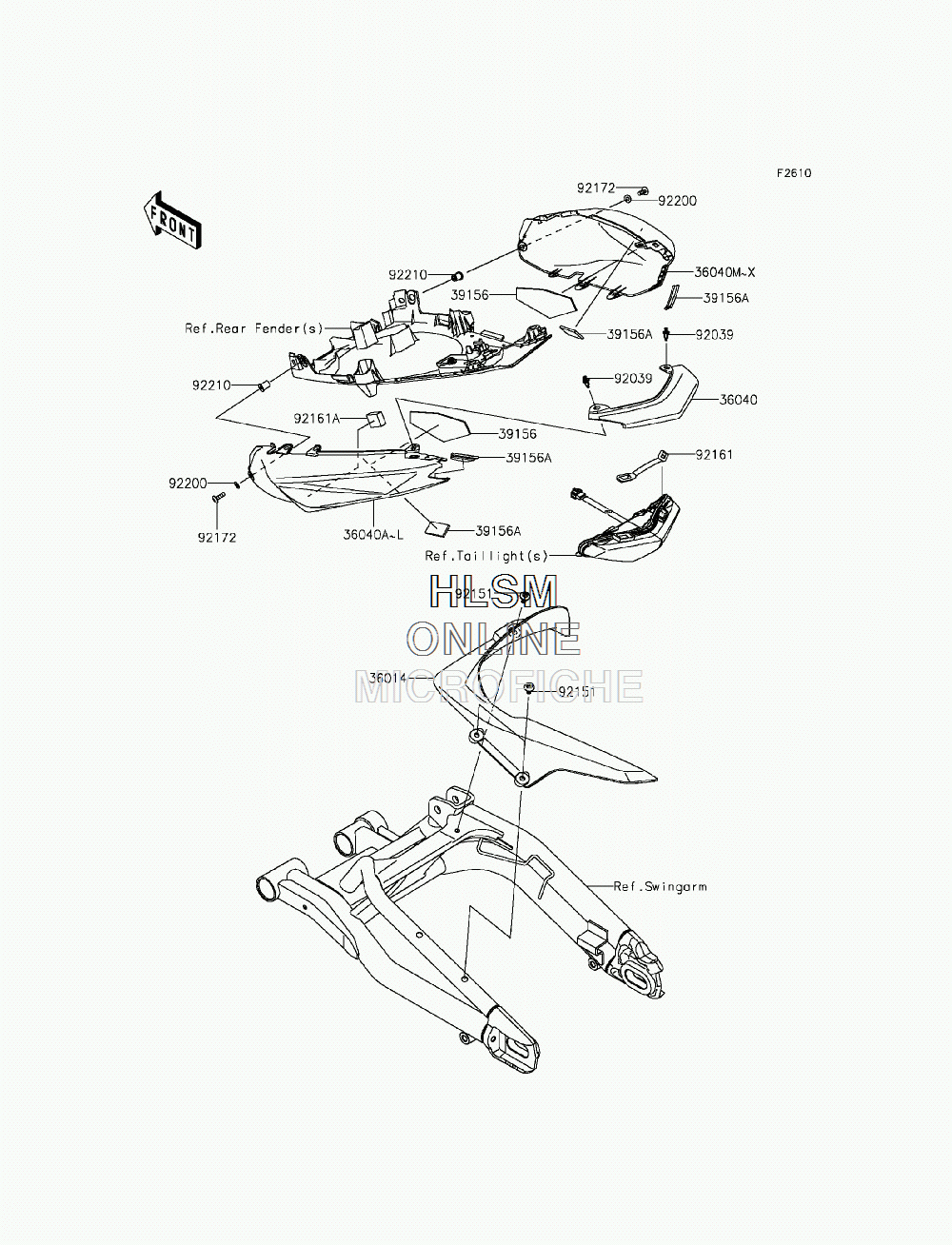

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA 650R (EX650ECF) - 2012 года выпуска
-
№АртикулНазвание
-
3601436014-0552 CASE-CHAINCASE-CHAIN
-
3604036040-0118 COVER-TAIL,CNTCOVER-TAIL,CNT
-
36040A36040-0119-15I COVER-TAIL, LEFT HAND,P.RED (USA ONLY) (FOR 15I)COVER-TAIL, LEFT HAND,P.RED (USA ONLY) (FOR 15I)
-
36040B36040-0119-15P COVER-TAIL, LEFT HAND,C.L.GREEN (FOR 15P)COVER-TAIL, LEFT HAND,C.L.GREEN (FOR 15P)
-
36040D36040-0119-15Z COVER-TAIL, LEFT HAND,M.S.BLACK (FOR 15Z)COVER-TAIL, LEFT HAND,M.S.BLACK (FOR 15Z)
-
36040M36040-0120-15I COVER-TAIL, RIGHT HAND,P.RED (USA ONLY) (FOR 15I)COVER-TAIL, RIGHT HAND,P.RED (USA ONLY) (FOR 15I)
-
36040N36040-0120-15P COVER-TAIL, RIGHT HAND,C.L.GREEN (FOR 15P)COVER-TAIL, RIGHT HAND,C.L.GREEN (FOR 15P)
-
36040P36040-0120-15Z COVER-TAIL, RIGHT HAND,M.S.BLACK (FOR 15Z)COVER-TAIL, RIGHT HAND,M.S.BLACK (FOR 15Z)
-
3915639156-0801 PADPAD
-
39156A39156-0831 PAD,20X40X3PAD,20X40X3
-
9203992039-0023 RIVETRIVET
-
9215192151-1654 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9216192161-0625 DAMPER,TAIL LAMP UPPERDAMPER,TAIL LAMP UPPER
-
92161A92161-0718 DAMPERDAMPER
-
9217292172-0479 SCREW,5X16SCREW,5X16
-
9220092200-1480 WASHER,NYLON,5.3X11.5X0.5WASHER,NYLON,5.3X11.5X0.5
-
9221092210-0498 NUT,WELL,5MMNUT,WELL,5MM
