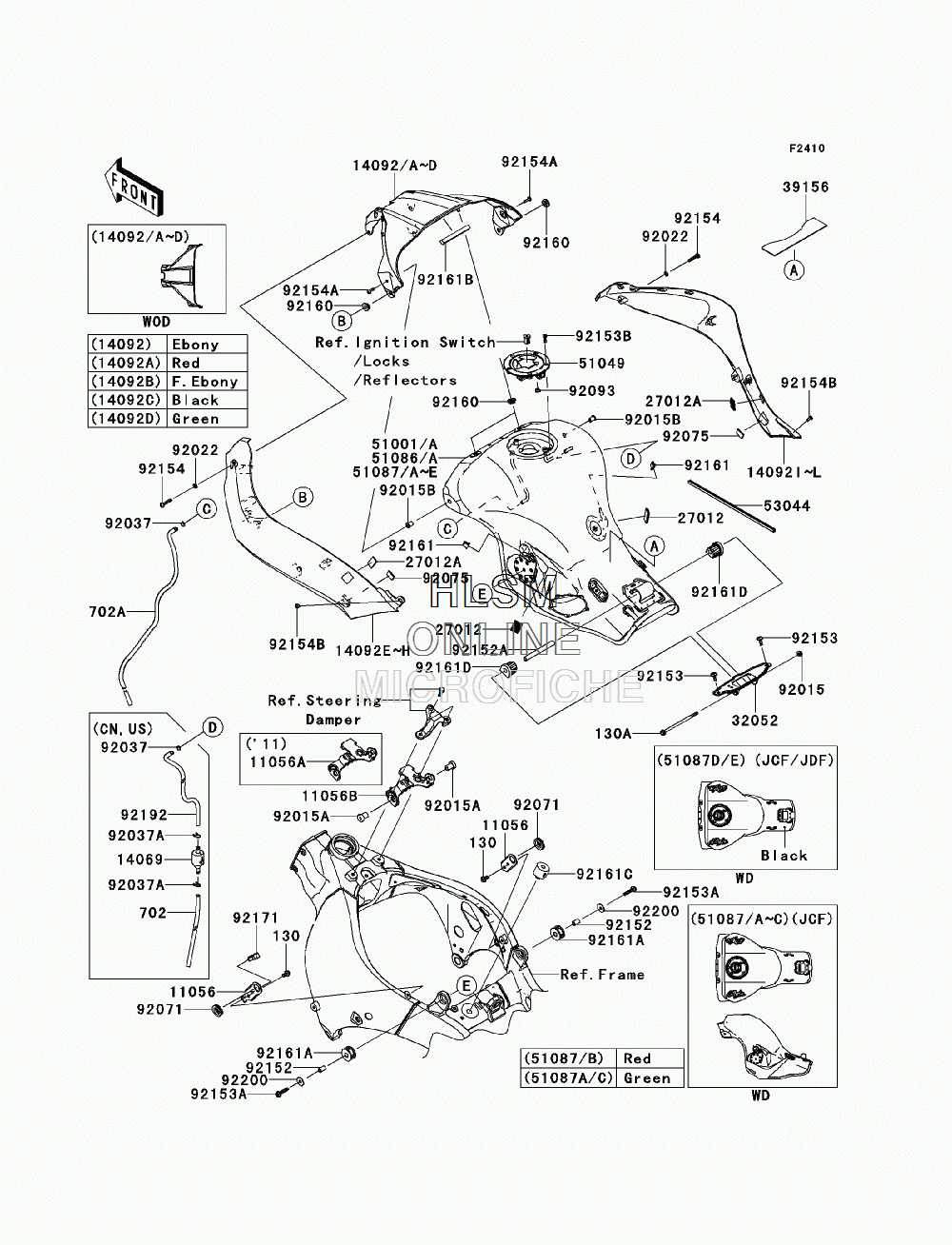

FUEL TANK для Kawasaki NINJA ZX-10R (ZX1000JCF) - 2012 года выпуска
-
№АртикулНазвание
-
1105611056-0242 BRACKET, TANK COVER, SIDEBRACKET, TANK COVER, SIDE
-
11056B11056-1655 BRACKET, TANK COVER, FRONTBRACKET, TANK COVER, FRONT
-
1406914069-1004 BREATHER, FUEL TANK (EXCEPT CALIF.)BREATHER, FUEL TANK (EXCEPT CALIF.)
-
14092A14092-0786-234 COVER, TANK, CNT, (P.RED) (FOR 234)COVER, TANK, CNT, (P.RED) (FOR 234)
-
14092C14092-0786-660 COVER, TANK, CNT, (M.S.BLACK) (USA ONLY) (FOR 33P)COVER, TANK, CNT, (M.S.BLACK) (USA ONLY) (FOR 33P)
-
14092D14092-0786-777 COVER, TANK, CNT, (L.GREEN) (FOR 777)COVER, TANK, CNT, (L.GREEN) (FOR 777)
-
14092G14092-0787-660 COVER, TANK, LEFT HAND, (M.S.BLACK)COVER, TANK, LEFT HAND, (M.S.BLACK)
-
14092K14092-0788-660 COVER, TANK, RIGHT HAND, (M.S.BLACK)COVER, TANK, RIGHT HAND, (M.S.BLACK)
-
2701227012-0170 HOOKHOOK
-
27012A27012-0171 HOOKHOOK
-
3205232052-0154 BRACKET-TANKBRACKET-TANK
-
3915639156-0745 PAD, 40X180X1.0PAD, 40X180X1.0
-
5104951049-0030 CAP-TANK, FUELCAP-TANK, FUEL
-
5108751087-5221-234 TANK-COMP-FUEL, (P.RED) (EXCEPT CALIF.) (FOR 234)TANK-COMP-FUEL, (P.RED) (EXCEPT CALIF.) (FOR 234)
-
51087A51087-5223-777 TANK-COMP-FUEL, (L.GREEN) (EXCEPT CALIF.) (FOR 777)TANK-COMP-FUEL, (L.GREEN) (EXCEPT CALIF.) (FOR 777)
-
51087B51087-5224-234 TANK-COMP-FUEL, (P.RED) (CALIF. ONLY) (FOR 234)TANK-COMP-FUEL, (P.RED) (CALIF. ONLY) (FOR 234)
-
51087C51087-5226-777 TANK-COMP-FUEL, (L.GREEN) (CALIF. ONLY) (FOR 777)TANK-COMP-FUEL, (L.GREEN) (CALIF. ONLY) (FOR 777)
-
130130AA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0675 BOLT-FLANGED, 6X75BOLT-FLANGED, 6X75
-
702702A06200 TUBE-RUBBER, 6X200 (EXCEPT CALIF.)TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
-
51087D51087-5336-660 TANK-COMP-FUEL, (M.S.BLACK) (EXCEPT CALIF.) (FOR 33P)TANK-COMP-FUEL, (M.S.BLACK) (EXCEPT CALIF.) (FOR 33P)
-
51087E51087-5337-660 TANK-COMP-FUEL, M.S.BLACK (CALIF. ONLY) (FOR 33P)TANK-COMP-FUEL, M.S.BLACK (CALIF. ONLY) (FOR 33P)
-
5304453044-1296 TRIMTRIM
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9203792037-010 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9203792037-010 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
92037A92037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9207192071-1043 GROMMETGROMMET
-
9207592075-1982 DAMPER, IGNITIONDAMPER, IGNITION
-
9209392093-1030 SEAL, FUEL TANK CAPSEAL, FUEL TANK CAP
-
9215292152-0883 COLLAR, 6.8X10X18.5COLLAR, 6.8X10X18.5
-
92152A92152-1182 COLLAR, 6.8X10X60COLLAR, 6.8X10X60
-
9215392153-1526 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92153A92153-1580 BOLT, FLANGED, 6X28BOLT, FLANGED, 6X28
-
92153B92153-1616 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9215492154-0206 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92154A92154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154B92154-0211 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0365 DAMPERDAMPER
-
92161A92161-0869 DAMPER, 10X30X16DAMPER, 10X30X16
-
92161B92161-0963 DAMPER, 10X90X10DAMPER, 10X90X10
-
92161C92161-1116 DAMPERDAMPER
-
92161D92161-1330 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
-
9217192171-0782 CLAMPCLAMP
-
9219292192-0975 TUBE, 6X9X(770) (EXCEPT CALIF.)TUBE, 6X9X(770) (EXCEPT CALIF.)
-
9220092200-1087 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
-
702A702A06750 TUBE-RUBBER, 6X9X750TUBE-RUBBER, 6X9X750
