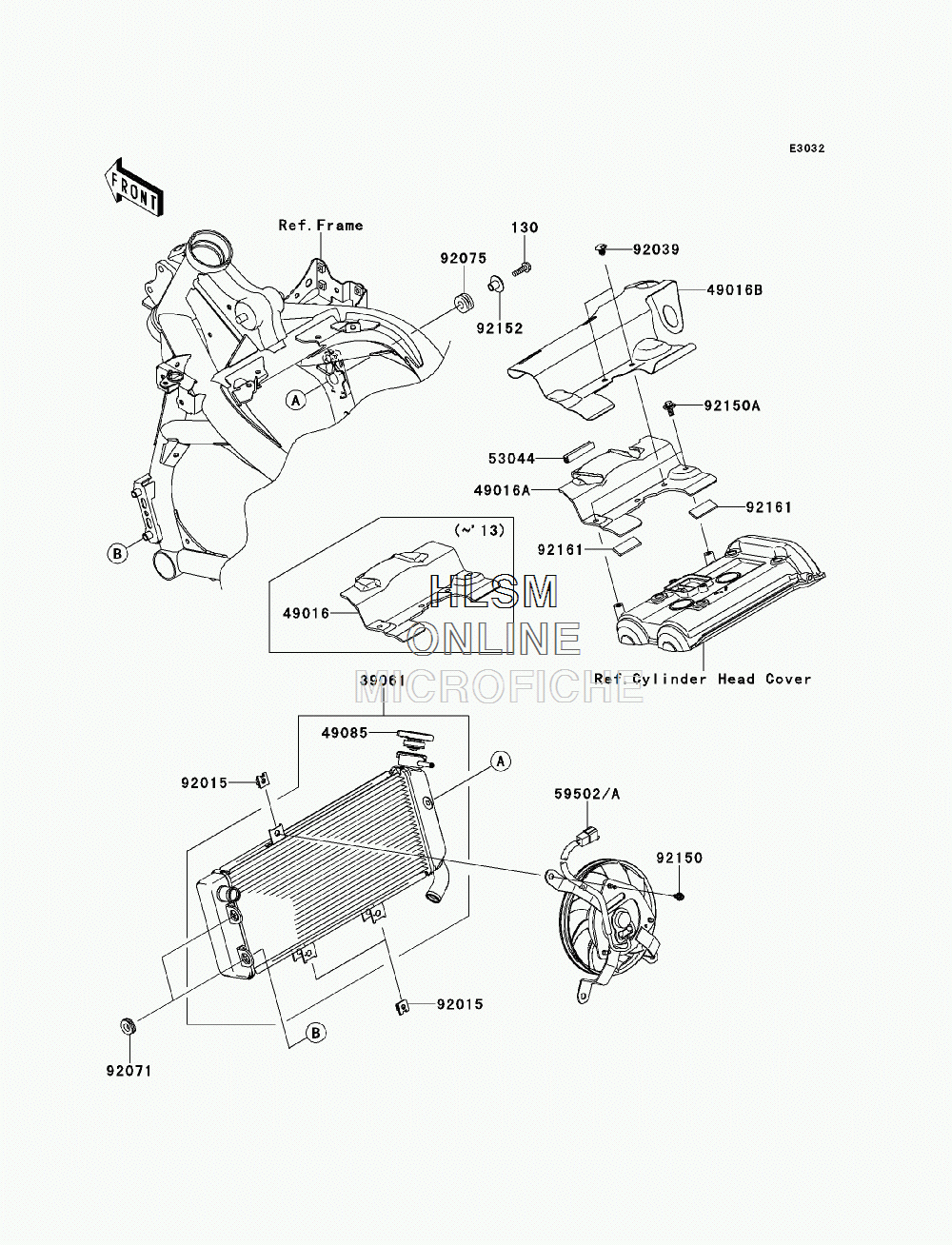

RADIATOR для Kawasaki VERSYS (KLE650CCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130BA0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
3906139061-0217 RADIATOR-ASSYRADIATOR-ASSY
-
4901649016-0566 COVER-SEALCOVER-SEAL
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5304453044-1185 TRIM, L=50TRIM, L=50
-
5950259502-0041 FAN-ASSYFAN-ASSY
-
9201592015-1487 NUTNUT
-
9207192071-1115 GROMMETGROMMET
-
9207592075-1690 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
92150A92150-1689 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9215292152-0910 COLLAR, 6.5X10X13.1COLLAR, 6.5X10X13.1
-
9216192161-0301 DAMPERDAMPER
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COWLING
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (BLACK) (USA ONLY)
- DECALS (YELLOW)
- ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- • RADIATOR
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAIL COVER
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PIPE
- WATER PUMP
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
