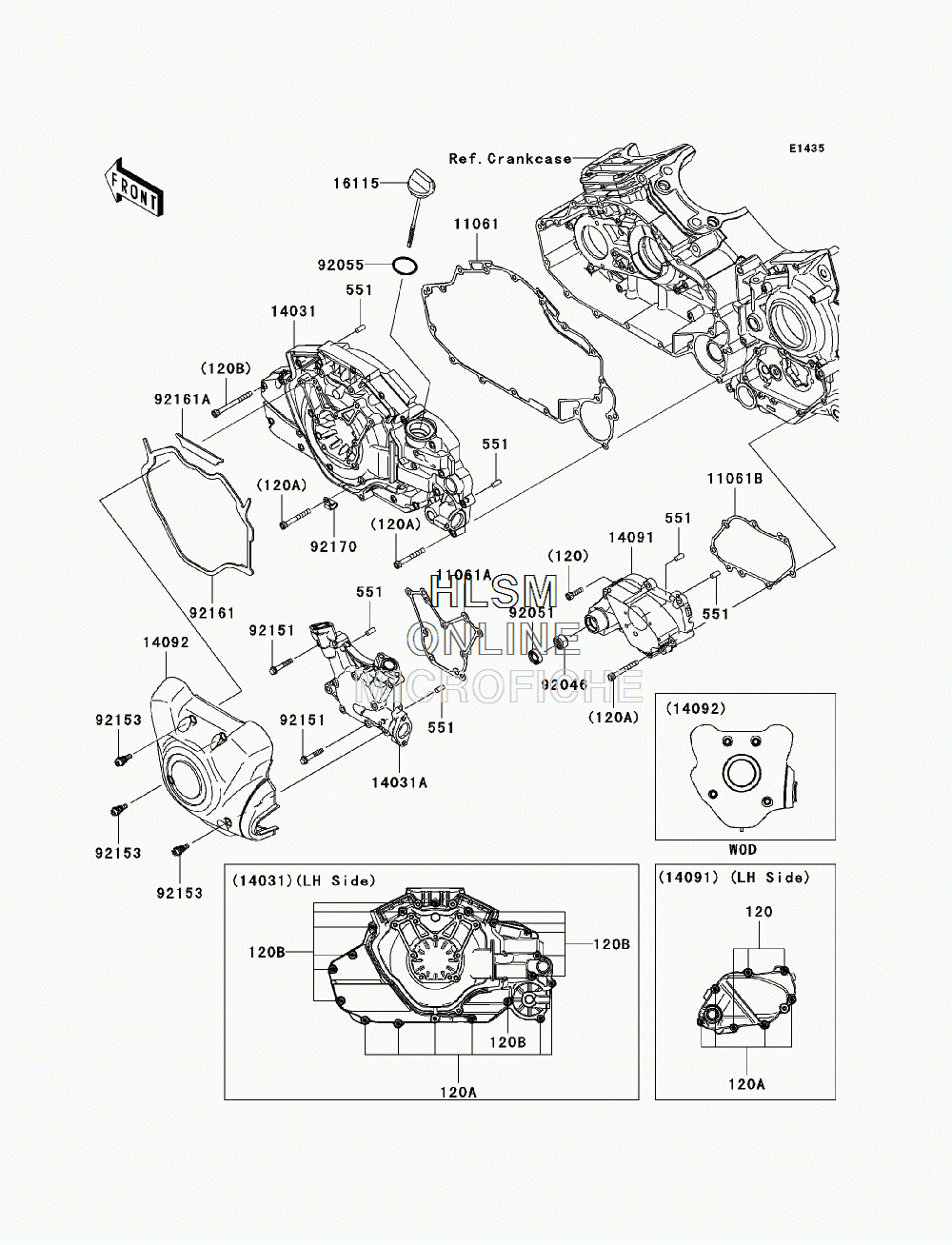

ENGINE COVER(S) - LEFT для Kawasaki VULCAN 1700 VAQUERO (VN1700JCFA) - 2012 года выпуска
-
№АртикулНазвание
-
120120CC0622 BOLT-SOCKET,6X22BOLT-SOCKET,6X22
-
120A120CC0650 BOLT-SOCKET,6X50BOLT-SOCKET,6X50
-
120B120CC0670 BOLT-SOCKET,6X70BOLT-SOCKET,6X70
-
551551A0614 PIN-DOWEL,6X14PIN-DOWEL,6X14
-
1106111061-0338 GASKET,GENERATOR COVER,INGASKET,GENERATOR COVER,IN
-
11061A11061-0339 GASKET,GENERATOR COVER,MIDGASKET,GENERATOR COVER,MID
-
11061B11061-0340 GASKET,CHANGE COVERGASKET,CHANGE COVER
-
1403114031-0093 COVER-GENERATOR,INNERCOVER-GENERATOR,INNER
-
14031A14031-0094 COVER-GENERATOR,MIDDLECOVER-GENERATOR,MIDDLE
-
1409114091-1807 COVER,CHANGECOVER,CHANGE
-
1409214092-0245 COVER,GENERATOR OUTERCOVER,GENERATOR OUTER
-
1611516115-0019 CAP-OIL FILLERCAP-OIL FILLER
-
9204692046-1148 BEARING-NEEDLE,HK1312BEARING-NEEDLE,HK1312
-
9205192051-005 SEAL-OIL,TB13225.5SEAL-OIL,TB13225.5
-
9205592055-049 RING-O,31.5X2.6RING-O,31.5X2.6
-
9215192151-1624 BOLT,6X35BOLT,6X35
-
9215392153-1331 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
9216192161-0668 DAMPERDAMPER
-
92161A92161-0672 DAMPERDAMPER
-
9217092170-1577 CLAMPCLAMP
