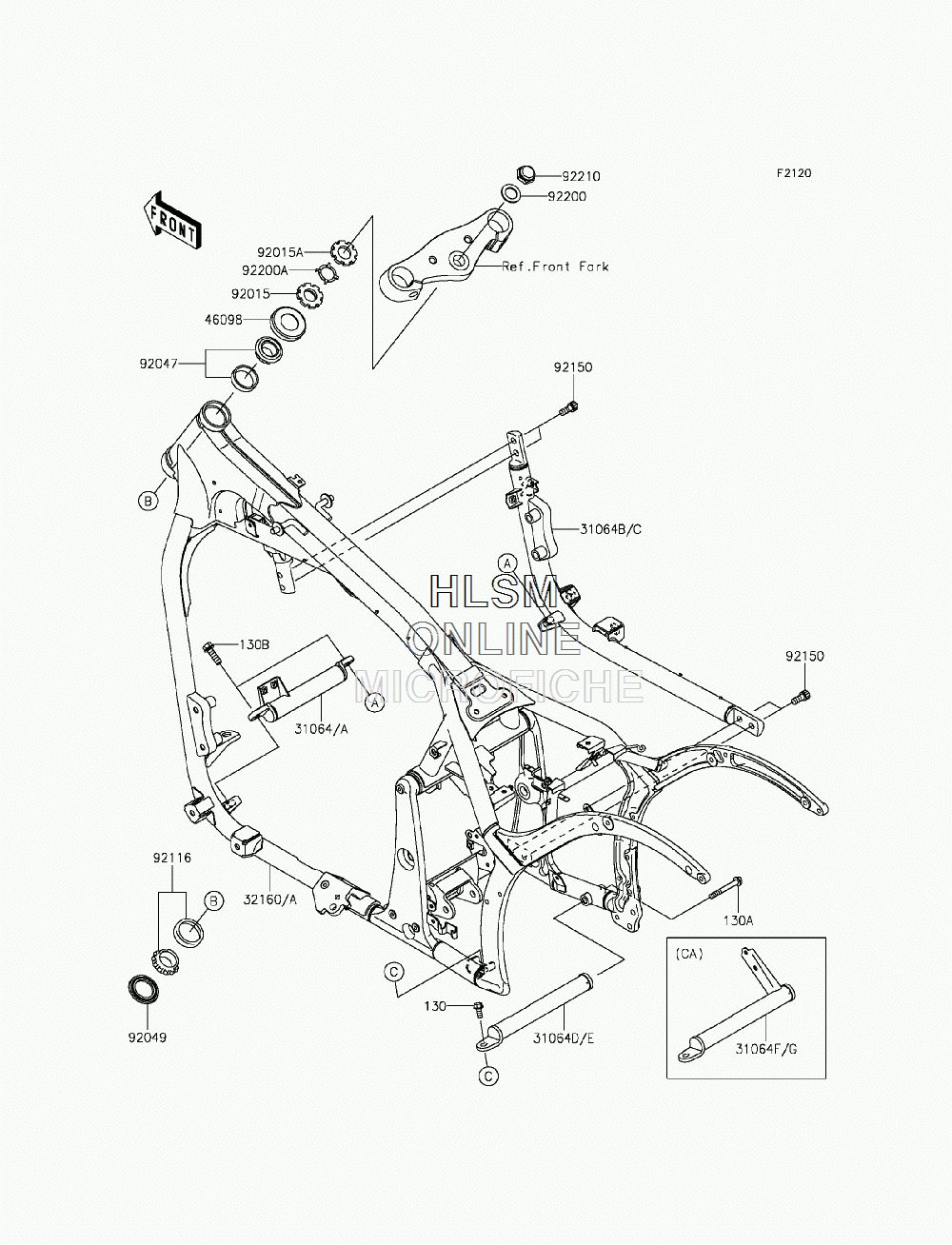

FRAME для Kawasaki VULCAN 900 CUSTOM (VN900CCFA) - 2012 года выпуска
-
№АртикулНазвание
-
130130BB0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
130A130BB0865 BOLT-FLANGED,8X65BOLT-FLANGED,8X65
-
130B130BB1025 BOLT-FLANGED,10X25BOLT-FLANGED,10X25
-
3106431064-0047-18R PIPE-COMP, FRONT CROSS,(F.S.BLACK)PIPE-COMP, FRONT CROSS,(F.S.BLACK)
-
31064B31064-0097-18R PIPE-COMP,DOWNTUBE, RIGHT HAND,(F.S.BLACK)PIPE-COMP,DOWNTUBE, RIGHT HAND,(F.S.BLACK)
-
31064D31064-0183-18R PIPE-COMP, REAR CROSS,F.S.BLACK (EXCEPT CALIF.)PIPE-COMP, REAR CROSS,F.S.BLACK (EXCEPT CALIF.)
-
31064F31064-0184-18R PIPE-COMP, REAR CROSS,F.S.BLACK (CALIF. ONLY)PIPE-COMP, REAR CROSS,F.S.BLACK (CALIF. ONLY)
-
3216032160-0597-18R FRAME-COMP,(F.S.BLACK)FRAME-COMP,(F.S.BLACK)
-
4609846098-017 CAP,STEERING STEMCAP,STEERING STEM
-
9201592015-1377 NUT,25MM,T=10NUT,25MM,T=10
-
92015A92015-1378 NUT,25MM,T=6NUT,25MM,T=6
-
9204792047-017 RACE,ROLLER,32005JR RSRACE,ROLLER,32005JR RS
-
9204992049-1162 SEAL-OIL,XMHE36X52X4JSEAL-OIL,XMHE36X52X4J
-
9211692116-1009 BEARING-ROLLER,HR320/28XJBEARING-ROLLER,HR320/28XJ
-
9215092150-1942 BOLT,SOCKET,10X23BOLT,SOCKET,10X23
-
9220092200-0270 WASHER,22.5X36X2.3WASHER,22.5X36X2.3
-
92200A92200-0353 WASHER,CLAW,25.5X34X0.6WASHER,CLAW,25.5X34X0.6
-
9221092210-0263 NUT,CAP,22MMNUT,CAP,22MM
