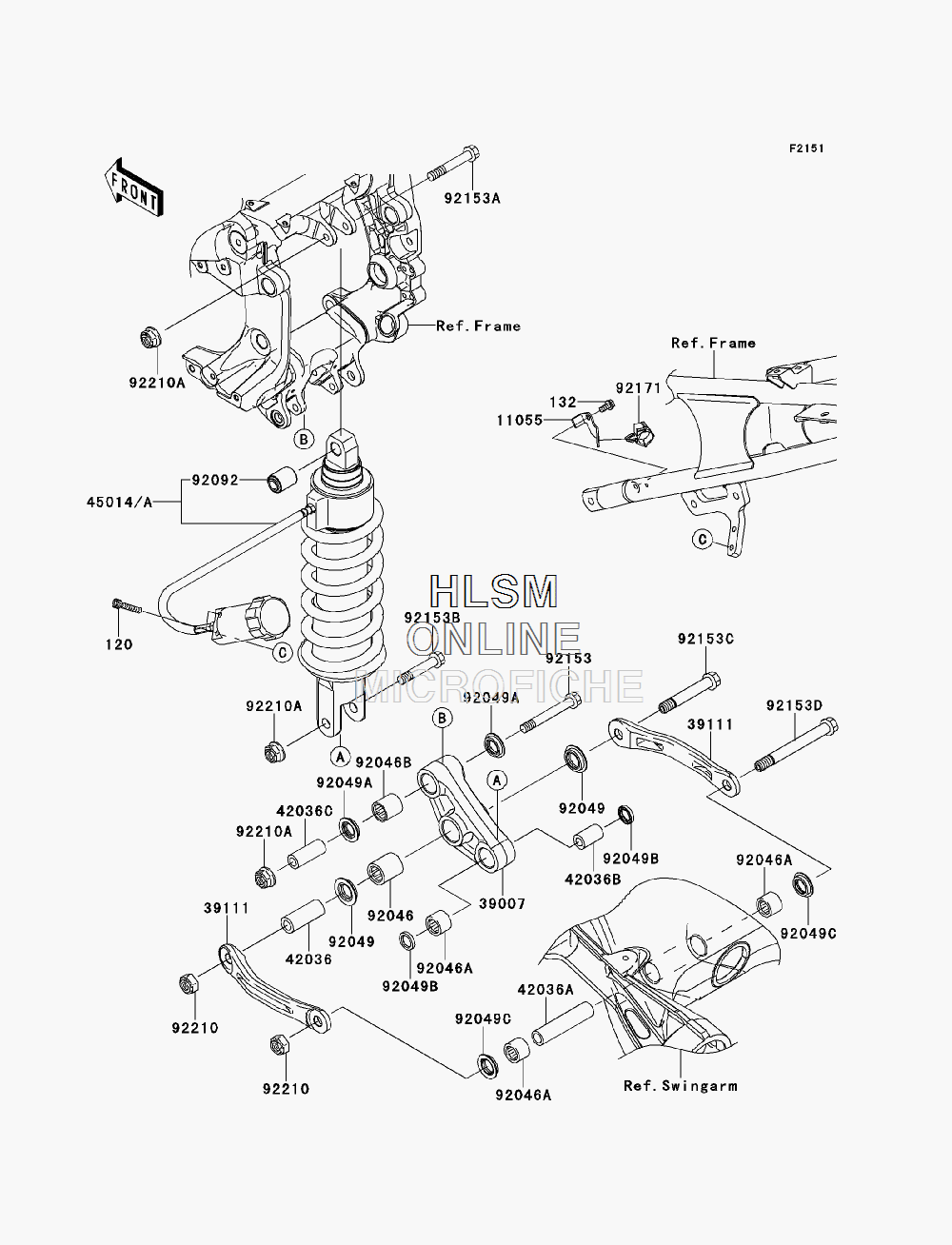

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki CONCOURS 14 ABS (ZG1400CDF) - 2013 года выпуска
-
№АртикулНазвание
-
120120CA0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1105511055-1298 BRACKETBRACKET
-
3900739007-0120 ARM-SUSPARM-SUSP
-
3911139111-0038 ROD-TIE, SUSPENSIONROD-TIE, SUSPENSION
-
4203642036-1111 SLEEVE, 12.1X20X50SLEEVE, 12.1X20X50
-
42036A42036-1231 SLEEVE, 12.1X18X82SLEEVE, 12.1X18X82
-
42036B42036-1258 SLEEVE, 10.1X18X30SLEEVE, 10.1X18X30
-
42036C42036-1342 SLEEVE, 10.1X17X44.5SLEEVE, 10.1X17X44.5
-
45014A45014-0410-23A SHOCK, SPRING (SILVER) + BODY (BLACK)SHOCK, SPRING (SILVER) + BODY (BLACK)
-
9204692046-0029 BEARING-NEEDLE, 7E-HVS20X27X30BEARING-NEEDLE, 7E-HVS20X27X30
-
92046A92046-1272 BEARING-NEEDLE, SFYZM182417BEARING-NEEDLE, SFYZM182417
-
92046B92046-1273 BEARING-NEEDLE, SFYZM172425BEARING-NEEDLE, SFYZM172425
-
9204992049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
92049A92049-1223 SEAL-OIL, MHA17245.7FSEAL-OIL, MHA17245.7F
-
92049B92049-1225 SEAL-OIL, MHA18244SEAL-OIL, MHA18244
-
92049C92049-1493 SEAL-OIL, KCR MF018N1SEAL-OIL, KCR MF018N1
-
9209292092-1058 BUSHING-RUBBERBUSHING-RUBBER
-
9215392153-1613 BOLT, FLANGED, 10X77BOLT, FLANGED, 10X77
-
92153A92153-1614 BOLT, FLANGED, 10X62BOLT, FLANGED, 10X62
-
92153B92153-1615 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
92153C92153-1844 BOLT, FLANGED, 12X76BOLT, FLANGED, 12X76
-
92153D92153-1845 BOLT, FLANGED, 12X111BOLT, FLANGED, 12X111
-
9217192171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9221092210-0274 NUT, LOCK, 12MMNUT, LOCK, 12MM
-
92210A92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
