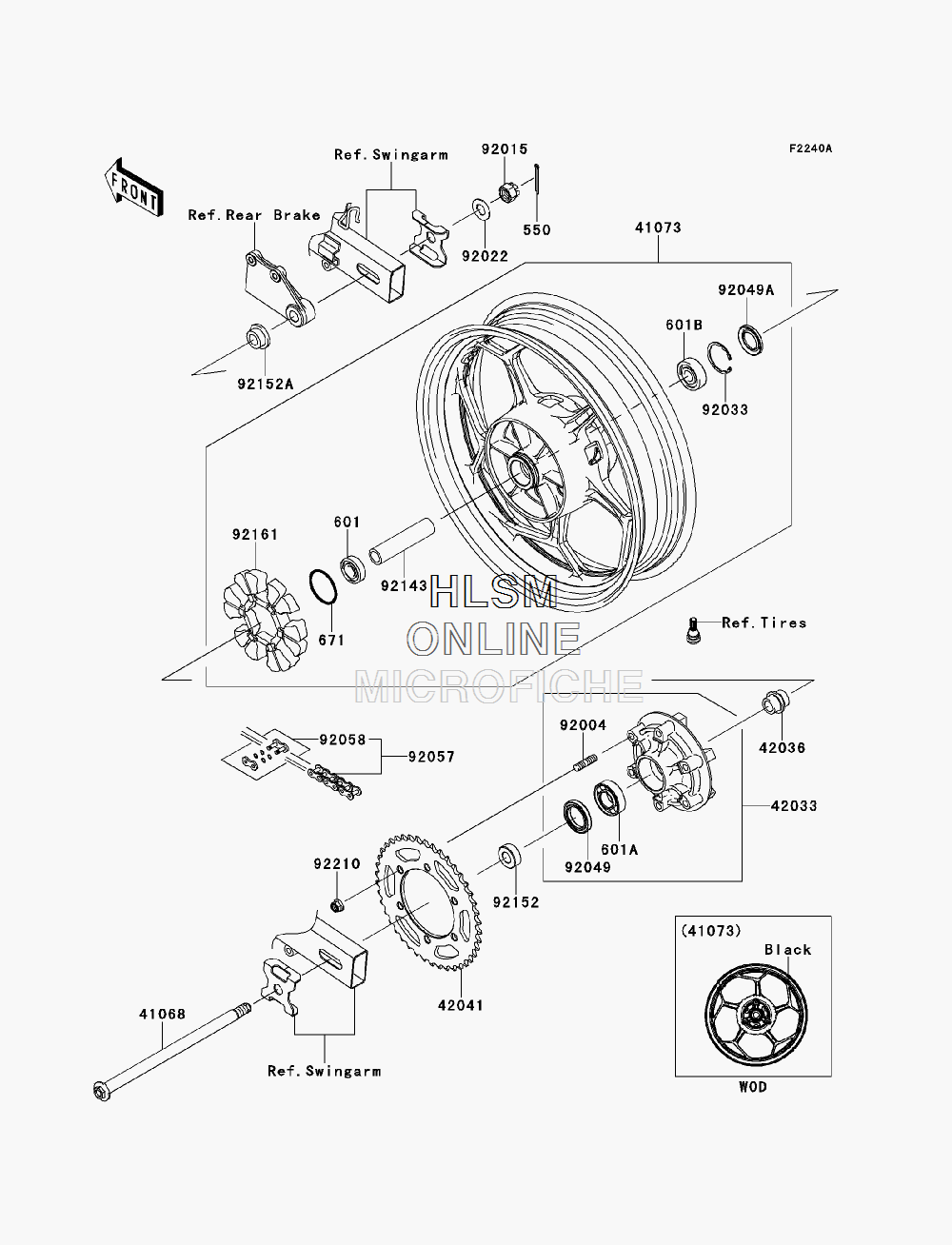

WHEEL - REAR W/ CHAIN (USA ONLY) для Kawasaki NINJA 300 (EX300ADF) - 2013 года выпуска
-
№АртикулНазвание
-
4106841068-1223 AXLE, REARAXLE, REAR
-
4107341073-0605-R2 WHEEL-ASSY, REAR. (BLACK)WHEEL-ASSY, REAR. (BLACK)
-
4203342033-0574 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1055 SLEEVE, REAR HUB, L=30SLEEVE, REAR HUB, L=30
-
4204142041-0118 SPROCKET-HUB, 42TSPROCKET-HUB, 42T
-
9200492004-0048 STUD, 10X19STUD, 10X19
-
9201592015-1947 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
-
9202292022-1916 WASHER, 17.5X34X2.0WASHER, 17.5X34X2.0
-
9203392033-1042 RING-SNAP, 47MMRING-SNAP, 47MM
-
9204992049-0730 SEAL-OIL, 35X52X7SEAL-OIL, 35X52X7
-
92049A92049-1056 SEAL-OIL, BJN28475SEAL-OIL, BJN28475
-
9205792057-0019 CHAIN, DRIVE, EK520SR-O2X106LCHAIN, DRIVE, EK520SR-O2X106L
-
9205892058-1102 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9214392143-1416 COLLAR, REAR HUB, L=111COLLAR, REAR HUB, L=111
-
9215292152-0843 COLLAR, 17X35X13COLLAR, 17X35X13
-
92152A92152-0844 COLLAR, 17X28(38)X15COLLAR, 17X28(38)X15
-
9216192161-0700 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
550550AA4035 PIN-COTTER, 4.0X35PIN-COTTER, 4.0X35
-
601601B6203UU BEARING-BALL, #6203UUC3BEARING-BALL, #6203UUC3
-
601A601B6205G BEARING-BALL, #6205GBEARING-BALL, #6205G
-
601B601B6303UU BEARING-BALL, 6303LLUC3/2ASU68BEARING-BALL, 6303LLUC3/2ASU68
-
671671B2550 O RINGO RING
