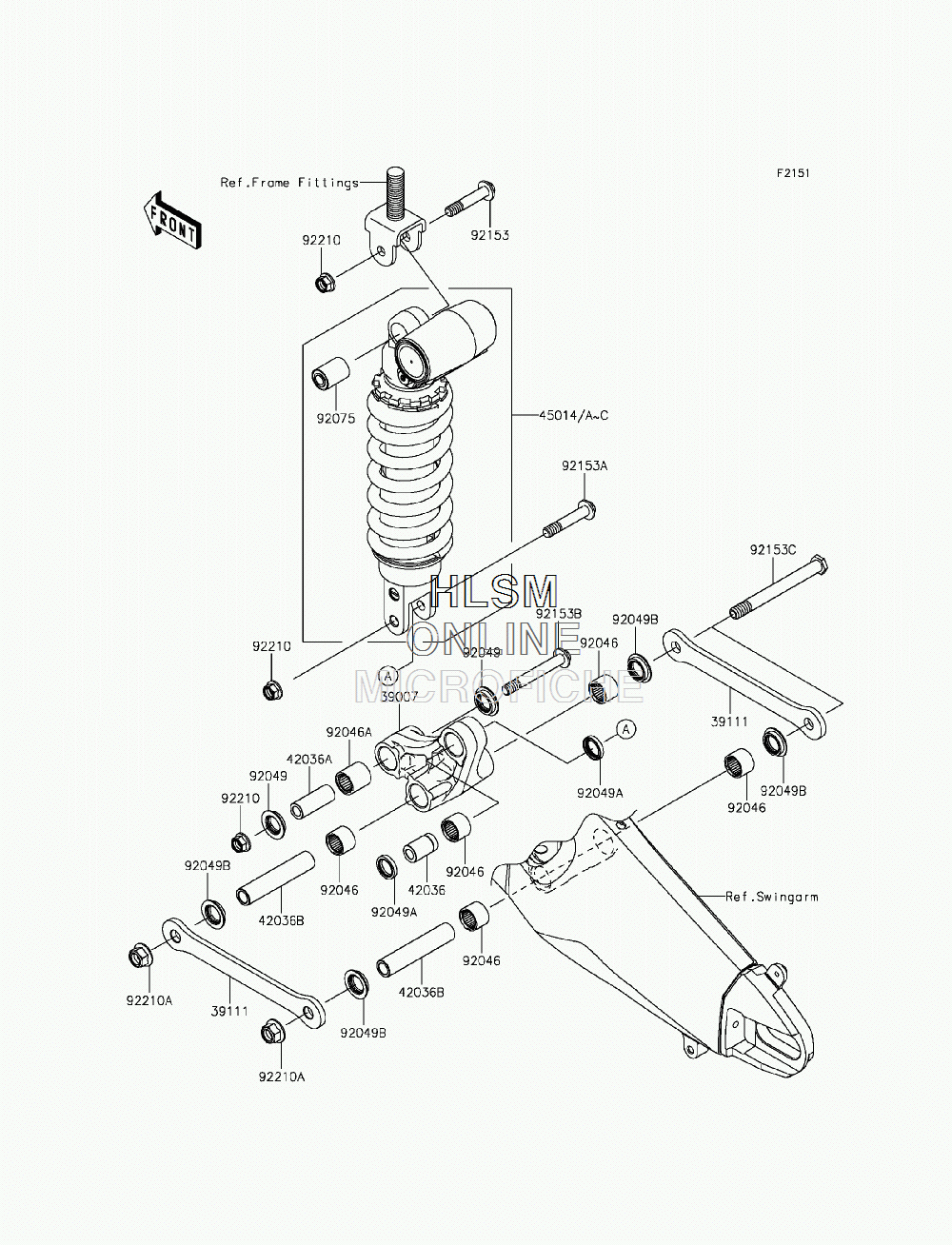

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA ZX-6R (ZX636EDF) - 2013 года выпуска
-
№АртикулНазвание
-
3900739007-0045 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0316 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-1258 SLEEVE,10.1X18X30SLEEVE,10.1X18X30
-
42036A42036-1342 SLEEVE,10.1X17X44.5SLEEVE,10.1X17X44.5
-
42036B42036-1360 SLEEVE,12.1X18X90SLEEVE,12.1X18X90
-
4501445014-0393-23F SHOCK ABSORBER,SPG (WHITE)+BODY (BLACK) (FOR 777) (FOR 46K)SHOCK ABSORBER,SPG (WHITE)+BODY (BLACK) (FOR 777) (FOR 46K)
-
45014A45014-0393-23G SHOCK ABSORBER,SPG (RED)+BODY (BLACK) (FOR 40X;660) (FOR 660;777)SHOCK ABSORBER,SPG (RED)+BODY (BLACK) (FOR 40X;660) (FOR 660;777)
-
9204692046-1272 BEARING-NEEDLE,SFYZM182417BEARING-NEEDLE,SFYZM182417
-
92046A92046-1273 BEARING-NEEDLE,SFYZM172425BEARING-NEEDLE,SFYZM172425
-
9204992049-1223 SEAL-OIL,MHA17245.7FSEAL-OIL,MHA17245.7F
-
92049A92049-1225 SEAL-OIL,MHA18244SEAL-OIL,MHA18244
-
92049B92049-1493 SEAL-OIL,KCR MF018N1SEAL-OIL,KCR MF018N1
-
9207592075-1426 DAMPER,SHOCK ABSORBERDAMPER,SHOCK ABSORBER
-
9215392153-1545 BOLT,FLANGED,10X51BOLT,FLANGED,10X51
-
92153A92153-1546 BOLT,FLANGED,10X55BOLT,FLANGED,10X55
-
92153B92153-1547 BOLT,FLANGED,10X77BOLT,FLANGED,10X77
-
92153C92153-1662 BOLT,12X114BOLT,12X114
-
9221092210-1139 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1150 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
