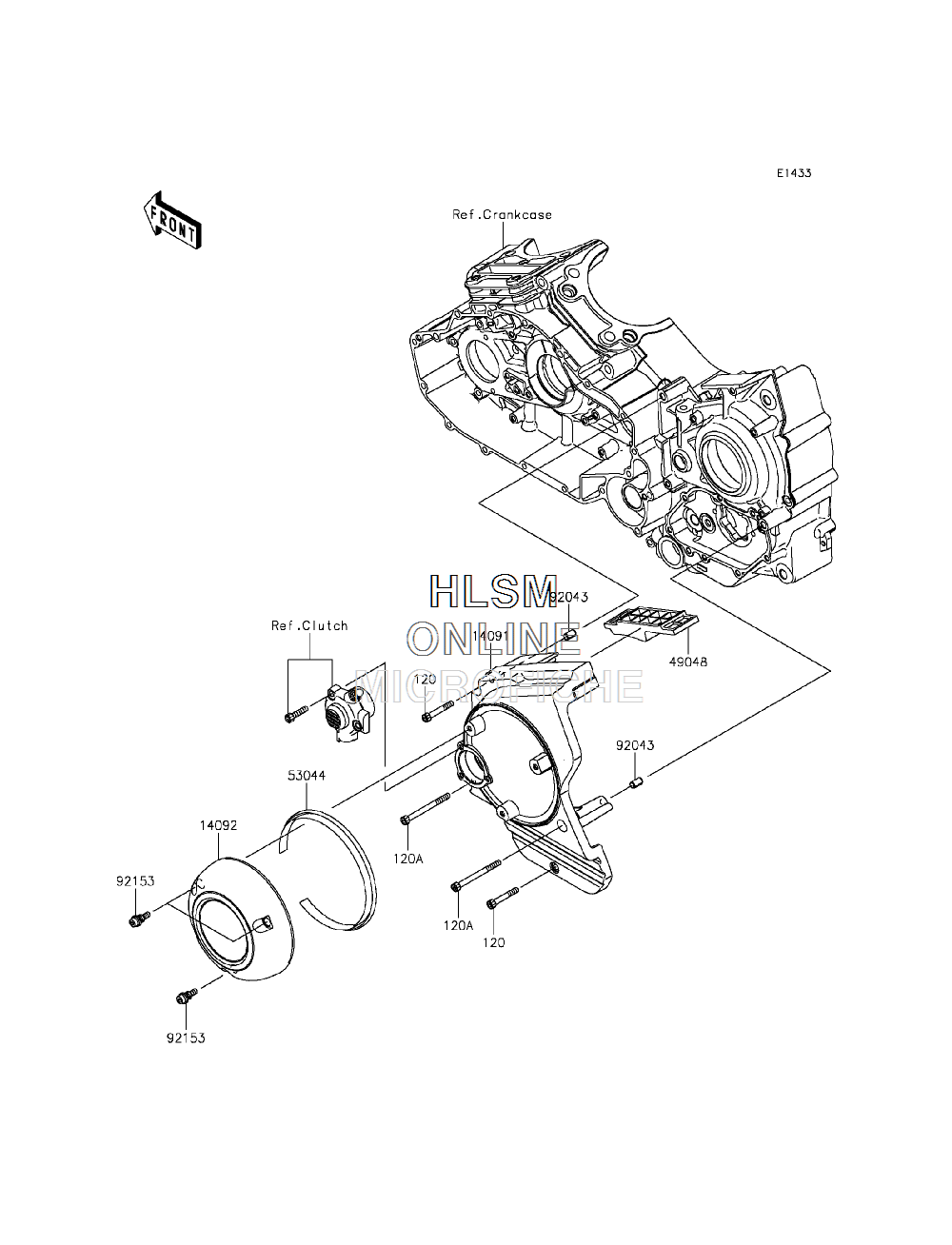

CHAIN COVER для Kawasaki VN1700 (VN1700KDF) - 2013 года выпуска
-
№АртикулНазвание
-
120120CC0640 BOLT-SOCKET, 6X40BOLT-SOCKET, 6X40
-
120A120CC0670 BOLT-SOCKET, 6X70BOLT-SOCKET, 6X70
-
1409114091-0970 COVER, PULLEYCOVER, PULLEY
-
1409214092-0246 COVER, PULLEY OUTERCOVER, PULLEY OUTER
-
4904849048-0004 SHOESHOE
-
5304453044-0047 TRIM, ISOLATORTRIM, ISOLATOR
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9215392153-1331 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
