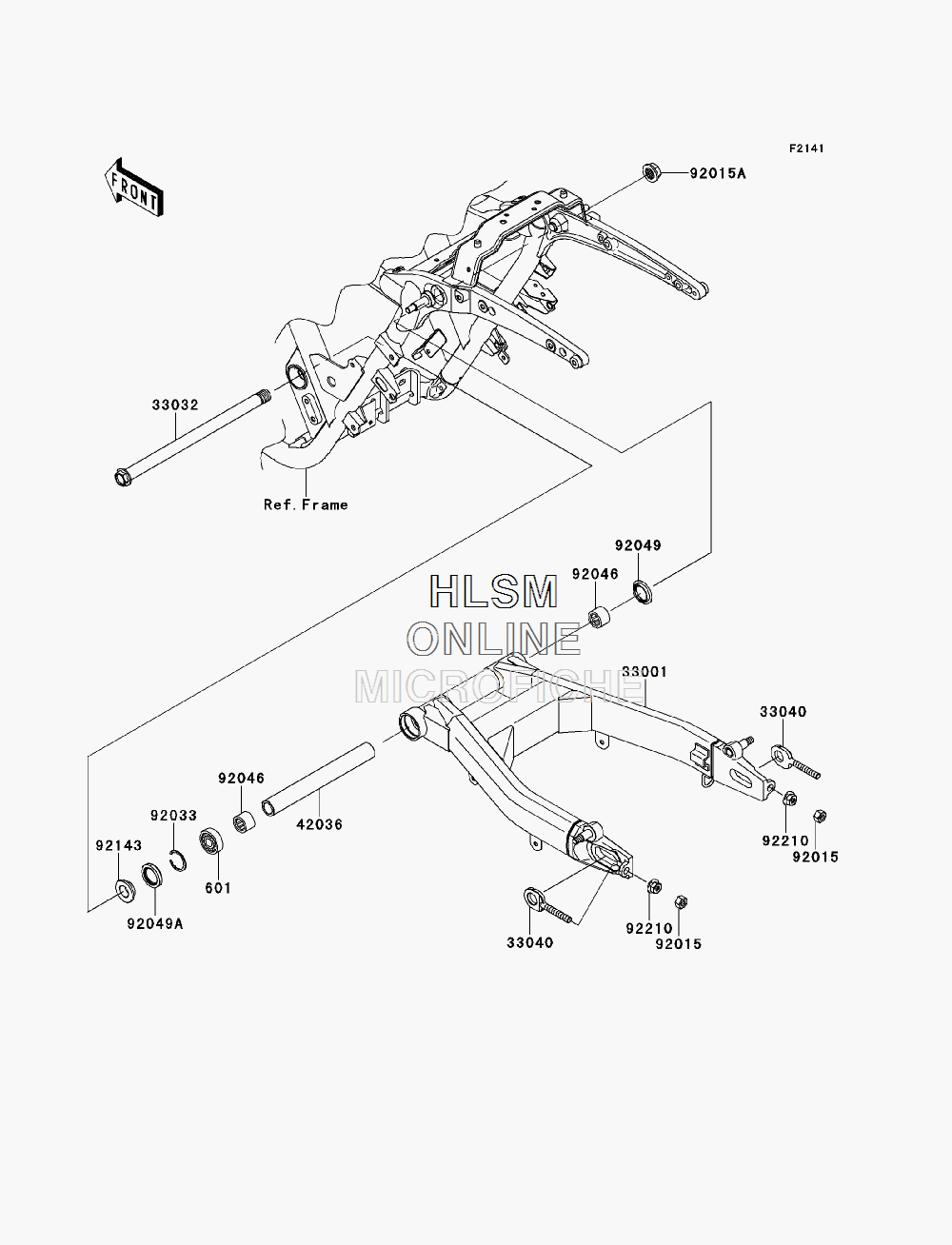

SUSPENSION - SWINGARM для Kawasaki VULCAN 1700 NOMAD (VN1700CDF) - 2013 года выпуска
-
№АртикулНазвание
-
601601A6004 BEARING-BALL, #6004BEARING-BALL, #6004
-
3300133001-0205-18R ARM-COMP-SWING, (F.S.BLACK)ARM-COMP-SWING, (F.S.BLACK)
-
3303233032-0031 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0005 ADJUSTER-CHAINADJUSTER-CHAIN
-
4203642036-0059 SLEEVE, SWING ARM, L=235.5SLEEVE, SWING ARM, L=235.5
-
9201592015-1494 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204692046-1202 BEARING-NEEDLE, BM2824BEARING-NEEDLE, BM2824
-
9204992049-1181 SEAL-OILSEAL-OIL
-
92049A92049-1185 SEAL-OIL, TC28426.5SEAL-OIL, TC28426.5
-
9214392143-1727 COLLAR, SWING ARM, RIGHT HAND, L=12.5COLLAR, SWING ARM, RIGHT HAND, L=12.5
-
9221092210-0349 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
