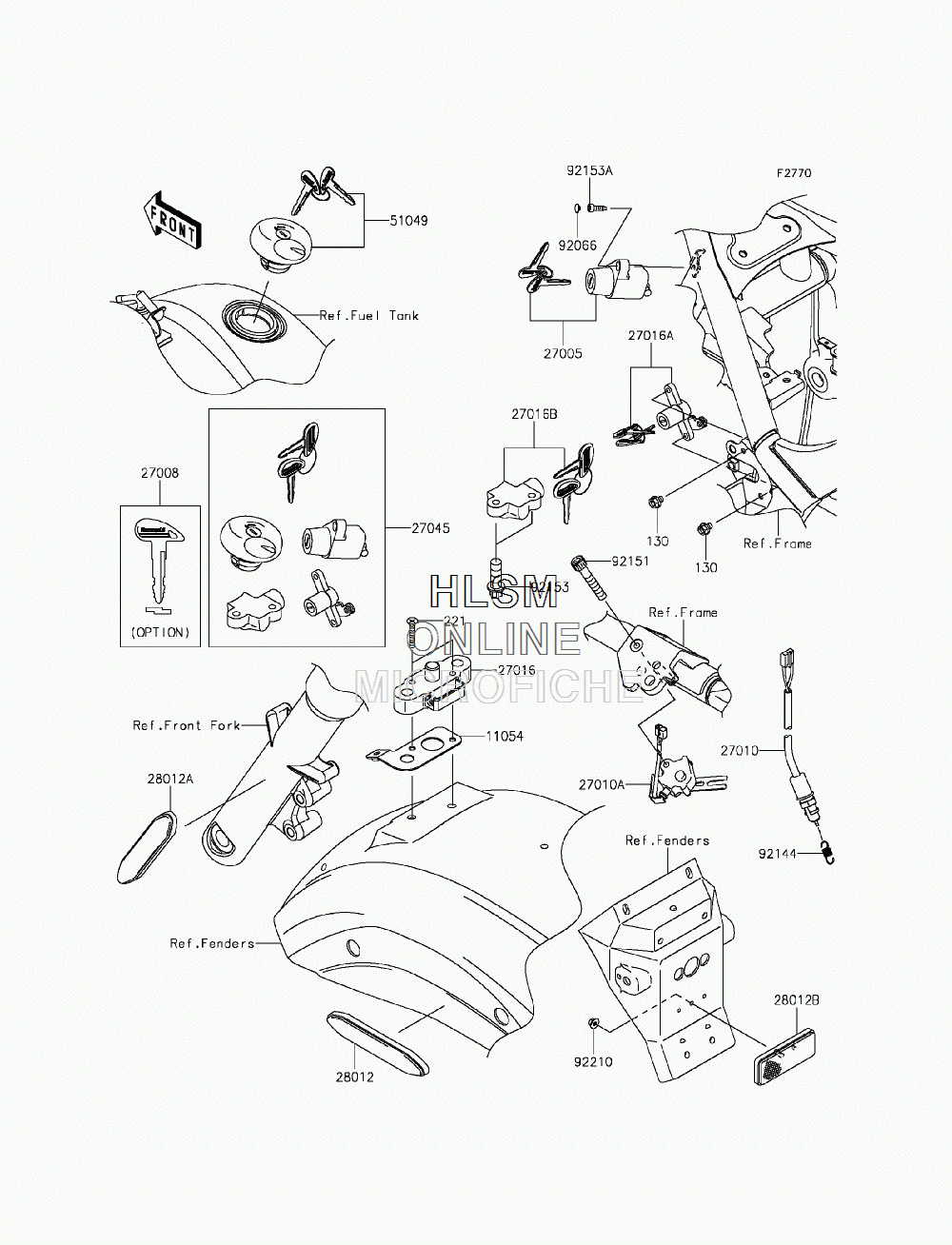

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VULCAN 900 CUSTOM (VN900CDFA) - 2013 года выпуска
-
№АртикулНазвание
-
130130BB0608 BOLT-FLANGED,6X8BOLT-FLANGED,6X8
-
221221AB0635 SCREW-CSK-CROS,6X35SCREW-CSK-CROS,6X35
-
1105411054-0492 BRACKET,SEAT LOCKBRACKET,SEAT LOCK
-
2700527005-0032 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0042 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0050 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1470 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
2701627016-1098 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5341 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
27016B27016-5342 LOCK-ASSY,STEERINGLOCK-ASSY,STEERING
-
2704527045-5323 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0010 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-0019 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5104951049-5001 CAP-TANK,FUELCAP-TANK,FUEL
-
9206692066-1543 PLUGPLUG
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1390 BOLT,SOCKET,6X35BOLT,SOCKET,6X35
-
9215392153-1273 BOLT,TORX,8X22BOLT,TORX,8X22
-
92153A92153-1685 BOLT,SOCKET,5X16BOLT,SOCKET,5X16
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
