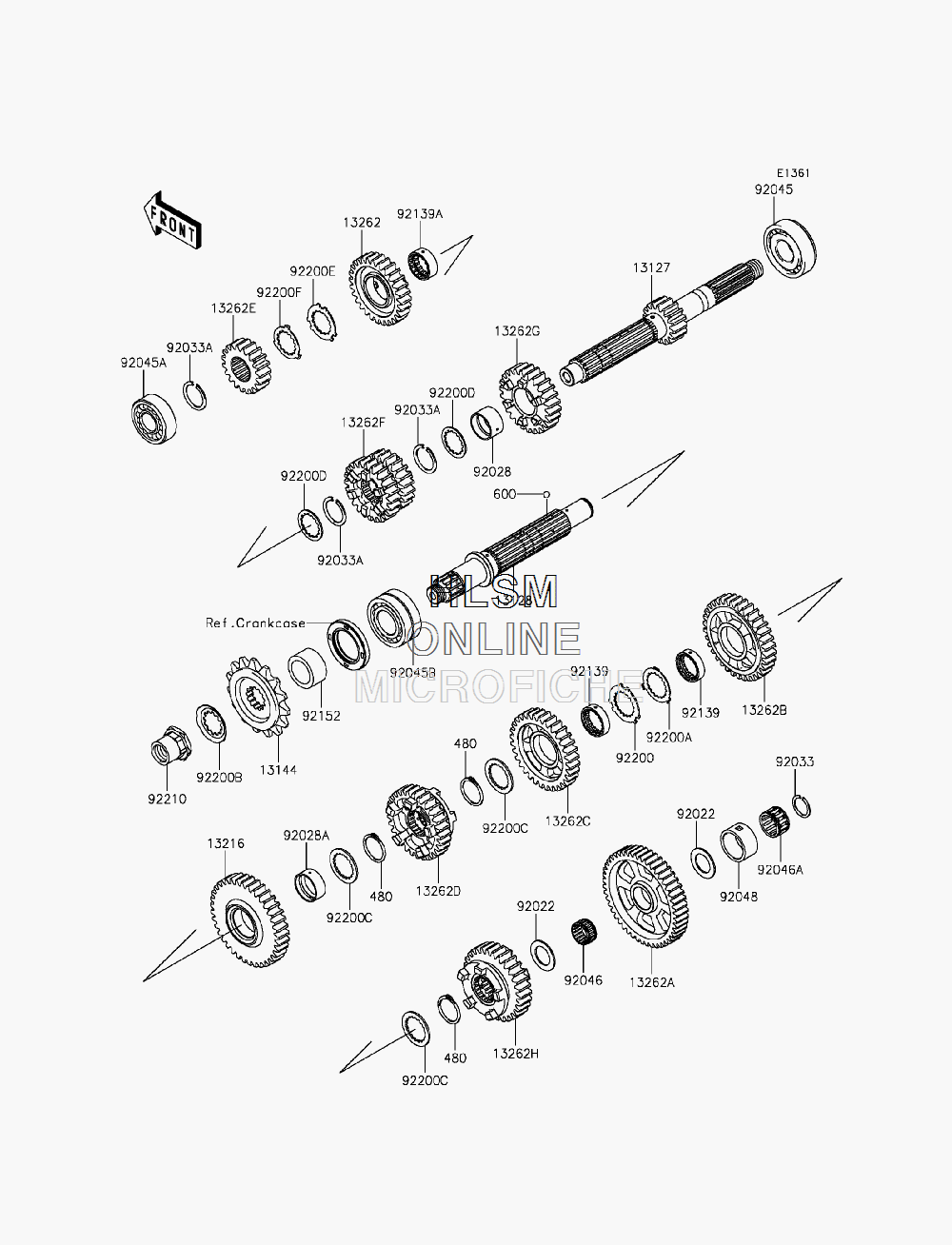

TRANSMISSION для Kawasaki NINJA ZX-14R (ZX1400EEFA) - 2014 года выпуска
-
№АртикулНазвание
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL,5/32BALL-STEEL,5/32
-
1312713127-0646 SHAFT-TRANSMISSION INPUT,18TSHAFT-TRANSMISSION INPUT,18T
-
1312813128-0683 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0040 SPROCKET-OUTPUT,17TSPROCKET-OUTPUT,17T
-
1321613216-0881 GEAR-COMP,OUTPUT 2ND,37TGEAR-COMP,OUTPUT 2ND,37T
-
1326213262-0925 GEAR,INPUT TOP,28TGEAR,INPUT TOP,28T
-
13262A13262-0941 GEAR,OUTPUT LOW,47TGEAR,OUTPUT LOW,47T
-
13262B13262-0943 GEAR,OUTPUT 3RD,34TGEAR,OUTPUT 3RD,34T
-
13262C13262-0944 GEAR,OUTPUT 4TH,32TGEAR,OUTPUT 4TH,32T
-
13262D13262-0945 GEAR,OUTPUT TOP,29TGEAR,OUTPUT TOP,29T
-
13262E13262-0946 GEAR,INPUT 2ND,19TGEAR,INPUT 2ND,19T
-
13262F13262-0947 GEAR,INPUT 3RD & 4TH,22T & 24TGEAR,INPUT 3RD & 4TH,22T & 24T
-
13262G13262-0948 GEAR,INPUT 5TH,26TGEAR,INPUT 5TH,26T
-
13262H13262-0957 GEAR,OUTPUT 5TH,30TGEAR,OUTPUT 5TH,30T
-
9202292022-212 WASHER,22.3X35X1.6WASHER,22.3X35X1.6
-
9202892028-1935 BUSHINGBUSHING
-
92028A92028-1937 BUSHINGBUSHING
-
9203392033-025 RING-SNAP,20X25.5X1.2RING-SNAP,20X25.5X1.2
-
92033A92033-1249 RING-SNAP,T=1.5RING-SNAP,T=1.5
-
9204592045-0047 BEARING-BALL,830045-5SH2BEARING-BALL,830045-5SH2
-
92045A92045-0048 BEARING-BALL,DG2152RDDSH2BEARING-BALL,DG2152RDDSH2
-
92045B92045-0049 BEARING-BALL,DAC2857NSSH6CS9BEARING-BALL,DAC2857NSSH6CS9
-
9204692046-0018 BEARING-NEEDLE,K22X26X13BEARING-NEEDLE,K22X26X13
-
92046A92046-0609 BEARING-NEEDLEBEARING-NEEDLE
-
9204892048-0004 RACERACE
-
9213992139-0255 BUSHINGBUSHING
-
92139A92139-0256 BUSHING,INPUT 6TH,GEARBUSHING,INPUT 6TH,GEAR
-
9215292152-1786 COLLAR,27.5X38X19.7COLLAR,27.5X38X19.7
-
9220092200-0255 WASHER,27.5X43X1.5WASHER,27.5X43X1.5
-
92200A92200-0256 WASHER,27.5X39.7X1.0WASHER,27.5X39.7X1.0
-
92200B92200-0260 WASHER,23.9X45X1.0WASHER,23.9X45X1.0
-
92200C92200-1277 WASHER,TOOTHED,28X40X2WASHER,TOOTHED,28X40X2
-
92200D92200-1340 WASHER,25.5X35.5X1.5WASHER,25.5X35.5X1.5
-
92200E92200-1522 WASHER,25.8X40.5X1.5WASHER,25.8X40.5X1.5
-
92200F92200-1523 WASHER,25.2X37.0X1.0WASHER,25.2X37.0X1.0
-
9221092210-0237 NUT,20X1.5NUT,20X1.5
