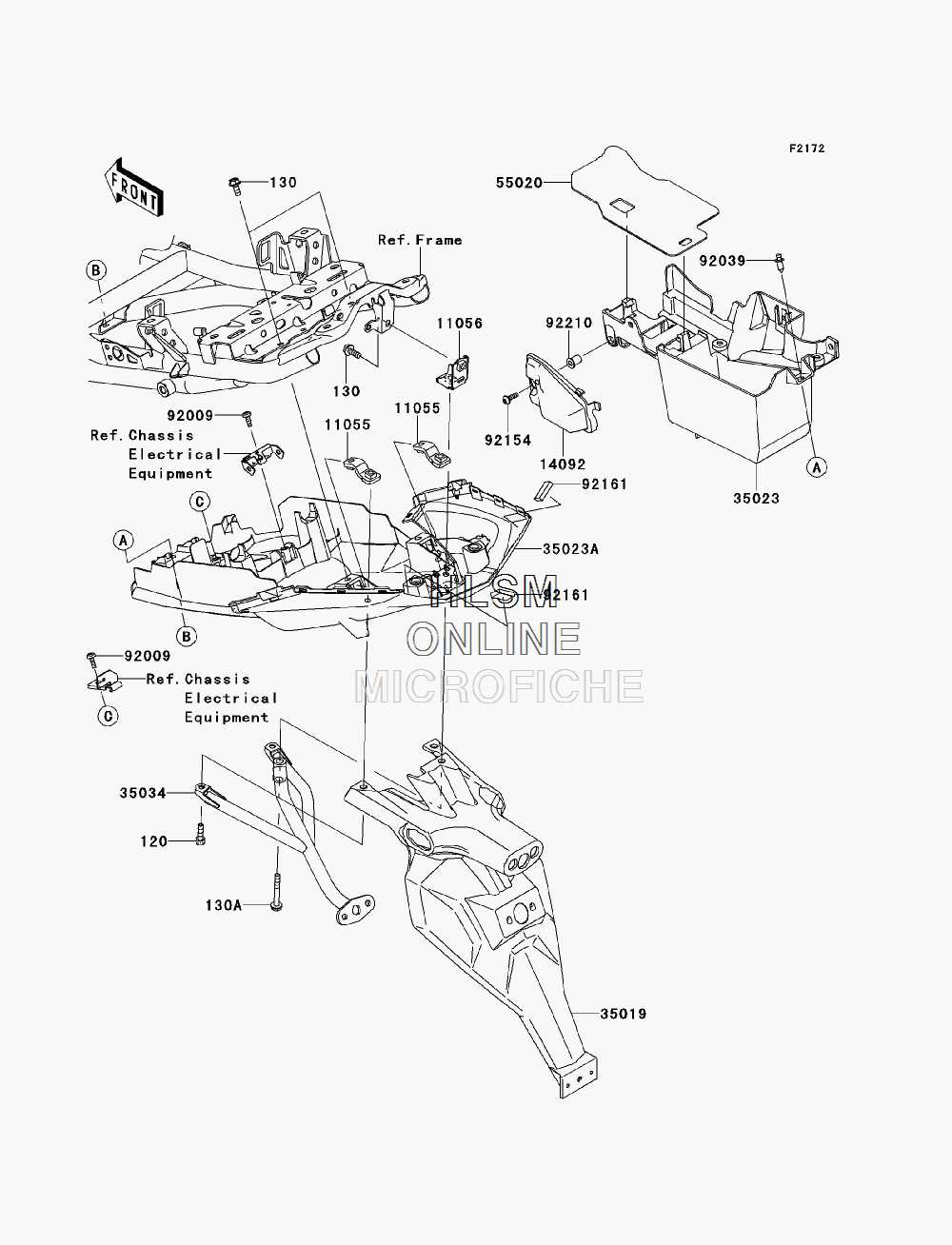

FENDER - REAR для Kawasaki VERSYS ABS (KLE650DEF) - 2014 года выпуска
-
№АртикулНазвание
-
120120CA0622 BOLT-SOCKET, 6X22BOLT-SOCKET, 6X22
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BB0645 BOLT-FLANGED, 6X45BOLT-FLANGED, 6X45
-
1105511055-1873 BRACKET, FLAP, REAR, L & RBRACKET, FLAP, REAR, L & R
-
1105611056-0236 BRACKET, FLAP, REAR, CNTBRACKET, FLAP, REAR, CNT
-
1409214092-0174 COVER, SWITCH MAINTE.COVER, SWITCH MAINTE.
-
3501935019-0102 FLAP, REAR FENDERFLAP, REAR FENDER
-
3502335023-0163 FENDER-REAR, FRONTFENDER-REAR, FRONT
-
35023A35023-0196 FENDER-REAR, REARFENDER-REAR, REAR
-
3503435034-0123 REINFORCEREINFORCE
-
5502055020-0220 GUARD, HEATGUARD, HEAT
-
9200992009-3845 SCREW, 6X14SCREW, 6X14
-
9203992039-1283 RIVETRIVET
-
9215492154-0182 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216192161-0717 DAMPERDAMPER
-
9221092210-0498 NUT, WELL, 5MMNUT, WELL, 5MM
