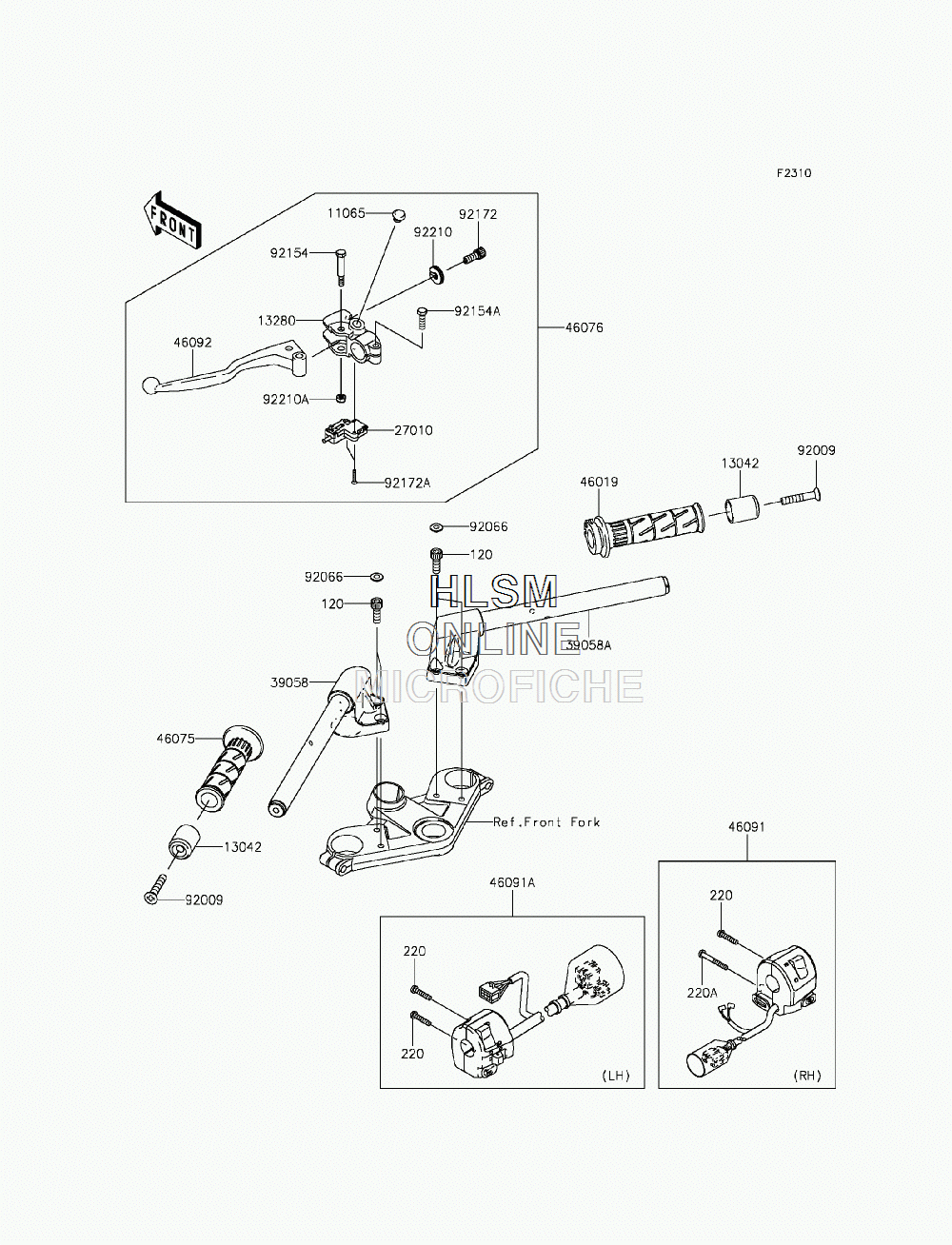

HANDLEBAR для Kawasaki NINJA 300 (EX300AFS) - 2015 года выпуска
-
№АртикулНазвание
-
120120CB0822 BOLT-SOCKET,8X22BOLT-SOCKET,8X22
-
220220AB0525 SCREW-PAN-CROS,5X25SCREW-PAN-CROS,5X25
-
220A220AB0540 SCREW-PAN-CROS,5X40SCREW-PAN-CROS,5X40
-
1106511065-0218 CAP,DUMMYCAP,DUMMY
-
1304213042-0032 WEIGHT,HANDLEWEIGHT,HANDLE
-
1328013280-0295 HOLDER,CLUTCH LEVERHOLDER,CLUTCH LEVER
-
2701027010-0729 SWITCH,CLUTCHSWITCH,CLUTCH
-
3905839058-0007-18R HANDLE-COMP, LEFT HAND,(BLACK)HANDLE-COMP, LEFT HAND,(BLACK)
-
39058A39058-0008-18R HANDLE-COMP, RIGHT HAND,(BLACK)HANDLE-COMP, RIGHT HAND,(BLACK)
-
4601946019-0060 GRIP-ASSY,THROTTLEGRIP-ASSY,THROTTLE
-
4607546075-0564 GRIP,HANDLE, LEFT HANDGRIP,HANDLE, LEFT HAND
-
4607646076-0097 LEVER-ASSY-GRIP,CLUTCHLEVER-ASSY-GRIP,CLUTCH
-
4609146091-0205 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-0249 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-0558 LEVER-GRIP,CLUTCHLEVER-GRIP,CLUTCH
-
9200992009-1257 SCREW,8X45SCREW,8X45
-
9206692066-1216 PLUGPLUG
-
9215492154-0066 BOLT,CLUTCH LEVERBOLT,CLUTCH LEVER
-
92154A92154-0067 BOLTBOLT
-
9217292172-0376 SCREW,CABLE ADJUST,8MMSCREW,CABLE ADJUST,8MM
-
92172A92172-0397 SCREW,3X16SCREW,3X16
-
9221092210-0479 NUT,CABLE ADJUST,LOCK,8MMNUT,CABLE ADJUST,LOCK,8MM
-
92210A92210-0480 NUT,LOCK,6MMNUT,LOCK,6MM
