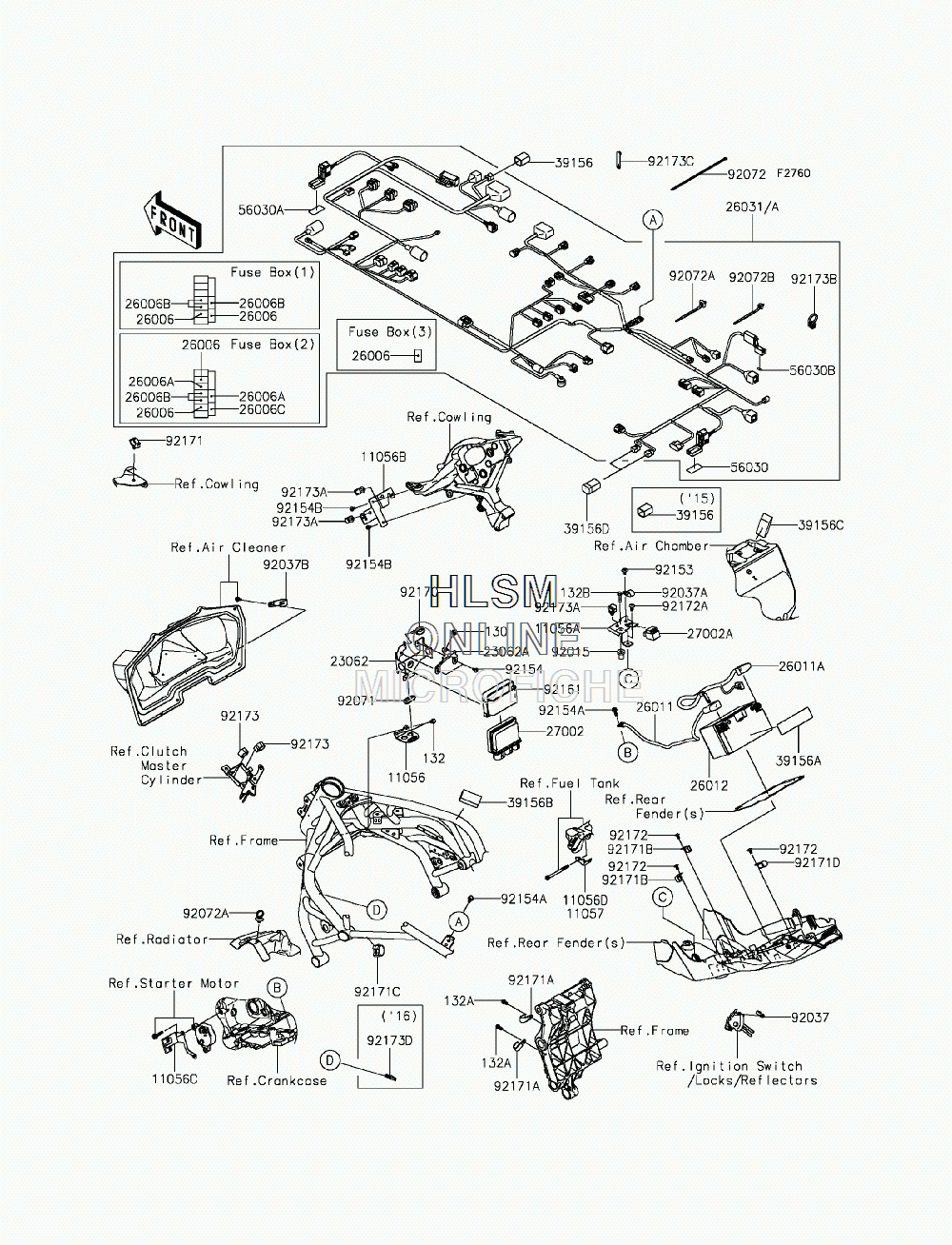

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA H2R (ZX1000PFF) - 2015 года выпуска
-
№АртикулНазвание
-
1105611056-7100 BRACKET, RELAY BRKT., LOWERBRACKET, RELAY BRKT., LOWER
-
11056A11056-7175 BRACKET, REAR WHEEL SPEED SENSORBRACKET, REAR WHEEL SPEED SENSOR
-
11056B11056-7378 BRACKET, HARNESS CONNECTORBRACKET, HARNESS CONNECTOR
-
11056C11056-7543 BRACKET, STARTERBRACKET, STARTER
-
11056D11056-7544 BRACKET, FUEL PUMP CONNECTORBRACKET, FUEL PUMP CONNECTOR
-
2306223062-0844 BRACKET-COMP, RELAY BOXBRACKET-COMP, RELAY BOX
-
23062A23062-0845 BRACKET-COMP, RELAY BRKT., UPPERBRACKET-COMP, RELAY BRKT., UPPER
-
2600626006-0001 FUSE, MINI BLADE, 15A, BLUEFUSE, MINI BLADE, 15A, BLUE
-
26006A26006-0020 FUSE, MINI BLADE, 25A, NATURALFUSE, MINI BLADE, 25A, NATURAL
-
26006B26006-1078 FUSE, MINI BLADE, 10A, REDFUSE, MINI BLADE, 10A, RED
-
26006C26006-1080 FUSE, MINI BLADE, 30A, GREENFUSE, MINI BLADE, 30A, GREEN
-
2601126011-0908 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011A26011-0909 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
2601226012-0564 BATTERY, YTZ10S, 12V 8.6AHBATTERY, YTZ10S, 12V 8.6AH
-
2603126031-1959 HARNESS, MAINHARNESS, MAIN
-
2700227002-0025 RELAY-ASSY, BOXRELAY-ASSY, BOX
-
27002A27002-1062 RELAY-ASSYRELAY-ASSY
-
3915639156-1886 PAD, DIAG. CONNECTORPAD, DIAG. CONNECTOR
-
39156A39156-1895 PAD, 30X115X0.36PAD, 30X115X0.36
-
39156B39156-1940 PAD, 25X50X20PAD, 25X50X20
-
39156C39156-1945 PAD, 25X65X20PAD, 25X65X20
-
5603056030-0902 LABEL, FUSE BOX 2LABEL, FUSE BOX 2
-
56030A56030-0903 LABEL, FUSE BOX 1LABEL, FUSE BOX 1
-
56030B56030-0906 LABEL, FUSE BOX 3LABEL, FUSE BOX 3
-
9201592015-1692 NUT, RUBBER, 6MMNUT, RUBBER, 6MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1608 CLAMPCLAMP
-
92037B92037-2014 CLAMP, CABLE, STEEL SHEETCLAMP, CABLE, STEEL SHEET
-
9207192071-1187 GROMMETGROMMET
-
9207292072-0782 BAND, 202X3.6BAND, 202X3.6
-
92072A92072-1392 BANDBAND
-
92072B92072-1414 BANDBAND
-
9215392153-0410 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9215492154-0211 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
92154A92154-0551 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154B92154-0917 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
9216192161-0203 DAMPER, RELAY BOXDAMPER, RELAY BOX
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132BA0622 BOLT-FLANGED-SMALL, 6X22BOLT-FLANGED-SMALL, 6X22
-
9217092170-1067 CLAMPCLAMP
-
9217192171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0739 CLAMPCLAMP
-
92171B92171-0766 CLAMPCLAMP
-
92171C92171-1559 CLAMP, 25MM DIA.CLAMP, 25MM DIA.
-
92171D92171-1597 CLAMPCLAMP
-
9217292172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92172A92172-0284 SCREW, 6X16SCREW, 6X16
-
9217392173-0127 CLAMP, CLIPCLAMP, CLIP
-
92173A92173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173B92173-0791 CLAMPCLAMP
-
92173C92173-1229 CLAMP, RUBBER PLATECLAMP, RUBBER PLATE
