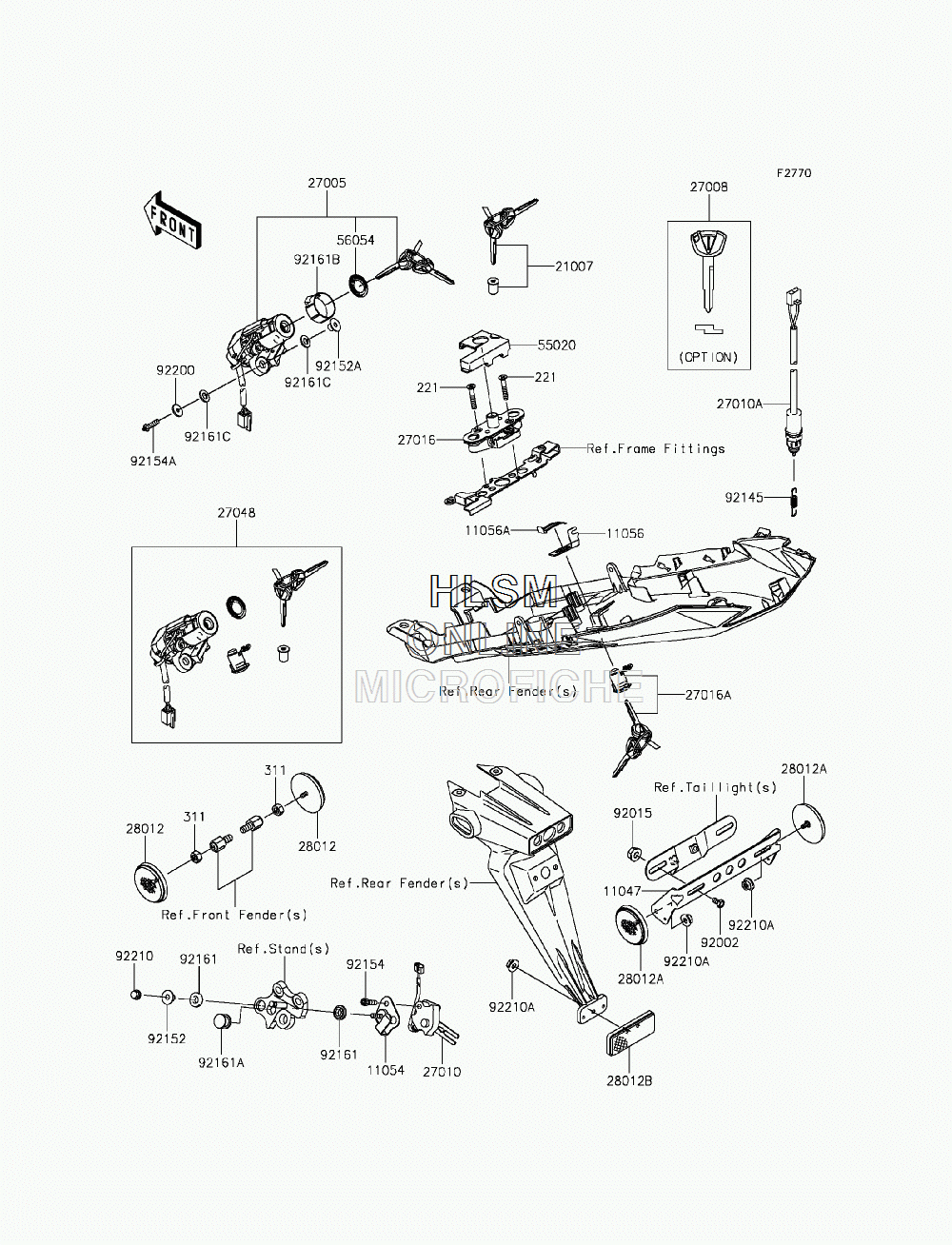

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-6R 30TH ANNIVERSARY EDITION (ZX636EFFA) - 2015 года выпуска
-
№АртикулНазвание
-
221221AB0635 SCREW-CSK-CROS,6X35SCREW-CSK-CROS,6X35
-
311311AB0500 NUT-HEX,5MMNUT-HEX,5MM
-
1104711047-1470 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105411054-1904 BRACKET,SIDE STAND SWITCHBRACKET,SIDE STAND SWITCH
-
1105611056-0237 BRACKETBRACKET
-
11056A11056-0238 BRACKET,CLASPBRACKET,CLASP
-
2100721007-5068 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-0568 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0069 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0741 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0035 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5373 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
2704827048-5023 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5502055020-0483 GUARD,SEAT STRIKERGUARD,SEAT STRIKER
-
5605456054-0969 MARK,IGNITION SWITCHMARK,IGNITION SWITCH
-
9200292002-1132 BOLT,6X12BOLT,6X12
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9214592145-0091 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215292152-1074 COLLARCOLLAR
-
92152A92152-1699 COLLAR,6.8X10X11.6COLLAR,6.8X10X11.6
-
9215492154-0031 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
92154A92154-1129 BOLT,TORX,6X24BOLT,TORX,6X24
-
9216192161-0117 DAMPERDAMPER
-
92161A92161-0118 DAMPERDAMPER
-
92161B92161-1506 DAMPERDAMPER
-
92161C92161-1507 DAMPER,10X17X3DAMPER,10X17X3
-
9220092200-0212 WASHER,6X20X1.6WASHER,6X20X1.6
-
9221092210-0003 NUT,CAP,6MMNUT,CAP,6MM
-
92210A92210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
