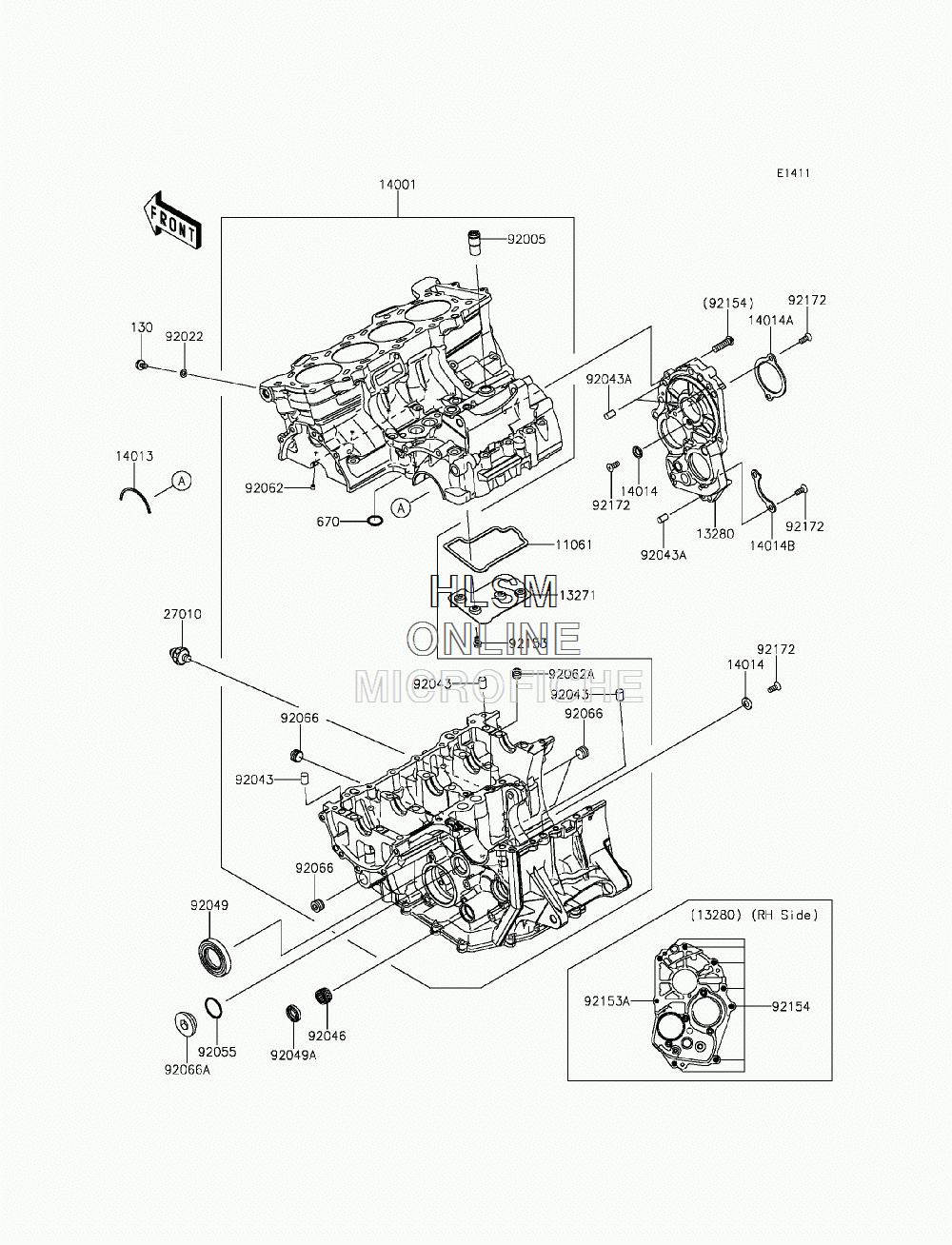

CRANKCASE для Kawasaki NINJA ZX-6R ABS 30TH ANNIVERSARY EDITION (ZX636FFFA) - 2015 года выпуска
-
№АртикулНазвание
-
130130BD0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
670670D2018 O RING,18MMO RING,18MM
-
1106111061-0291 GASKET,BREATHER ROOMGASKET,BREATHER ROOM
-
1327113271-0795 PLATE,BREATHER ROOMPLATE,BREATHER ROOM
-
1328013280-0305 HOLDER,TRANSMISSIONHOLDER,TRANSMISSION
-
1400114001-0611 SET-CRANKCASESET-CRANKCASE
-
1401314013-1051 RING-POSITIONRING-POSITION
-
1401414014-0019 PLATE-POSITION,9.5X17X2.3PLATE-POSITION,9.5X17X2.3
-
14014A14014-0029 PLATE-POSITIONPLATE-POSITION
-
14014B14014-0030 PLATE-POSITIONPLATE-POSITION
-
2701027010-1313 SWITCH,OIL PRESSURESWITCH,OIL PRESSURE
-
9200592005-1238 FITTING,BREATHERFITTING,BREATHER
-
9202292022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9204392043-1506 PIN,10X14PIN,10X14
-
92043A92043-1567 PIN,8X14PIN,8X14
-
9204692046-0043 BEARING-NEEDLE,HK1412FMBEARING-NEEDLE,HK1412FM
-
9204992049-1474 SEAL-OIL,TC32578SEAL-OIL,TC32578
-
92049A92049-1520 SEAL-OIL,TC14245SEAL-OIL,TC14245
-
9205592055-091 RING-O,27.7X2.4RING-O,27.7X2.4
-
9206292062-0019 NOZZLENOZZLE
-
92062A92062-1056 NOZZLENOZZLE
-
9206692066-0003 PLUG,PT3/8X10PLUG,PT3/8X10
-
92066A92066-1161 PLUG,25X8PLUG,25X8
-
9215392153-0381 BOLT,6X10BOLT,6X10
-
92153A92153-1640 BOLT,TORX,6X25BOLT,TORX,6X25
-
9215492154-0415 BOLT,TORX,8X28BOLT,TORX,8X28
-
9217292172-0090 SCREW,6X16SCREW,6X16
