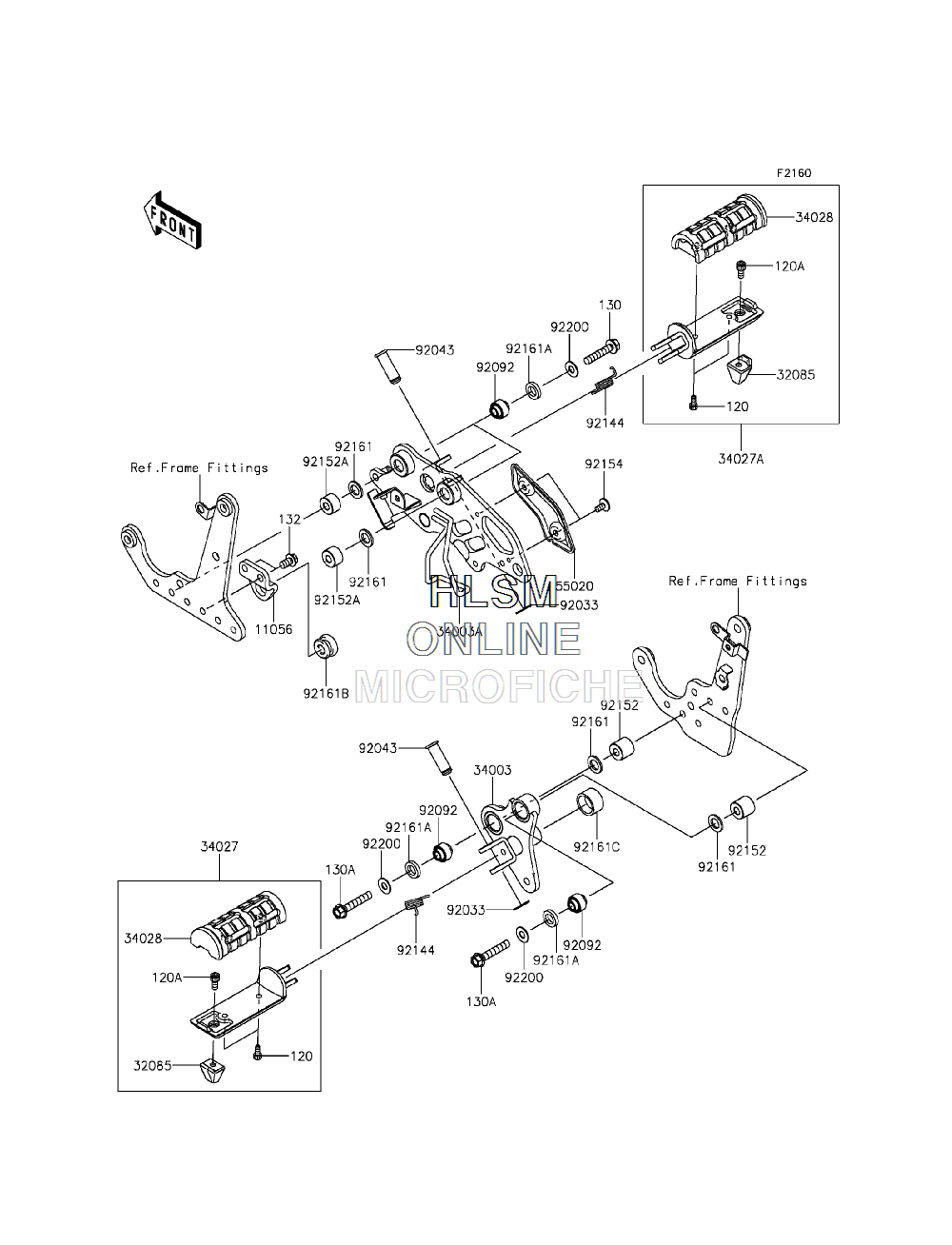

FOOTRESTS для Kawasaki VULCAN S (EN650AFF) - 2015 года выпуска
-
№АртикулНазвание
-
120120CB0512 BOLT-SOCKET, 5X12BOLT-SOCKET, 5X12
-
120A120CB0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
130130BB0840 BOLT-FLANGED, 8X40BOLT-FLANGED, 8X40
-
130A130BB0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
132132BB0814 BOLT-FLANGED-SMALL, 8X14BOLT-FLANGED-SMALL, 8X14
-
1105611056-7031 BRACKET, STEP, FRONT, RIGHT HANDBRACKET, STEP, FRONT, RIGHT HAND
-
3208532085-0770 STOPPER, BANK SENSORSTOPPER, BANK SENSOR
-
3400334003-0141 HOLDER-STEP, LEFT HANDHOLDER-STEP, LEFT HAND
-
34003A34003-0156 HOLDER-STEP, RIGHT HANDHOLDER-STEP, RIGHT HAND
-
3402734027-0012 STEP-ASSY, LEFT HANDSTEP-ASSY, LEFT HAND
-
34027A34027-0013 STEP-ASSY, RIGHT HANDSTEP-ASSY, RIGHT HAND
-
3402834028-0338 STEP, RUBBERSTEP, RUBBER
-
5502055020-1880 GUARD, STEP HOLDER, RIGHT HANDGUARD, STEP HOLDER, RIGHT HAND
-
9203392033-1166 RING-SNAP, 10MMRING-SNAP, 10MM
-
9204392043-1358 PIN, 12X37PIN, 12X37
-
9209292092-1018-SP BUSHING-RUBBER, 8.4X20X18BUSHING-RUBBER, 8.4X20X18
-
9214492144-1126 SPRING, STEP RETURNSPRING, STEP RETURN
-
9215292152-1952 COLLAR, 8.4X21X19COLLAR, 8.4X21X19
-
92152A92152-1953 COLLAR, 8.4X21X13COLLAR, 8.4X21X13
-
9215492154-0951 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216192161-0943 DAMPER, 12.5X21X2DAMPER, 12.5X21X2
-
92161A92161-0944 DAMPER, 12.5X20X4DAMPER, 12.5X20X4
-
92161B92161-1523 DAMPERDAMPER
-
92161C92161-1702 DAMPER, 21.5X27.5X16DAMPER, 21.5X27.5X16
-
9220092200-1733 WASHER, 8.5X19X1WASHER, 8.5X19X1
