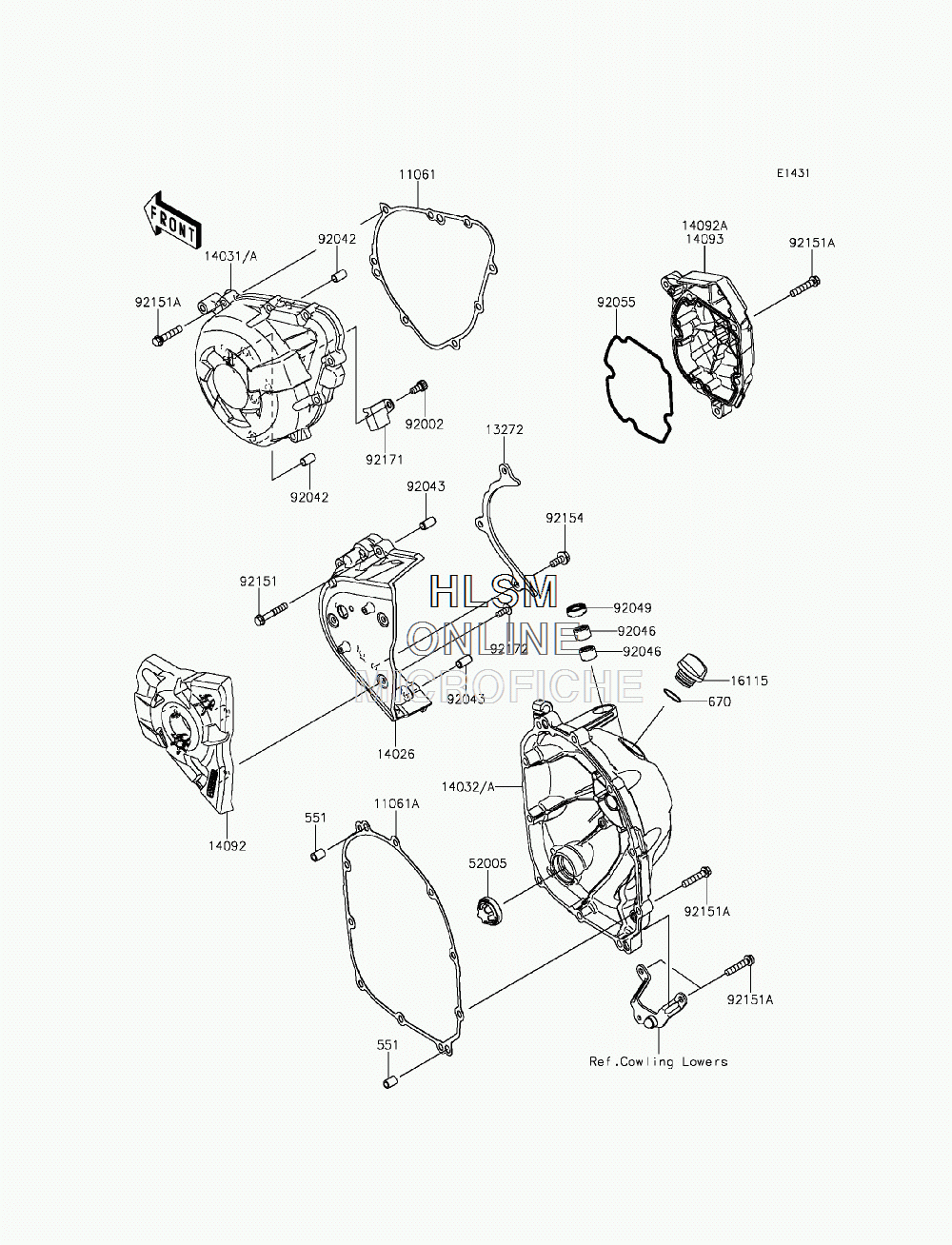

ENGINE COVER для Kawasaki Z1000 ABS (ZR1000GFF) - 2015 года выпуска
-
№АртикулНазвание
-
551551A0814 PIN-DOWEL, 8X14PIN-DOWEL, 8X14
-
670670B2020 O RING, 20MMO RING, 20MM
-
1106111061-0403 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-0404 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1327213272-0859 PLATEPLATE
-
1402614026-0114 COVER-CHAINCOVER-CHAIN
-
1403114031-0584 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0590 COVER-CLUTCHCOVER-CLUTCH
-
1409214092-0032 COVER, OUTERCOVER, OUTER
-
14092A14092-0819 COVER, PULSERCOVER, PULSER
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
5200552005-1120 GAUGEGAUGE
-
9200292002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
-
9205592055-0199 RING-O, PULSER COVERRING-O, PULSER COVER
-
9215192151-1135 BOLT, 6X35BOLT, 6X35
-
92151A92151-1873 BOLT, 6X30BOLT, 6X30
-
9215492154-0482 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9217192171-0708 CLAMPCLAMP
-
9217292172-0265 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
