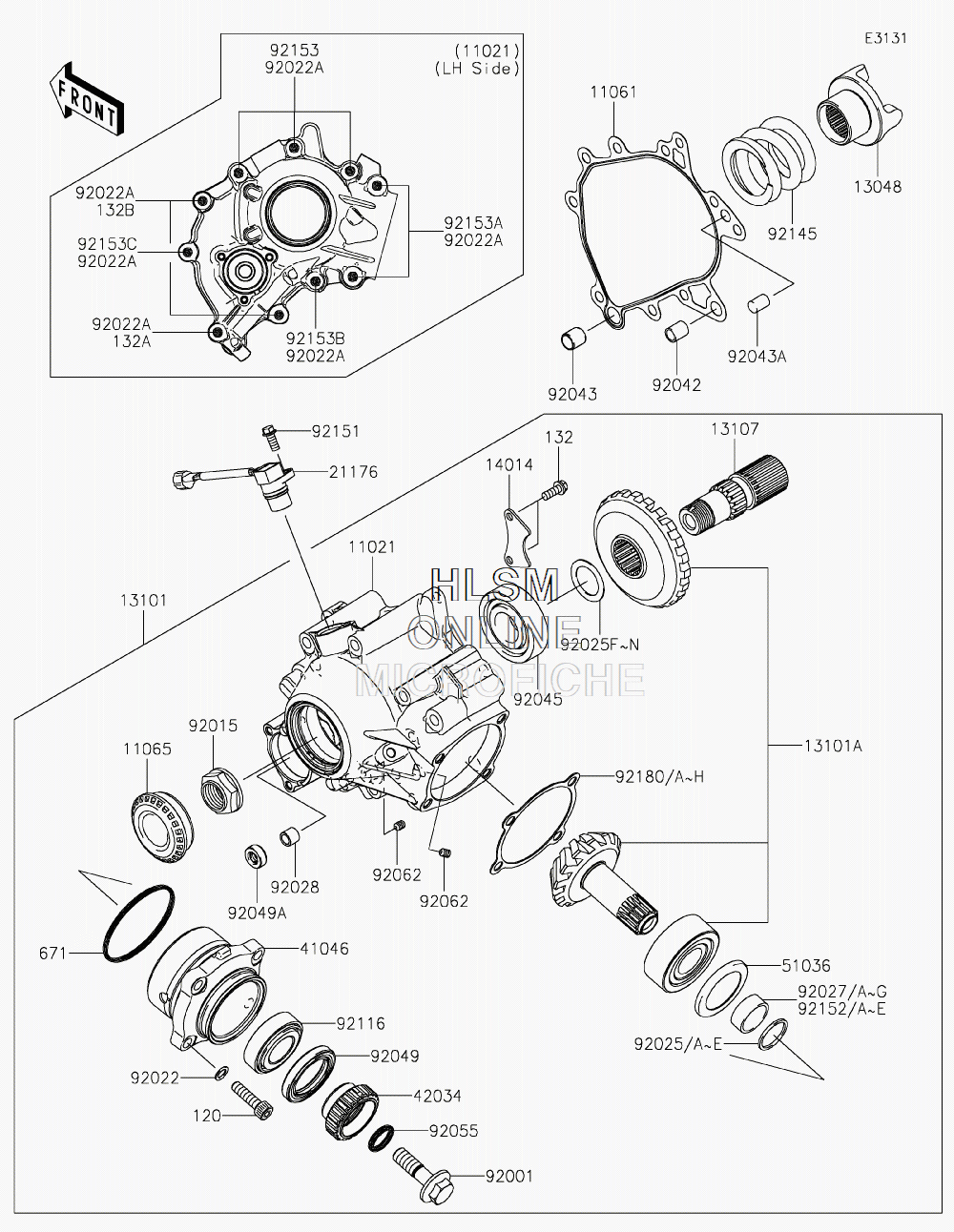

FRONT BEVEL GEAR для Kawasaki CONCOURS 14 ABS (ZG1400EGF) - 2016 года выпуска
-
№АртикулНазвание
-
1102111021-0014-458 CASE-ASSY, FRONT GEAR, (P.SILVER)CASE-ASSY, FRONT GEAR, (P.SILVER)
-
1106111061-0310 GASKET, FRONT GEAR CASEGASKET, FRONT GEAR CASE
-
1106511065-0165 CAPCAP
-
120120CB0830 BOLT-SOCKET, 8X30BOLT-SOCKET, 8X30
-
1304813048-0004 CAM-DAMPERCAM-DAMPER
-
1310113101-0119-458 GEAR-ASSY, (P.SILVER)GEAR-ASSY, (P.SILVER)
-
13101A13101-5094 GEAR-ASSYGEAR-ASSY
-
1310713107-0203 SHAFT, DRIVESHAFT, DRIVE
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132BB0850 BOLT-FLANGED-SMALL, 8X50BOLT-FLANGED-SMALL, 8X50
-
132B132BD0835 BOLT-FLANGED-SMALL, 8X35BOLT-FLANGED-SMALL, 8X35
-
1401414014-0031 PLATE-POSITIONPLATE-POSITION
-
2117621176-0037 SENSOR, SPEEDSENSOR, SPEED
-
4104641046-0024 HOUSING-BEARINGHOUSING-BEARING
-
4203442034-0058 COUPLING, FRONT, DRIVENCOUPLING, FRONT, DRIVEN
-
5103651036-1002 CUPCUP
-
671671D2570 O RING, 69.4X3.1O RING, 69.4X3.1
-
9200192001-1169 BOLT, FLANGED, 12X42BOLT, FLANGED, 12X42
-
9201592015-1554 NUT, 24MMNUT, 24MM
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9202592025-1072 SHIM, 25.2X29.8X1.70SHIM, 25.2X29.8X1.70
-
92025A92025-1073 SHIM, 25.2X29.8X1.72SHIM, 25.2X29.8X1.72
-
92025B92025-1074 SHIM, 25.2X29.8X1.74SHIM, 25.2X29.8X1.74
-
92025C92025-1075 SHIM, 25.2X29.8X1.76SHIM, 25.2X29.8X1.76
-
92025D92025-1076 SHIM, 25.2X29.8X1.78SHIM, 25.2X29.8X1.78
-
92025E92025-1077 SHIM, 25.2X29.8X1.80SHIM, 25.2X29.8X1.80
-
92025F92025-1688 SHIM, 25.3X36X0.15SHIM, 25.3X36X0.15
-
92025G92025-1689 SHIM, 25.3X36X0.50SHIM, 25.3X36X0.50
-
92025H92025-1690 SHIM, 25.3X36X0.60SHIM, 25.3X36X0.60
-
92025I92025-1691 SHIM, 25.3X36X0.70SHIM, 25.3X36X0.70
-
92025J92025-1692 SHIM, 25.3X36X0.80SHIM, 25.3X36X0.80
-
92025K92025-1693 SHIM, 25.3X36X0.90SHIM, 25.3X36X0.90
-
92025L92025-1694 SHIM, 25.3X36X1.00SHIM, 25.3X36X1.00
-
92025M92025-1695 SHIM, 25.3X36X1.10SHIM, 25.3X36X1.10
-
92025N92025-1696 SHIM, 25.3X36X1.20SHIM, 25.3X36X1.20
-
9202792027-1403 COLLAR, 25.2X29.8X10.4COLLAR, 25.2X29.8X10.4
-
92027A92027-1404 COLLAR, 25.2X29.8X10.5COLLAR, 25.2X29.8X10.5
-
92027B92027-1405 COLLAR, 25.2X29.8X10.6COLLAR, 25.2X29.8X10.6
-
92027C92027-1406 COLLAR, 25.2X29.8X10.7COLLAR, 25.2X29.8X10.7
-
92027D92027-1407 COLLAR, 25.2X29.8X10.8COLLAR, 25.2X29.8X10.8
-
92027E92027-1408 COLLAR, 25.2X29.8X10.9COLLAR, 25.2X29.8X10.9
-
92027F92027-1409 COLLAR, 25.2X29.8X11.0COLLAR, 25.2X29.8X11.0
-
92027G92027-1410 COLLAR, 25.2X29.8X11.1COLLAR, 25.2X29.8X11.1
-
9202892028-1750 BUSHING, 8X12X10BUSHING, 8X12X10
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
92043A92043-1506 PIN, 10X14PIN, 10X14
-
9204592045-0063 BEARING-BALL, 6305-13BEARING-BALL, 6305-13
-
9204992049-1038 SEAL-OIL, TC35527SEAL-OIL, TC35527
-
92049A92049-1566 SEAL-OILSEAL-OIL
-
9205592055-0130 RING-O, 18.7X3.5RING-O, 18.7X3.5
-
9206292062-1078 NOZZLE, 6X8, GREENNOZZLE, 6X8, GREEN
-
9211692116-1062 BEARING-ROLLER, HI-CAP30205BEARING-ROLLER, HI-CAP30205
-
9214592145-0430 SPRING, CAM DAMPERSPRING, CAM DAMPER
-
9215192151-1755 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9215292152-0480 COLLAR, 25.2X29.8X11.2COLLAR, 25.2X29.8X11.2
-
92152A92152-0481 COLLAR, 25.2X29.8X11.3COLLAR, 25.2X29.8X11.3
-
92152B92152-0482 COLLAR, 25.2X29.8X11.4COLLAR, 25.2X29.8X11.4
-
92152C92152-0483 COLLAR, 25.2X29.8X11.5COLLAR, 25.2X29.8X11.5
-
92152D92152-0484 COLLAR, 25.2X29.8X11.6COLLAR, 25.2X29.8X11.6
-
92152E92152-0485 COLLAR, 25.2X29.8X11.7COLLAR, 25.2X29.8X11.7
-
9215392153-0434 BOLT, 8X95BOLT, 8X95
-
92153A92153-1874 BOLT, 8X92BOLT, 8X92
-
92153B92153-1953 BOLT, FLANGED, 8X95BOLT, FLANGED, 8X95
-
92153C92153-1954 BOLT, FLANGED-SMALL, 8X35BOLT, FLANGED-SMALL, 8X35
-
9218092180-0227 SHIM, T=0.1SHIM, T=0.1
-
92180A92180-0228 SHIM, T=0.15SHIM, T=0.15
-
92180B92180-0229 SHIM, T=0.5SHIM, T=0.5
-
92180C92180-0230 SHIM, T=0.6SHIM, T=0.6
-
92180D92180-0231 SHIM, T=0.7SHIM, T=0.7
-
92180E92180-0232 SHIM, T=0.8SHIM, T=0.8
-
92180F92180-0233 SHIM, T=0.9SHIM, T=0.9
-
92180G92180-0234 SHIM, T=1.0SHIM, T=1.0
-
92180H92180-0235 SHIM, T=1.2SHIM, T=1.2
