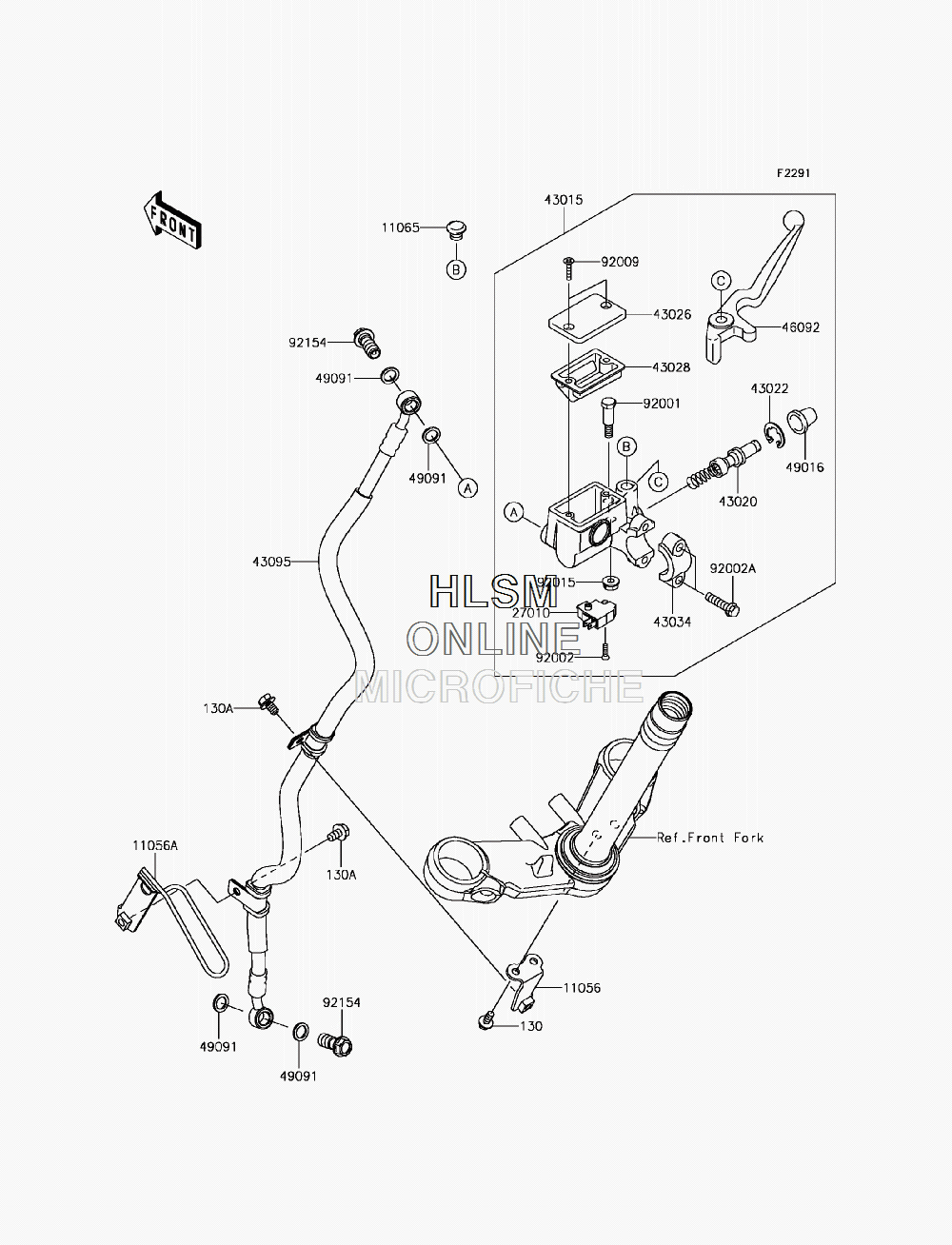

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA 300 SE (EX300AGFA) - 2016 года выпуска
-
№АртикулНазвание
-
130130BB0512 BOLT-FLANGED, 5X12BOLT-FLANGED, 5X12
-
130A130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
1105611056-2214 BRACKETBRACKET
-
11056A11056-2300 BRACKETBRACKET
-
1106511065-0921 CAP, DUMMYCAP, DUMMY
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0622 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-0022 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-0770 HOSE-BRAKE, FRONT, L=731HOSE-BRAKE, FRONT, L=731
-
4609246092-0028 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM, (BLACK)NUT, FLANGED, 6MM, (BLACK)
-
9215492154-0226 BOLT, OIL, L=23BOLT, OIL, L=23
