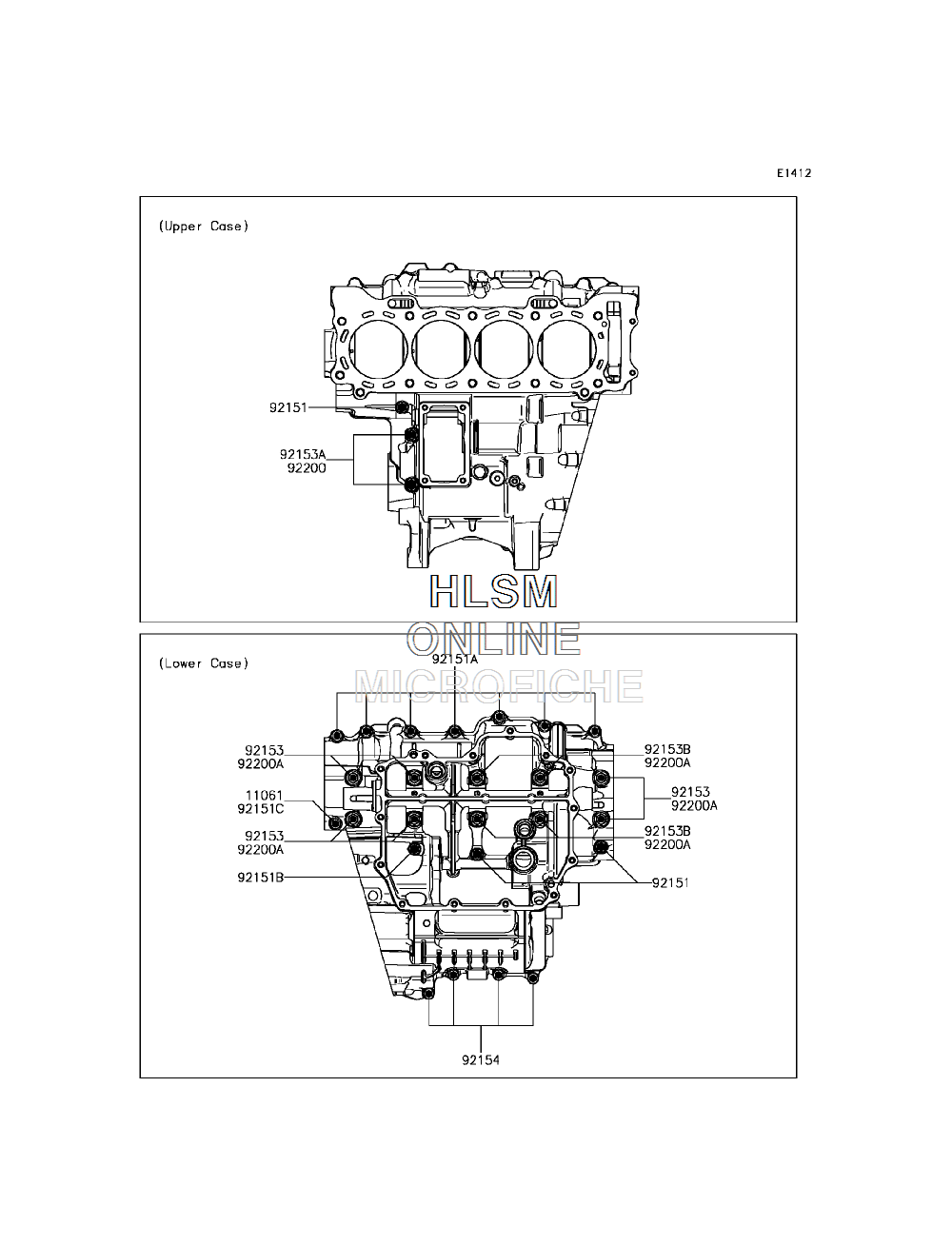

CRANKCASE BOLT PATTERN для Kawasaki NINJA ZX-10R ABS (ZX1000SGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106111061-0262 GASKET, 6.2X13.5X1.0GASKET, 6.2X13.5X1.0
-
9215192151-1223 BOLT, FLANGED, 7X50BOLT, FLANGED, 7X50
-
92151A92151-1521 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
92151B92151-1539 BOLT, FLANGED, 7X45BOLT, FLANGED, 7X45
-
92151C92151-1791 BOLT, 6X60BOLT, 6X60
-
9215392153-0447 BOLT, FLANGED, 9X100BOLT, FLANGED, 9X100
-
92153A92153-1110 BOLT, 8X63BOLT, 8X63
-
92153B92153-1449 BOLT, FLANGED, 9X113BOLT, FLANGED, 9X113
-
9215492154-0861 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
9220092200-0047 WASHER, 8.2X16X1.6WASHER, 8.2X16X1.6
-
92200A92200-0115 WASHER, 9.2X19X2.3WASHER, 9.2X19X2.3
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE LINES
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COWLING
- COWLING - LOWERS
- CRANKCASE
- • CRANKCASE BOLT PATTERN
- CRANKSHAFT/PISTON(S)
- CYLINDER HEAD
- CYLINDER HEAD COVER
- DECALS
- ENGINE COVER
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRAME SLIDER
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL COOLER
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SEAT COVER - SINGLE
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- STEERING DAMPER
- SUSPENSION - REAR W/ SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PIPE
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
