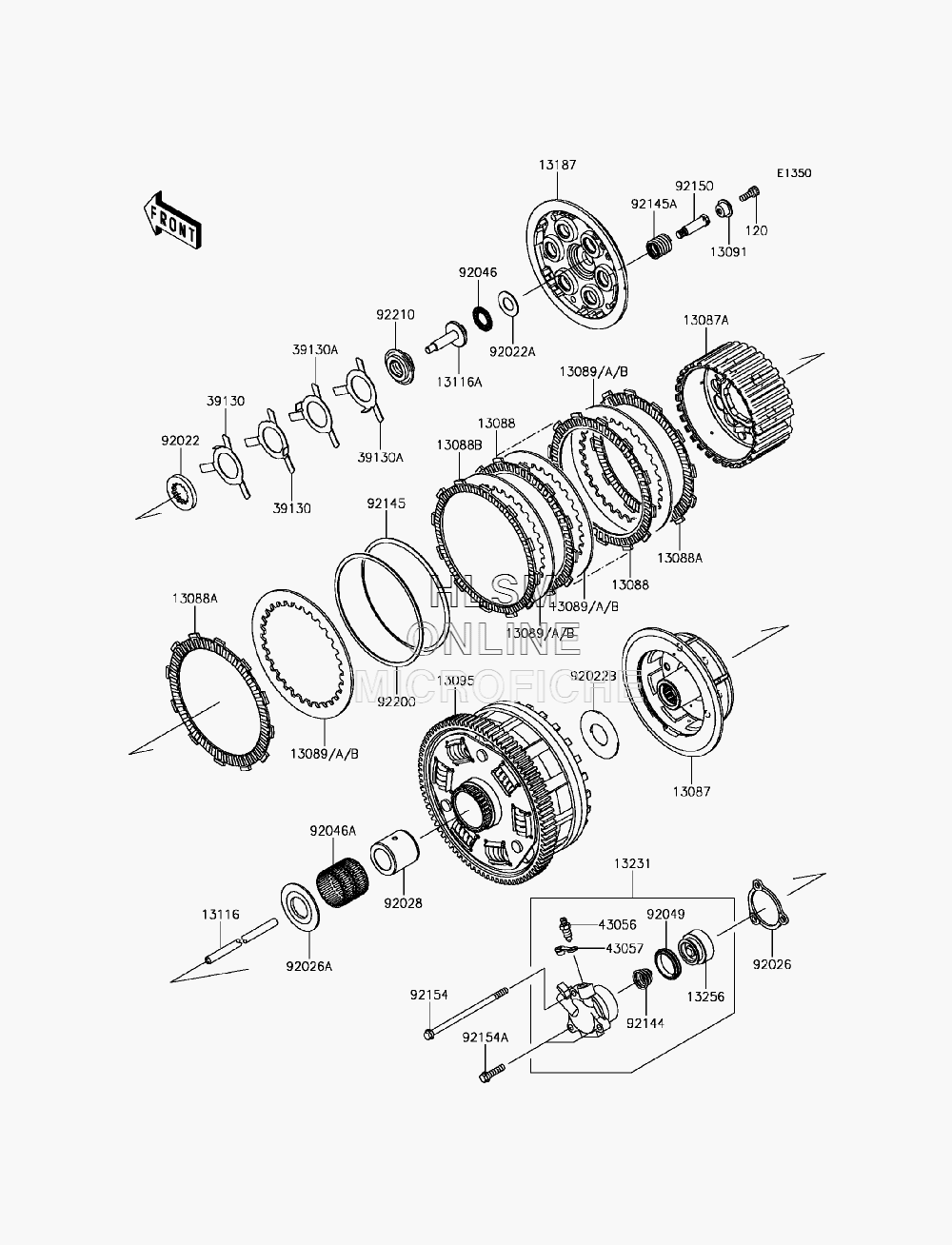

CLUTCH для Kawasaki NINJA ZX-14R ABS (ZX1400HGF) - 2016 года выпуска
-
№АртикулНазвание
-
120120Q0616 BOLT-SOCKET, 6X16BOLT-SOCKET, 6X16
-
1308713087-0556 HUB-CLUTCHHUB-CLUTCH
-
13087A13087-0560 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0030 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0031 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-0032 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0018 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
13089A13089-0019 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089B13089-0020 PLATE-CLUTCH, T=2.9PLATE-CLUTCH, T=2.9
-
1309113091-1840 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0583 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0022 ROD-PUSHROD-PUSH
-
13116A13116-0040 ROD-PUSH, CLUTCHROD-PUSH, CLUTCH
-
1318713187-0012 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323113231-0002 RELEASE-ASSY-CLUTCHRELEASE-ASSY-CLUTCH
-
1325613256-0004 PISTONPISTON
-
3913039130-1078 SPRING-LEAFSPRING-LEAF
-
39130A39130-1079 SPRING-LEAFSPRING-LEAF
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
9202292022-1114 WASHER, TOOTHED, 25X40X5WASHER, TOOTHED, 25X40X5
-
92022A92022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
92022B92022-1857 WASHER, 25.3X56X2.0WASHER, 25.3X56X2.0
-
9202692026-1263 SPACER, CLUTCH RELEASESPACER, CLUTCH RELEASE
-
92026A92026-1497 SPACERSPACER
-
9202892028-1934 BUSHINGBUSHING
-
9204692046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
92046A92046-1267 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-0086 SEAL-OILSEAL-OIL
-
9214492144-1084 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9214592145-0369 SPRING, JUDDERSPRING, JUDDER
-
92145A92145-0440 SPRING, 15X2.7SPRING, 15X2.7
-
9215092150-1477 BOLT, CLUTCHBOLT, CLUTCH
-
9215492154-1835 BOLT, FLANGED, 6X115BOLT, FLANGED, 6X115
-
92154A92154-1836 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9220092200-0830 WASHER, 124.3X133X1.6WASHER, 124.3X133X1.6
-
9221092210-0152 NUTNUT
