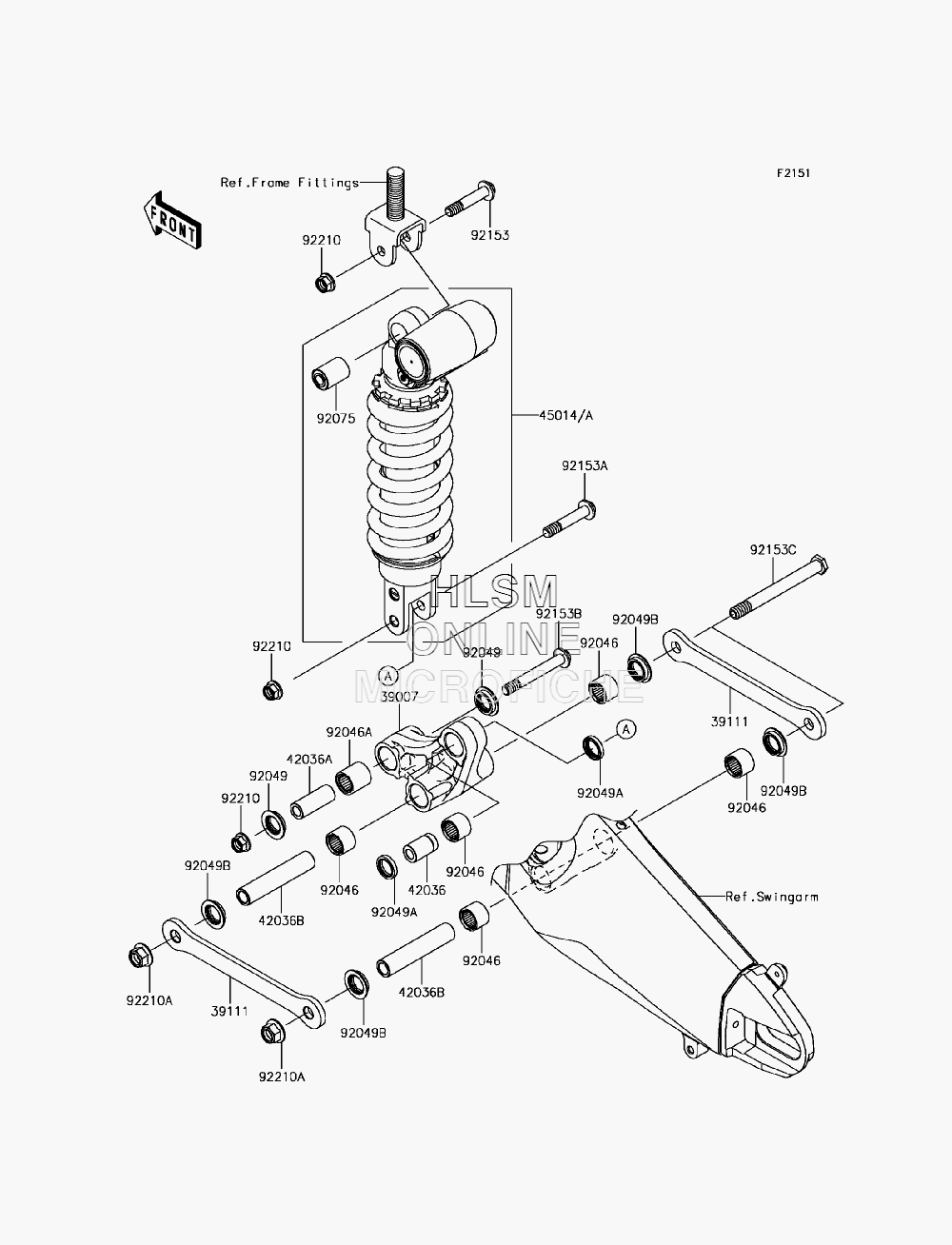

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA ZX-6R KRT EDITION (ZX636EGFA) - 2016 года выпуска
-
№АртикулНазвание
-
3900739007-0045 ARM-SUSP, UNI TRAKARM-SUSP, UNI TRAK
-
3911139111-0316 ROD-TIE, SUSPENSIONROD-TIE, SUSPENSION
-
4203642036-1258 SLEEVE, 10.1X18X30SLEEVE, 10.1X18X30
-
42036A42036-1342 SLEEVE, 10.1X17X44.5SLEEVE, 10.1X17X44.5
-
42036B42036-1360 SLEEVE, 12.1X18X90SLEEVE, 12.1X18X90
-
45014A45014-0393-52E SHOCKABSORBER, (BLACK) + (BLACK)SHOCKABSORBER, (BLACK) + (BLACK)
-
9204692046-1272 BEARING-NEEDLE, SFYZM182417BEARING-NEEDLE, SFYZM182417
-
92046A92046-1273 BEARING-NEEDLE, SFYZM172425BEARING-NEEDLE, SFYZM172425
-
9204992049-1223 SEAL-OIL, MHA17245.7FSEAL-OIL, MHA17245.7F
-
92049A92049-1225 SEAL-OIL, MHA18244SEAL-OIL, MHA18244
-
92049B92049-1493 SEAL-OIL, KCR MF018N1SEAL-OIL, KCR MF018N1
-
9207592075-1426 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9215392153-1545 BOLT, FLANGED, 10X51BOLT, FLANGED, 10X51
-
92153A92153-1546 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
92153B92153-1547 BOLT, FLANGED, 10X77BOLT, FLANGED, 10X77
-
92153C92153-1662 BOLT, 12X114BOLT, 12X114
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
