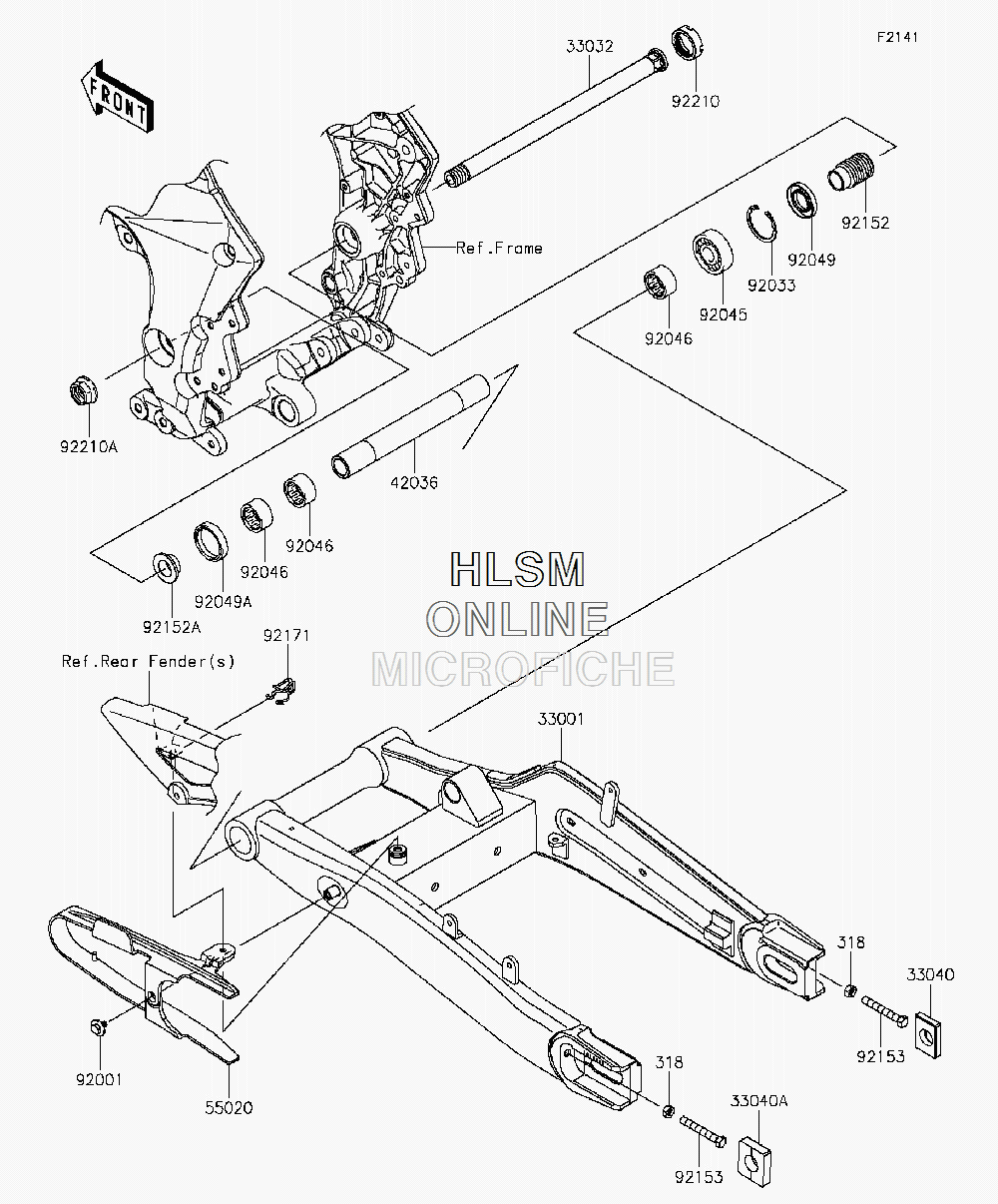

SUSPENSION - SWINGARM для Kawasaki VERSYS 1000 LT (KLZ1000BGFAS) - 2016 года выпуска
-
№АртикулНазвание
-
318318AA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3300133001-0635-18R ARM-COMP-SWING, (F.S.BLACK) (FOR ALL COLORS)ARM-COMP-SWING, (F.S.BLACK) (FOR ALL COLORS)
-
3303233032-0044 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0040 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040A33040-1109 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
4203642036-0069 SLEEVE, 20.1X28X226SLEEVE, 20.1X28X226
-
5502055020-0903 GUARD, CHAINGUARD, CHAIN
-
9200192001-1771 BOLT, 6X12BOLT, 6X12
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
9204992049-1314 SEAL-OIL, MHSA25X42X6SEAL-OIL, MHSA25X42X6
-
92049A92049-1352 SEAL-OIL, MHSA25X34X7SEAL-OIL, MHSA25X34X7
-
9215292152-0154 COLLAR, SWING ARM, L=47COLLAR, SWING ARM, L=47
-
92152A92152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9215392153-1407 BOLT, 8X55BOLT, 8X55
-
9217192171-0907 CLAMPCLAMP
-
9221092210-0134 NUT, 30MMNUT, 30MM
-
92210A92210-0320 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
