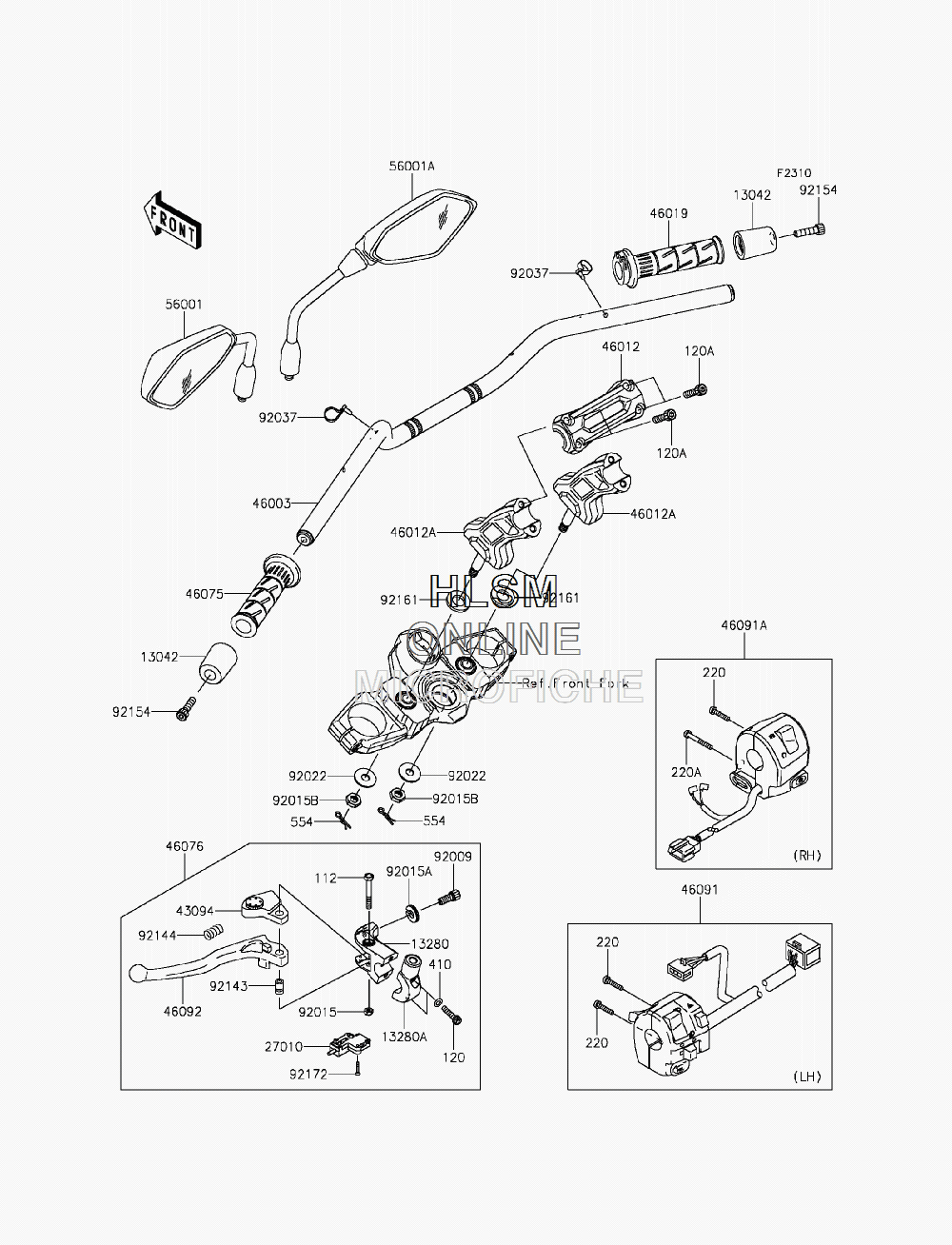

HANDLEBAR для Kawasaki VERSYS 650 LT (KLE650FGFAS) - 2016 года выпуска
-
№АртикулНазвание
-
112112BB0645 BOLT-UPSET, 6X45BOLT-UPSET, 6X45
-
120120CB0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
120A120CC0830 BOLT-SOCKET, 8X30BOLT-SOCKET, 8X30
-
220220AB0525 SCREW-PAN-CROS, 5X25SCREW-PAN-CROS, 5X25
-
220A220AB0540 SCREW-PAN-CROS, 5X40SCREW-PAN-CROS, 5X40
-
410410AB0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
554554DB0800 PIN-SNAPPIN-SNAP
-
1304213042-5002 WEIGHT, HANDLEWEIGHT, HANDLE
-
1328013280-0306 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
13280A13280-0307 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1094 SWITCH, CLUTCH, BLACKSWITCH, CLUTCH, BLACK
-
4309443094-0556 ADJUSTER, CLUTCH LEVERADJUSTER, CLUTCH LEVER
-
4600346003-0624-18R HANDLE, F.S.BLACKHANDLE, F.S.BLACK
-
4601246012-0348-18R HOLDER-HANDLE, UPPER, F.S.BLACKHOLDER-HANDLE, UPPER, F.S.BLACK
-
46012A46012-0349-18R HOLDER-HANDLE, LOWER, F.S.BLACKHOLDER-HANDLE, LOWER, F.S.BLACK
-
4601946019-0060 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0564 GRIP, HANDLE, LEFT HANDGRIP, HANDLE, LEFT HAND
-
4607646076-0081 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0214 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
46091A46091-0246 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
4609246092-0031 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
5600156001-0194 MIREAROR-ASSY, LEFT HANDMIREAROR-ASSY, LEFT HAND
-
56001A56001-0195 MIREAROR-ASSY, RIGHT HANDMIREAROR-ASSY, RIGHT HAND
-
9200992009-1134 SCREW, CABLE ADJUST, 8MM, BLACKSCREW, CABLE ADJUST, 8MM, BLACK
-
9201592015-1191 NUT, LOCK, 6MM, BLACKNUT, LOCK, 6MM, BLACK
-
92015A92015-1197 NUT, CABLE ADJUST LOCK, 8MM, BLKNUT, CABLE ADJUST LOCK, 8MM, BLK
-
92015B92015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9214392143-1379 COLLARCOLLAR
-
9214492144-1467 SPRINGSPRING
-
9215492154-0440 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9216192161-1659 DAMPER, 16.2X30X4DAMPER, 16.2X30X4
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
