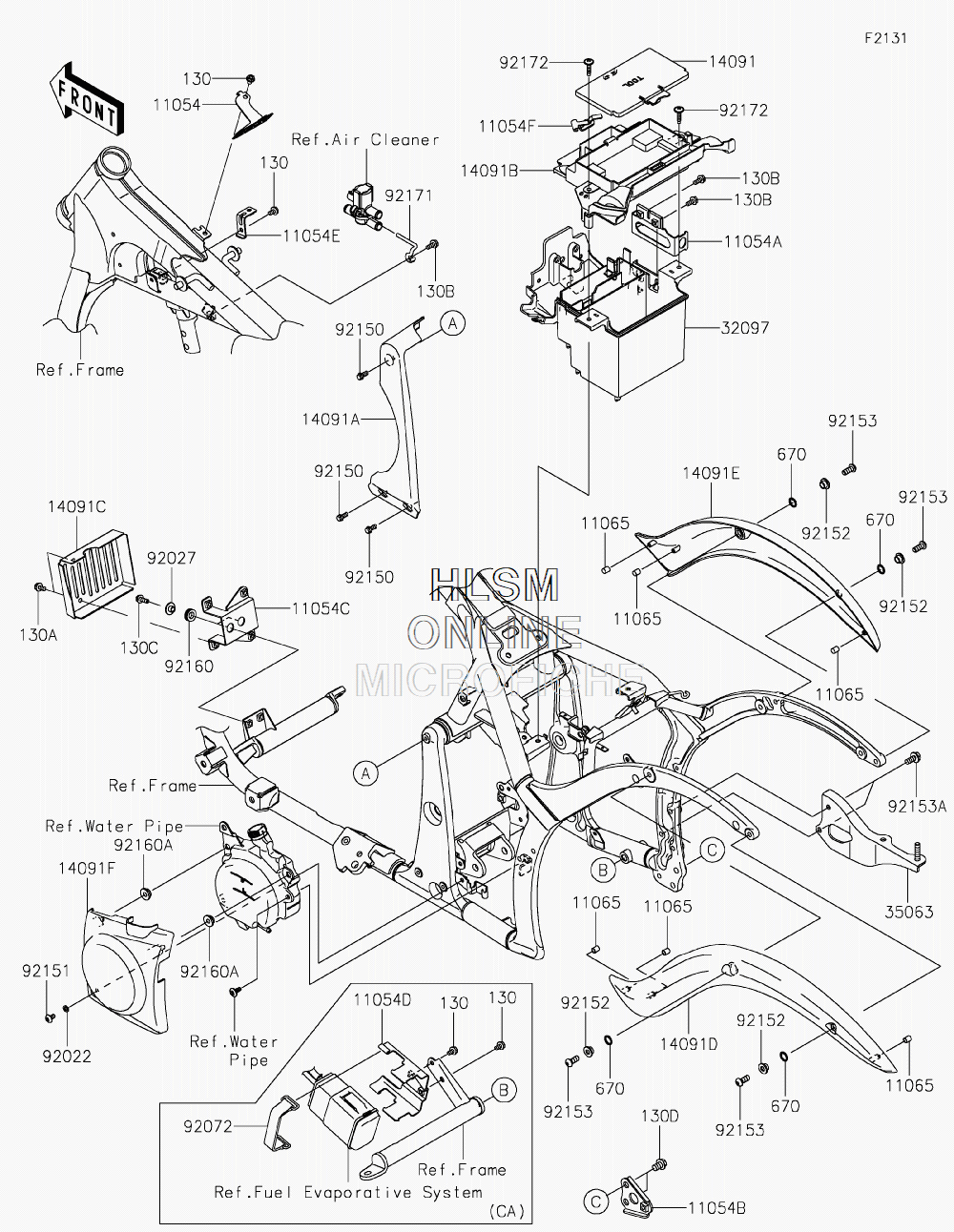

FRAME FITTINGS для Kawasaki VULCAN 900 CUSTOM (VN900CGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105411054-0119 BRACKET, FRONT COUPLERBRACKET, FRONT COUPLER
-
11054A11054-0120 BRACKET, RELAY BOXBRACKET, RELAY BOX
-
11054B11054-0122 BRACKET, MUFFLERBRACKET, MUFFLER
-
11054C11054-0124 BRACKET, REGULATORBRACKET, REGULATOR
-
11054D11054-0147 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
11054E11054-0736 BRACKET, BOOST SENSORBRACKET, BOOST SENSOR
-
11054F11054-0738 BRACKET, HELMET LOCKBRACKET, HELMET LOCK
-
1106511065-0156 CAPCAP
-
130130BB0610 BOLT-FLANGED, 6X10 (CALIF. ONLY)BOLT-FLANGED, 6X10 (CALIF. ONLY)
-
130130BB0610 BOLT-FLANGED, 6X10 (EXCEPT CALIF.)BOLT-FLANGED, 6X10 (EXCEPT CALIF.)
-
130A130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130C130BB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130D130BB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
1409114091-0520 COVER, TOOL CASECOVER, TOOL CASE
-
14091A14091-0526 COVER, PIVOTCOVER, PIVOT
-
14091B14091-0733 COVER, BATTERY CASE & TOOL CASECOVER, BATTERY CASE & TOOL CASE
-
14091C14091-0836 COVER, REGULATORCOVER, REGULATOR
-
14091D14091-1728 COVER, FENDER, LEFT HANDCOVER, FENDER, LEFT HAND
-
14091E14091-1729 COVER, FENDER, RIGHT HANDCOVER, FENDER, RIGHT HAND
-
14091F14091-1772 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3209732097-0021 CASE-BATTERYCASE-BATTERY
-
3506335063-0342-18R STAY, MUFFLER, (F.S.BLACK)STAY, MUFFLER, (F.S.BLACK)
-
670670B2012 O RING, 12MMO RING, 12MM
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202792027-1848 COLLAR, L=7.4COLLAR, L=7.4
-
9207292072-1384 BAND (CALIF. ONLY)BAND (CALIF. ONLY)
-
9215092150-1689 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9215192151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215292152-0381 COLLARCOLLAR
-
9215392153-0912 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92153A92153-1704 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
9216092160-1278 DAMPERDAMPER
-
92160A92160-1613 DAMPERDAMPER
-
9217192171-0600 CLAMPCLAMP
-
9217292172-0137 SCREW, 6X26SCREW, 6X26
