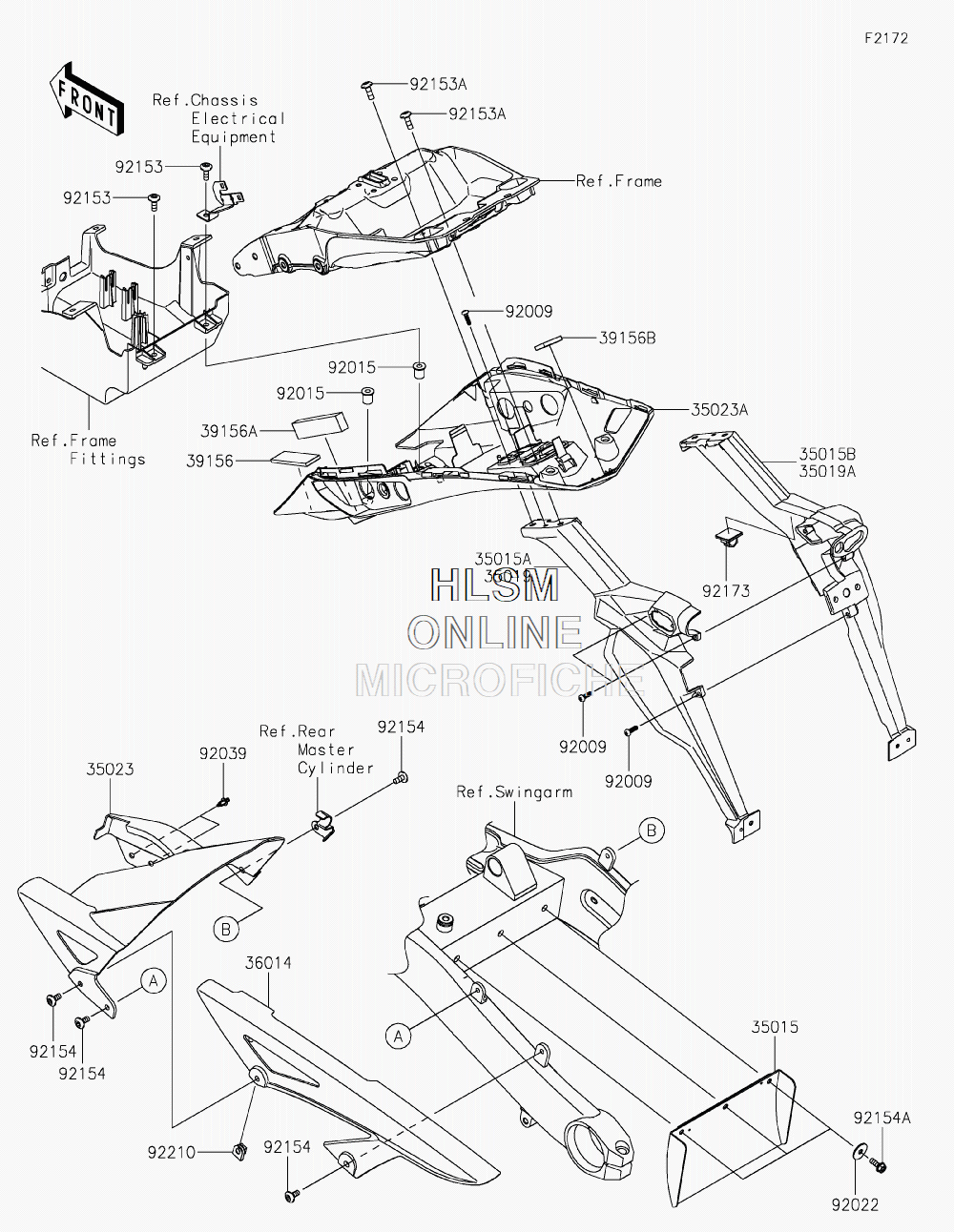

FENDER - REAR для Kawasaki NINJA 1000 ABS (ZX1000WHF) - 2017 года выпуска
-
№АртикулНазвание
-
3501535015-0032 FLAP-COMPFLAP-COMP
-
35015A35015-0038 FLAP-COMP, REAR, LEFT HANDFLAP-COMP, REAR, LEFT HAND
-
35015B35015-0039 FLAP-COMP, REAR, RIGHT HANDFLAP-COMP, REAR, RIGHT HAND
-
3502335023-0424 FENDER-REAR, INNERFENDER-REAR, INNER
-
35023A35023-0426 FENDER-REARFENDER-REAR
-
3601436014-0029 CASE-CHAINCASE-CHAIN
-
3915639156-0748 PAD, 25X70X4PAD, 25X70X4
-
39156A39156-1821 PAD, 12X95X22PAD, 12X95X22
-
39156B39156-2178 PAD, 20X30X5PAD, 20X30X5
-
9200992009-1984 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9201592015-1700 NUTNUT
-
9202292022-1160 WASHER, 7X24X1.6WASHER, 7X24X1.6
-
9203992039-0060 RIVETRIVET
-
9215392153-0816 BOLT, 6X18BOLT, 6X18
-
92153A92153-1675 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9215492154-0745 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154A92154-0899 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217392173-1055 CLAMP, DRAINCLAMP, DRAIN
-
9221092210-0277 NUT, 6MMNUT, 6MM
