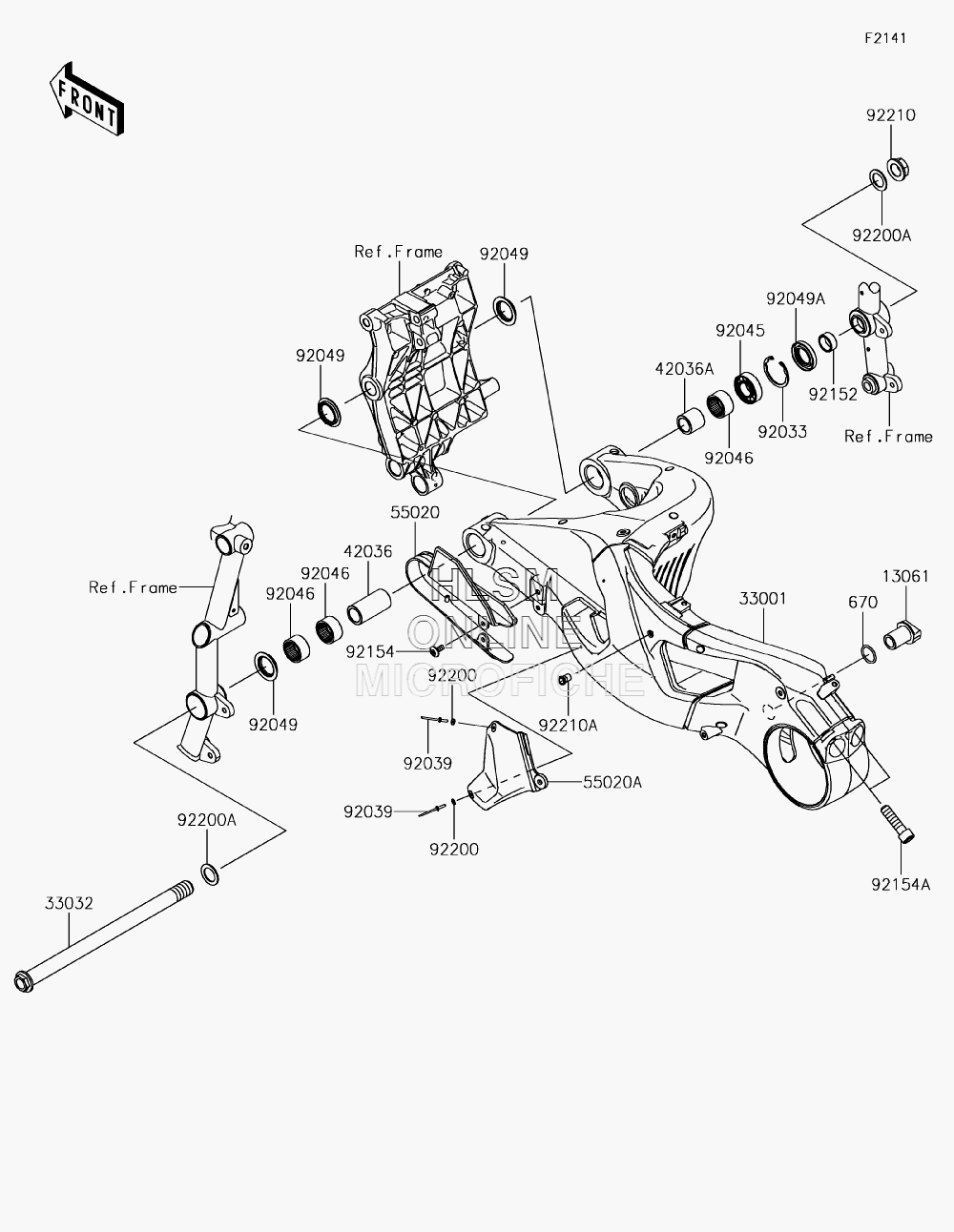

SUSPENSION - SWINGARM для Kawasaki NINJA H2 CARBON (ZX1000XHFA) - 2017 года выпуска
-
№АртикулНазвание
-
1306113061-0744 BOSS, CALIPER HOLDERBOSS, CALIPER HOLDER
-
3300133001-0661-46R ARM-COMP-SWING, (M.F.S.BLACK)ARM-COMP-SWING, (M.F.S.BLACK)
-
3303233032-0049 SHAFT-SWINGARM, 20X313SHAFT-SWINGARM, 20X313
-
4203642036-0757 SLEEVE, 20.1X28X56.5SLEEVE, 20.1X28X56.5
-
42036A42036-0762 SLEEVE, 20.1X28X25.7SLEEVE, 20.1X28X25.7
-
5502055020-1841 GUARD, CHAIN SLIDERGUARD, CHAIN SLIDER
-
55020A55020-1853 GUARD, SWINGARM, HEELGUARD, SWINGARM, HEEL
-
670670B2022 O RING, 22MMO RING, 22MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9203992039-1231 RIVETRIVET
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
9204992049-1181 SEAL-OIL, 28X34X5.7SEAL-OIL, 28X34X5.7
-
92049A92049-1314 SEAL-OIL, MHSA25X42X6SEAL-OIL, MHSA25X42X6
-
9215292152-1948 COLLAR, 20.2X25X10.5COLLAR, 20.2X25X10.5
-
9215492154-1025 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154A92154-1552 BOLT, SOCKET, 12X45BOLT, SOCKET, 12X45
-
9220092200-1677 WASHER, 3.2X8X1WASHER, 3.2X8X1
-
92200A92200-1791 WASHER, 20.5X31X1.5WASHER, 20.5X31X1.5
-
9221092210-0320 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92210A92210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
